This kit will provide you the following functions -

12V LEISURE BATTERY CHARGING

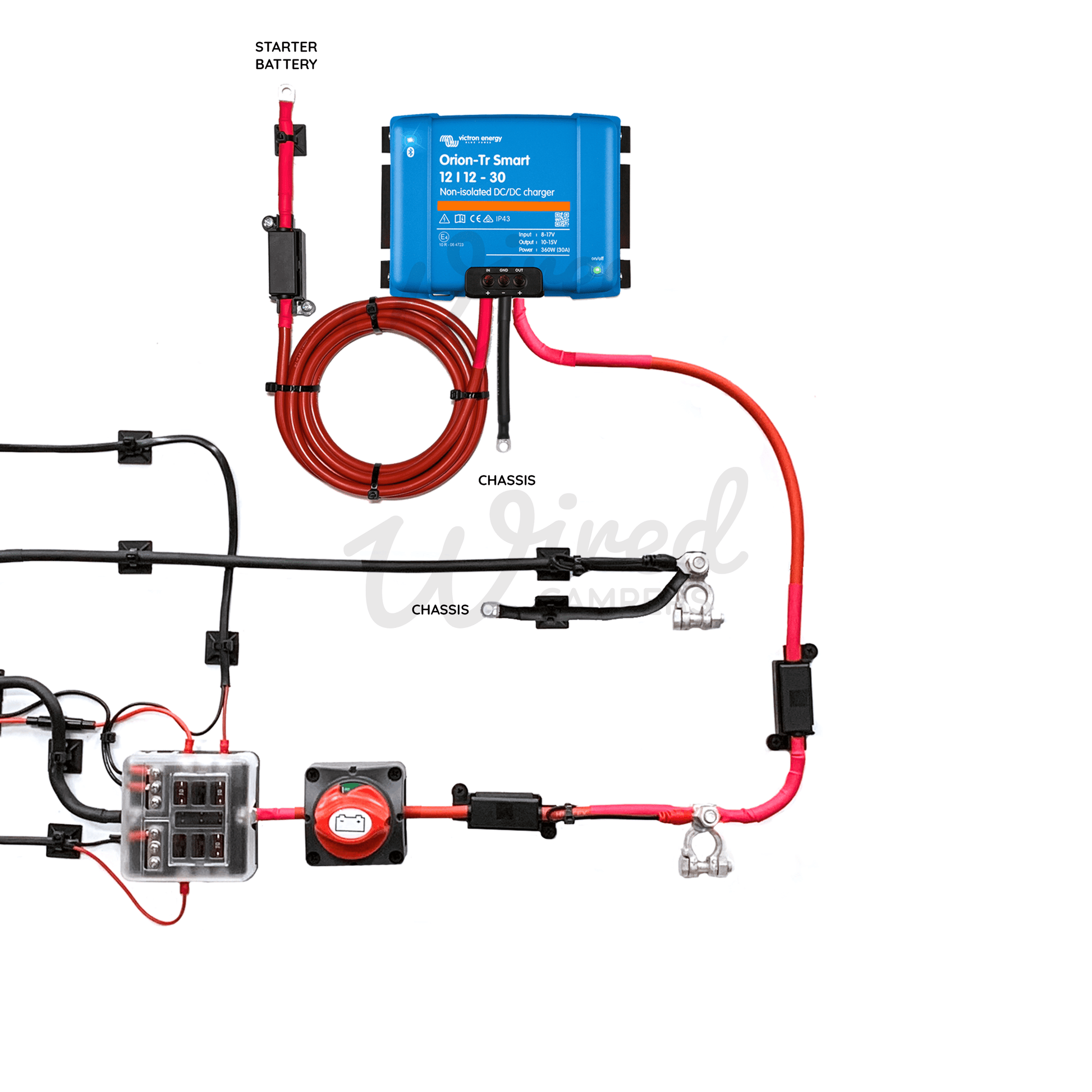

Victron Energy Orion-Tr Smart DC-DC 12/12-30A DC-DC Non-Isolated Charger (360W)

For use in dual battery systems in vehicles where the alternator and the starter battery are used to charge the leisure battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion-Tr Smart charger is suitable for both lead acid and lithium batteries.

12V 6 WAY FUSE BOX, FUSE & ISOLATOR

This is the central hub for the distribution of 12V power. This runs from your leisure battery via a fuse and isolator.

Isolator Technical Details

• 200A Continuous current
• 1000A Peak current (5 seconds)
• 10mm Terminals
• Four removable side panels for easy cable entry
• Mounting bolts and locking nuts
• Removable key for additional safety

Fuse Box Technical Details

• Built in negative bus bar
• LED function on each output that will illuminate to show any blown fuses
• Numerous labels for easy identification of outputs
• Complete with 6 fuses (2 X 5A, 2 X 10A, 2 X 15A)
• Mounting screws

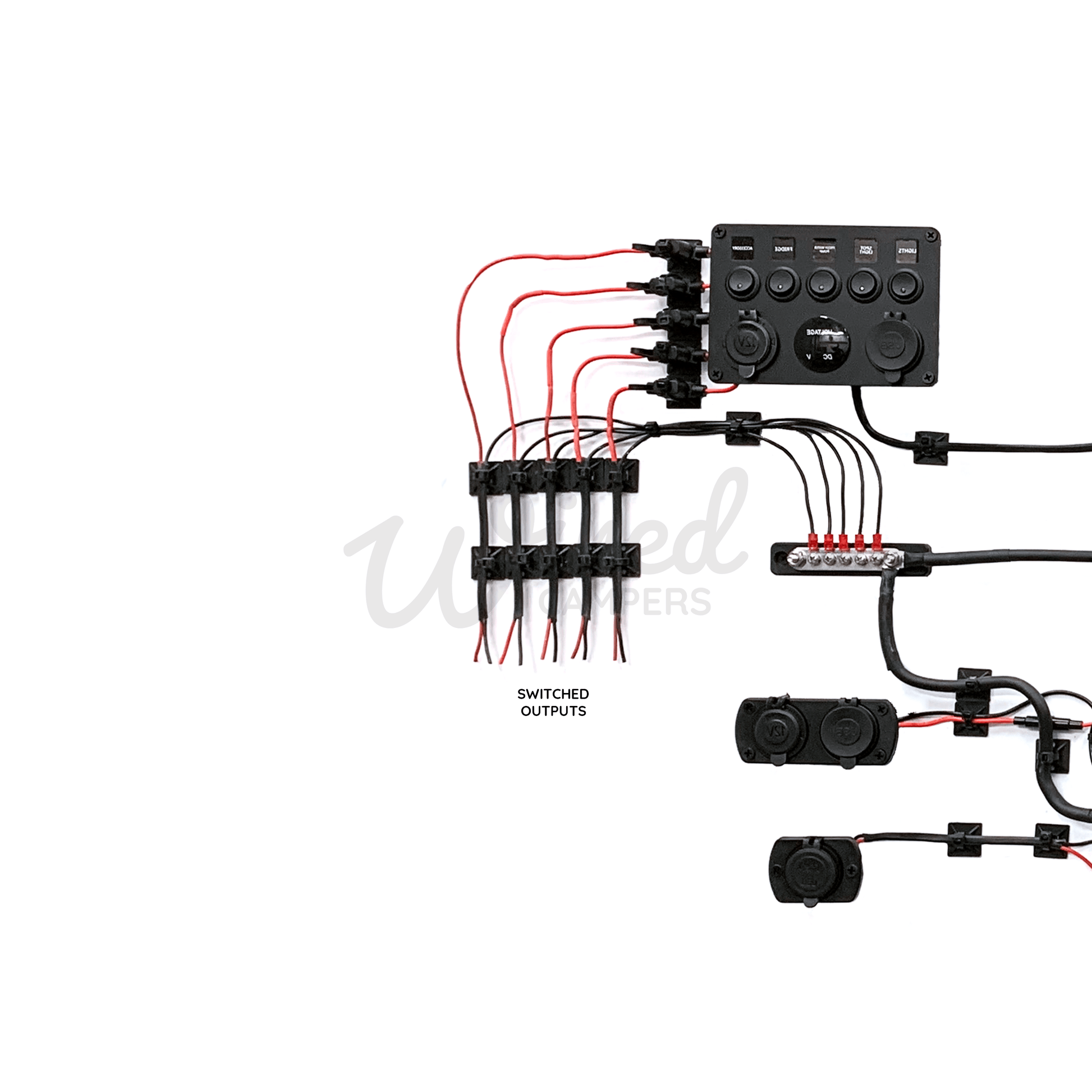

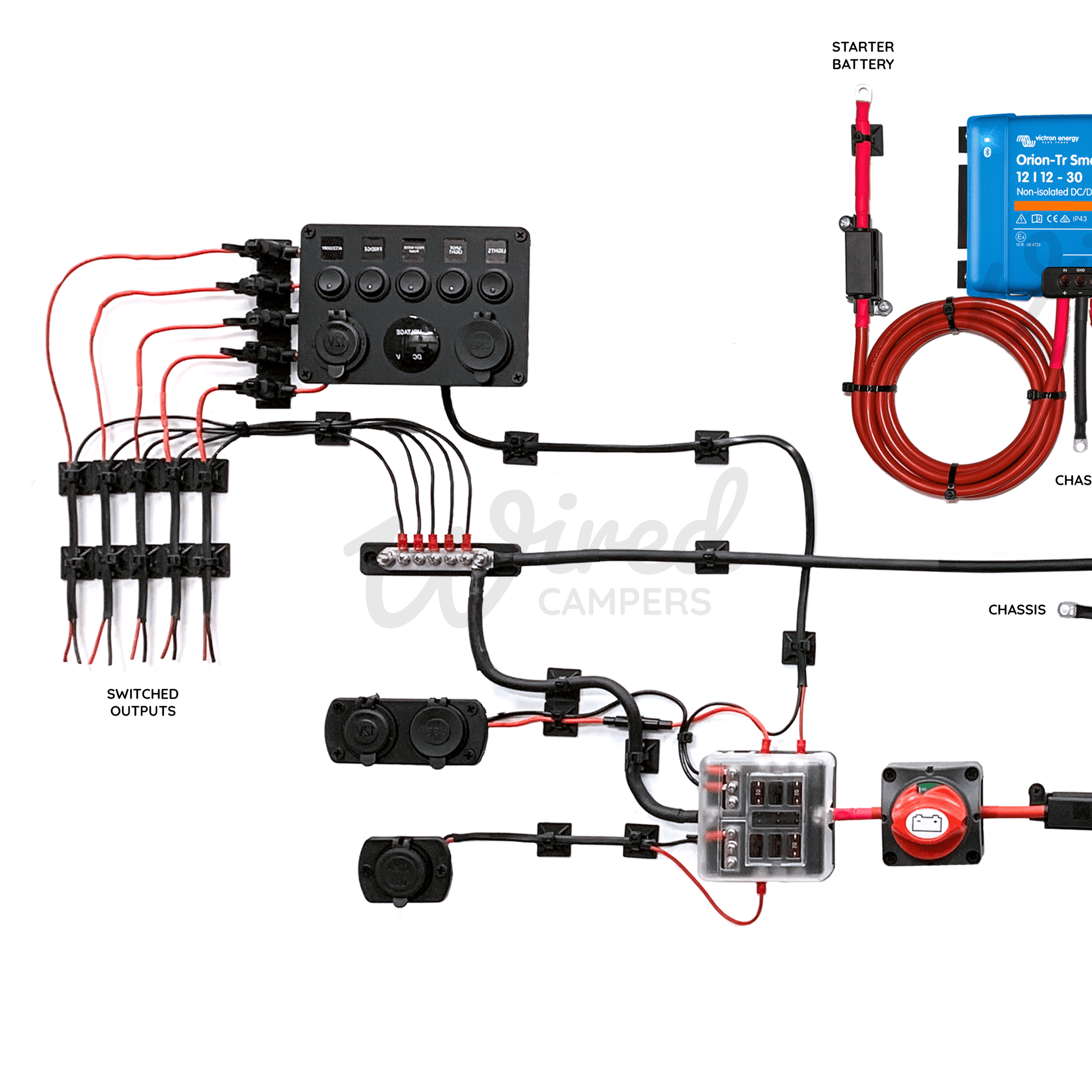

12V MAIN CONTROL PANEL & BUS BAR

This is the main control panel in the van, fed from one of the outlets on the 6 way fuse box. This unit comes with a voltmeter, USB port and a 12V port. The panel has five switched fused outlets to feed the other 12v items in your van such as your lighting, water pump. fridge etc.

There is also a 5 way negative bus bar provided, so you can terminate all negatives to this point from the control panel.

Panel Technical Details

• Pre-wired for quick fitting
• 5 gang independent switches complete with in-line fuse holders with fuses
• Dual 2.1A USB Charger
• Voltmeter
• 12V Power socket
• Blue LED

Bus Bar Technical Details

• Max - 100A 48V
• Number of screw terminals - 5
• Number of studs - 2

12V MINI PANEL

Again, powered from the 6 way fuse box, this small panel is great for installing in the bed area of your van as it doesn't take up too much space and its ideal for charging a phone or tablet.

Technical Details

• Quick Charge Dual 2.4A USB Chargers
• 12V Power socket
• Fitting Screws
• Terminated cables with an in-line fuse
• Blue LED

12V QUICK CHARGE PORT

Similar to the other two units, this is also powered from the fuse box, but this one is your high powered quick charge USB C (PD) & USB A port, suitable for charging large capacity devices.

Technical Details

• Built in ON/OFF switch to conserve power
• USB Type A Quick Charge 3.0 Port
• USB Type C PD Port
• 5V - 3A / 9V - 2A / 12V - 1.5A
• Blue LED

Additional Items

• Set of high quality battery terminals with PVC covers.
• All fuses, crimps and heatshrink needed to complete the installation
• 100 cable tie bases
• 100 cable ties

CABLING

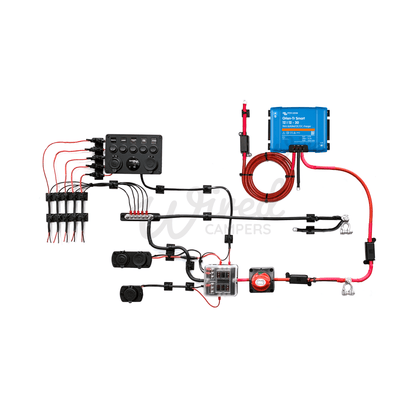

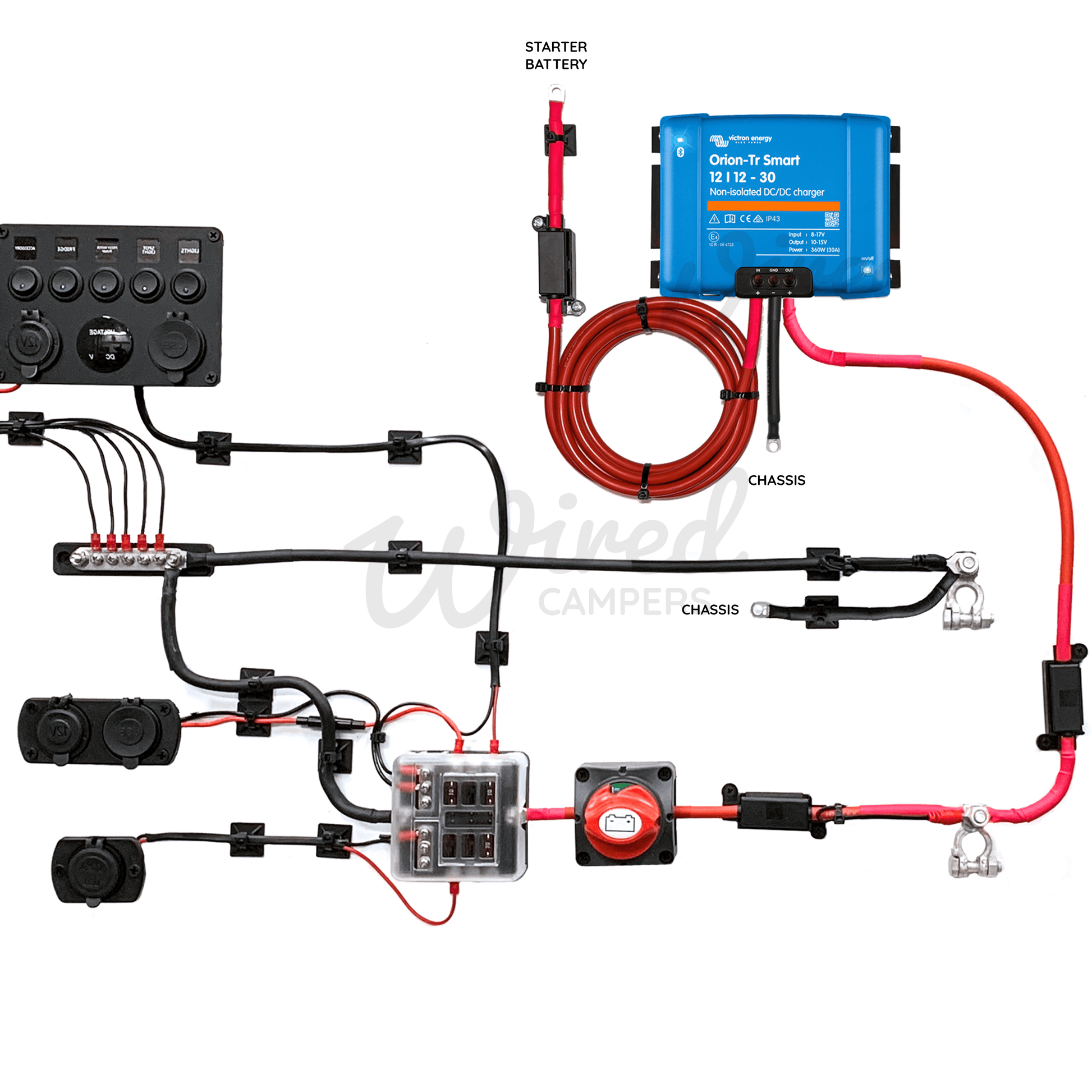

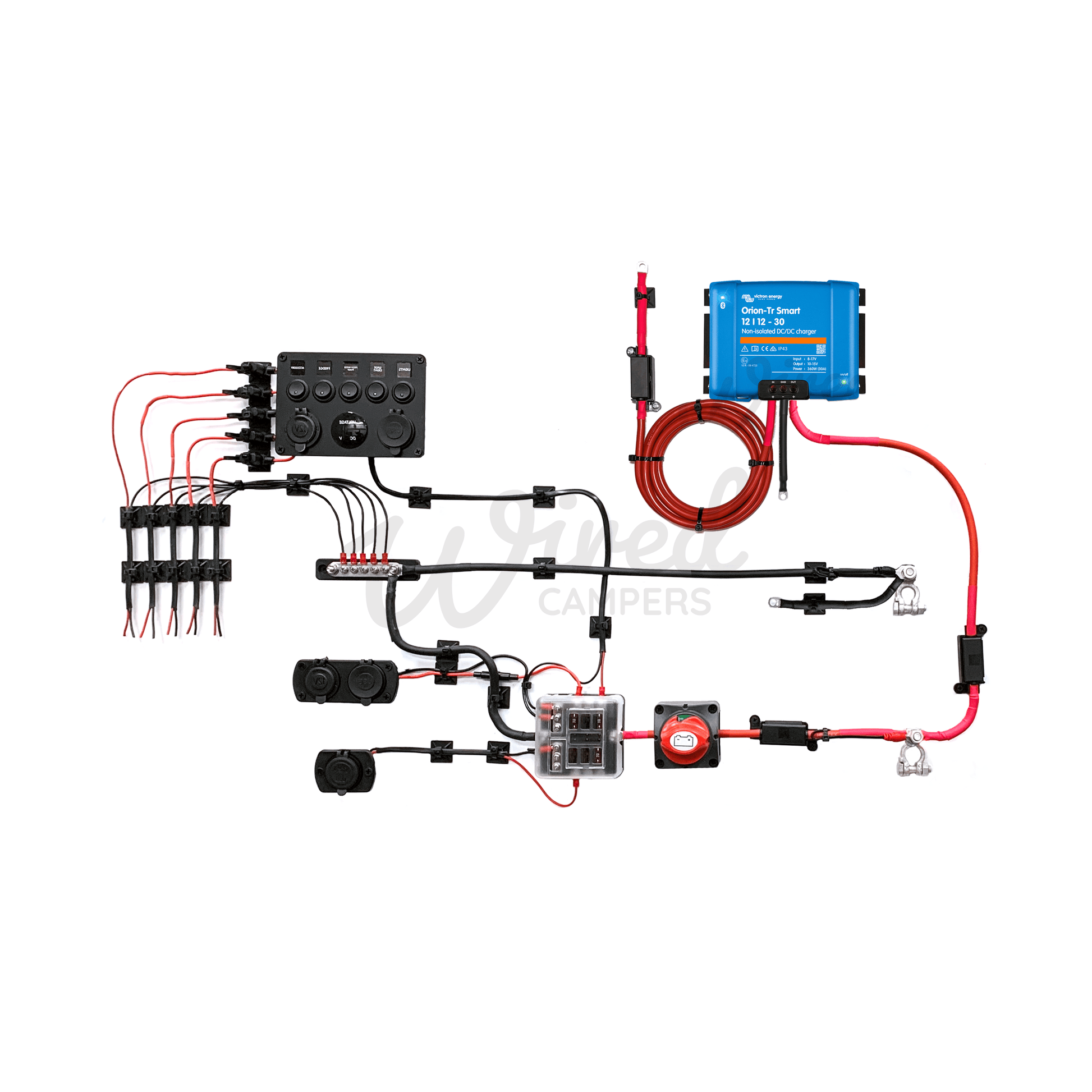

We will provide adequate lengths of cable to complete the installation as seen on the screen, the lengths provided are suitable for most camper installations, but if you need anymore, this is all available to buy on our website.

For use to wire both the input and output of the Orion DC-DC charger and the cabling to the 12V fuse boxes, bus bar and isolator -

• 16mm² Red Positive Hi Flex - 10M
• 16mm² Black Negative Hi Flex - 10M

For use to wire from the fuse box to your 12V accessories -

• 2.0mm² Twin core automotive thin wall cable - 1 X 30M


ADDITIONAL IMPORTANT INFORMATION

As with all the kits and layouts provided on our site, they serve as a guide only and we recommend all wiring and installation is carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.

Please note, this is in kit form so will require assembly (crimping/cutting cables).
