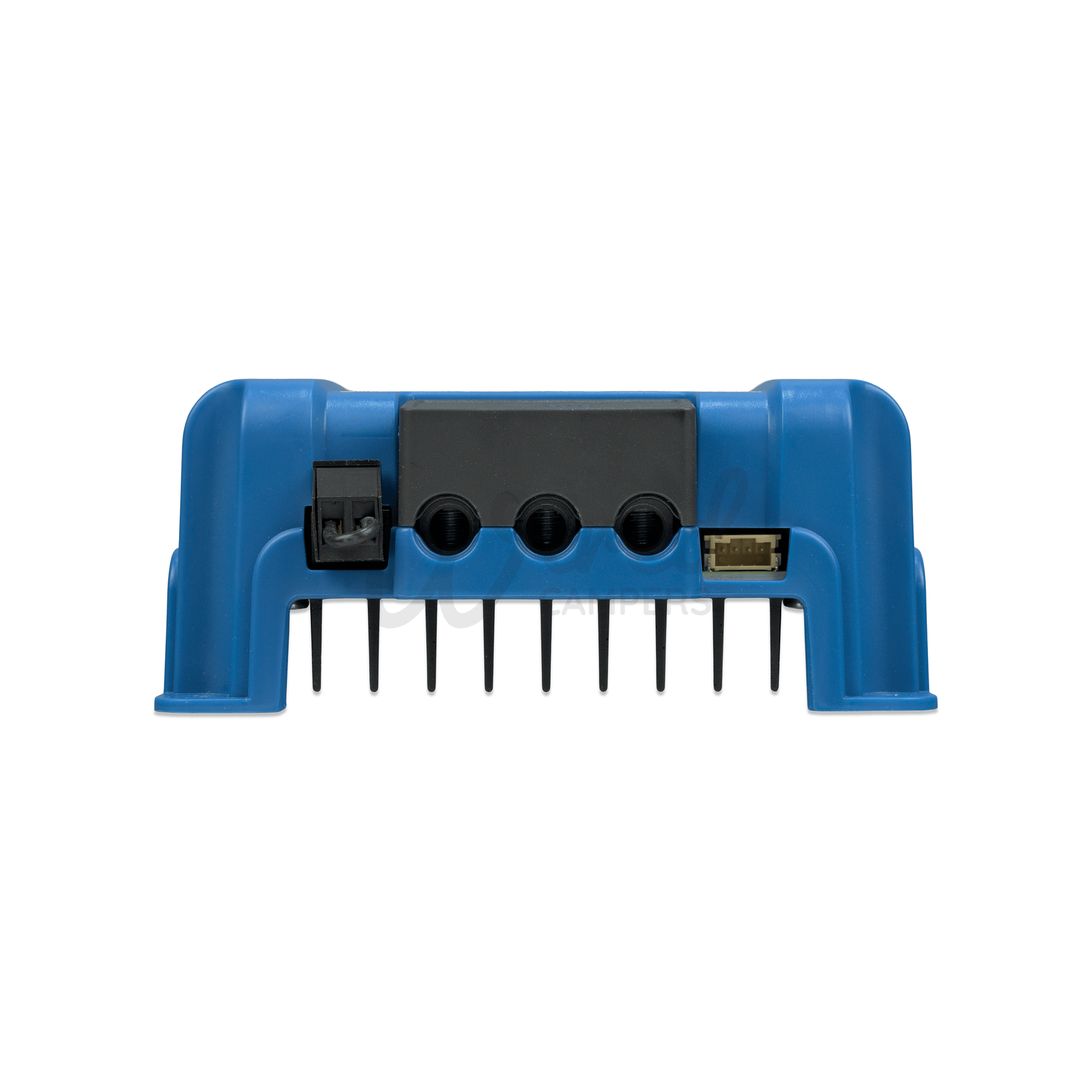

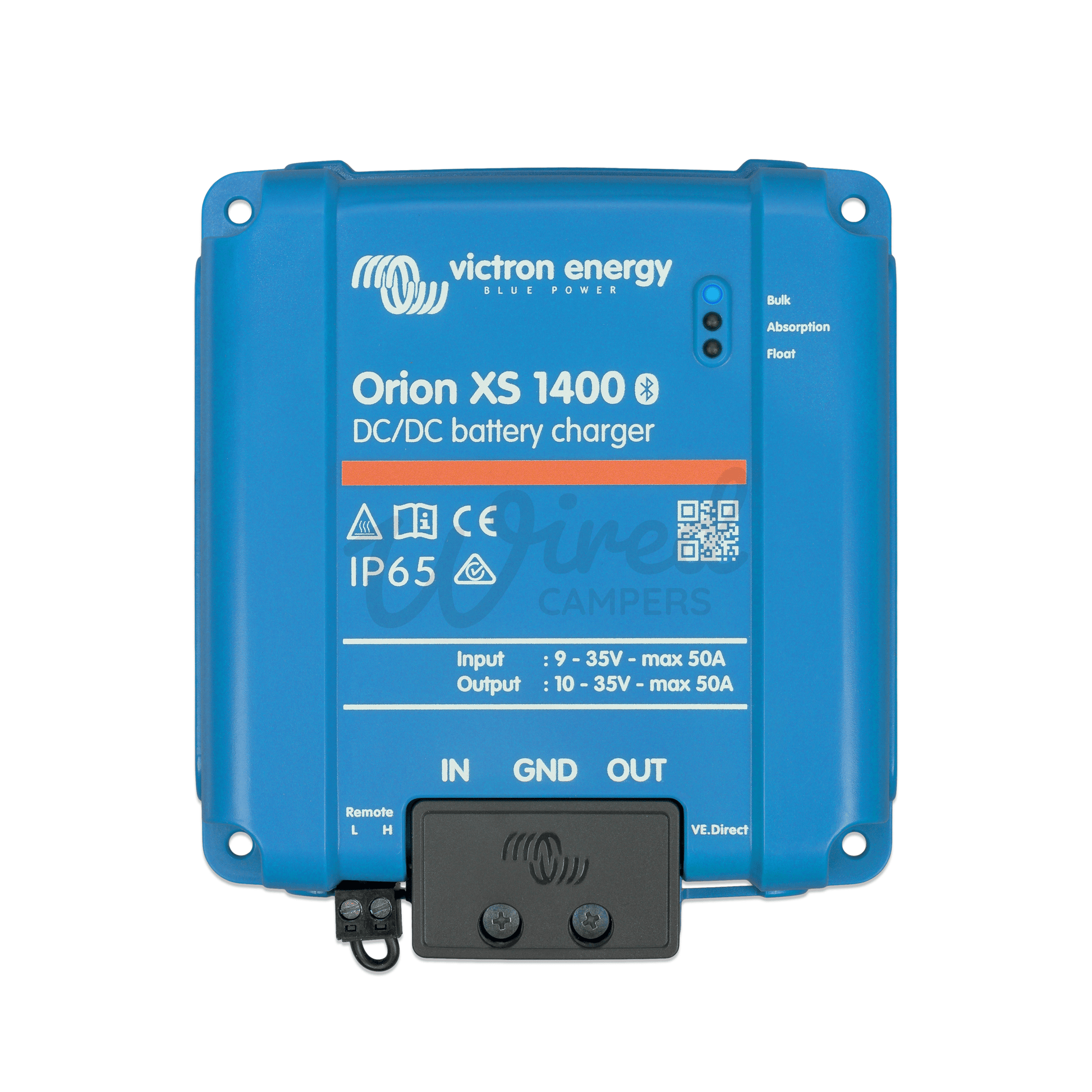

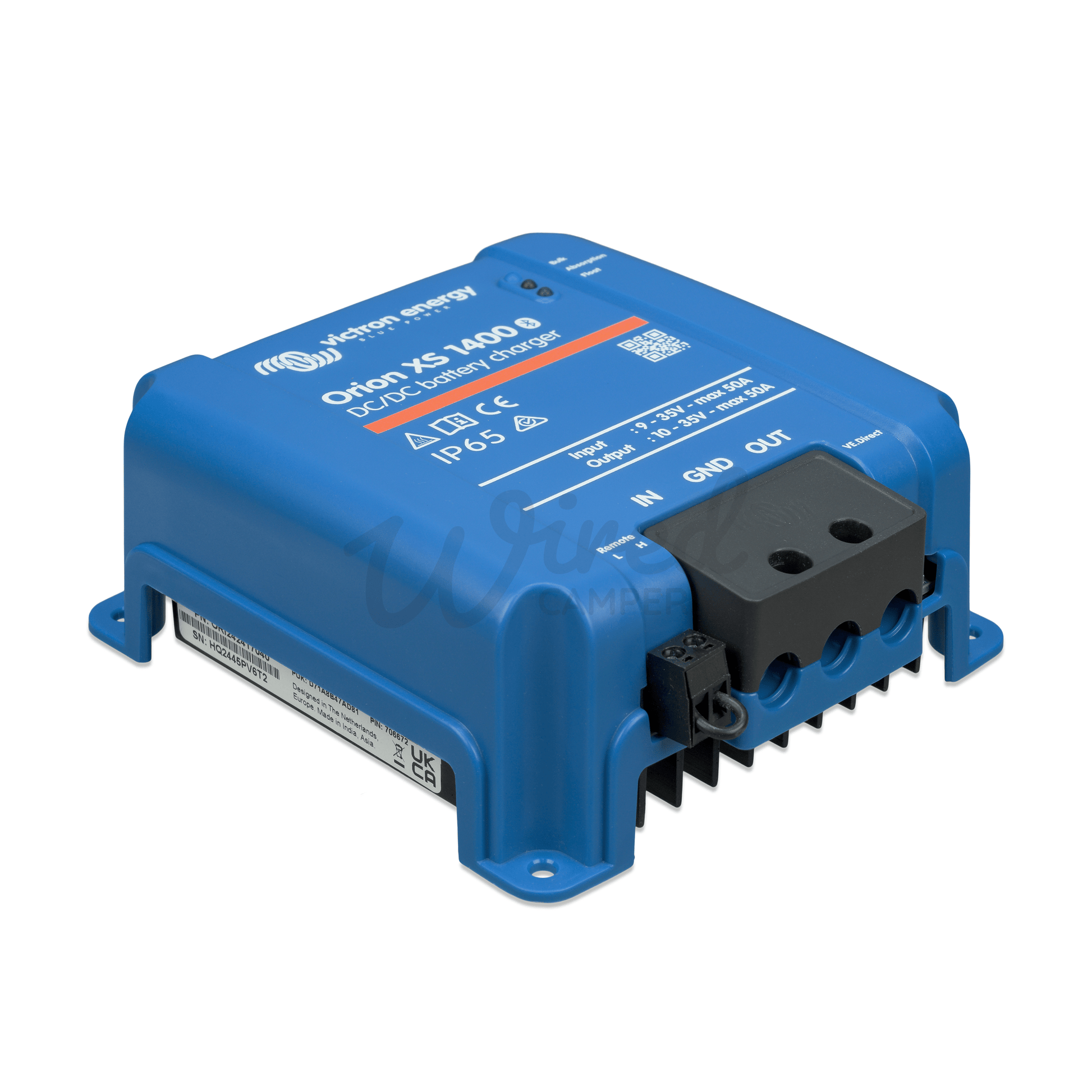

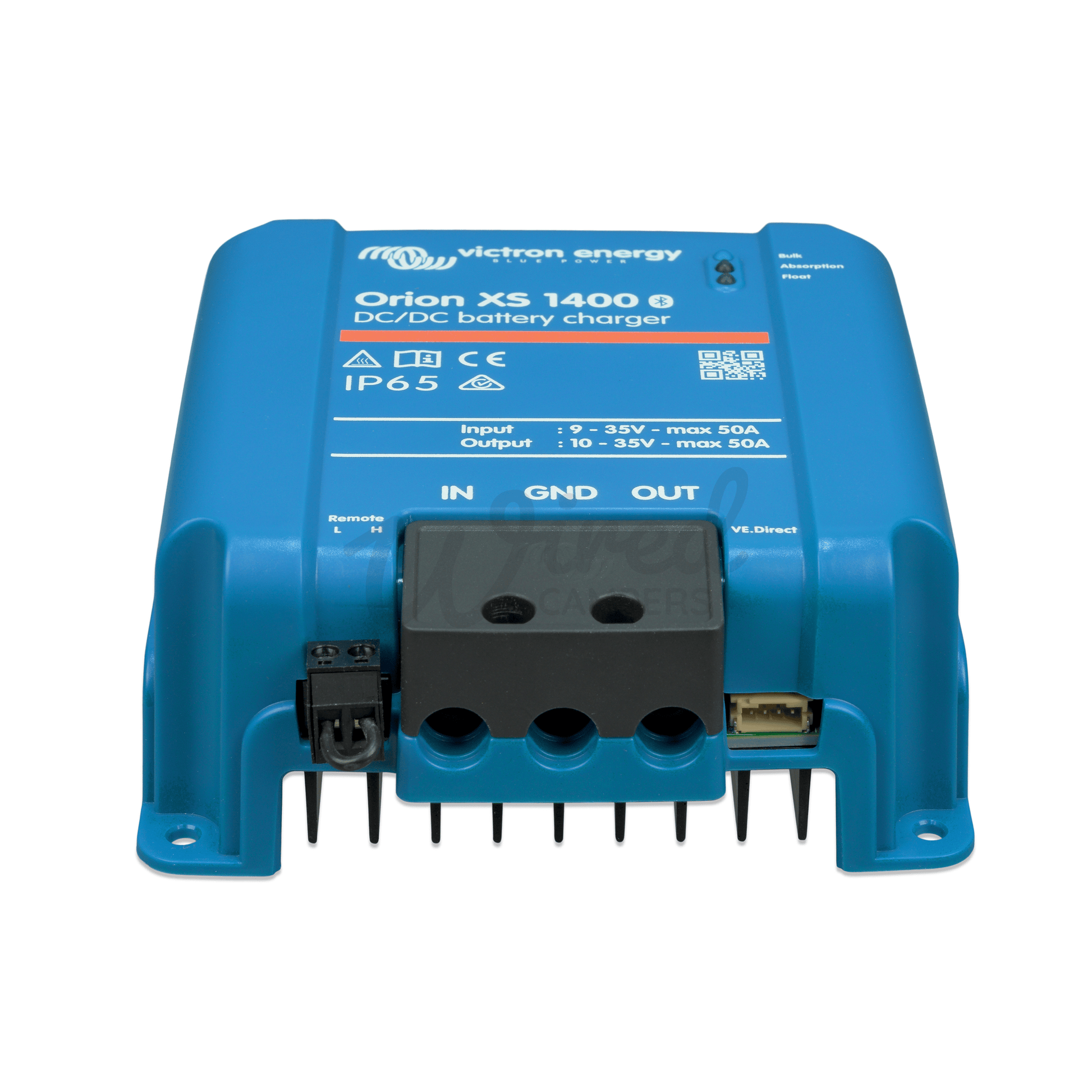

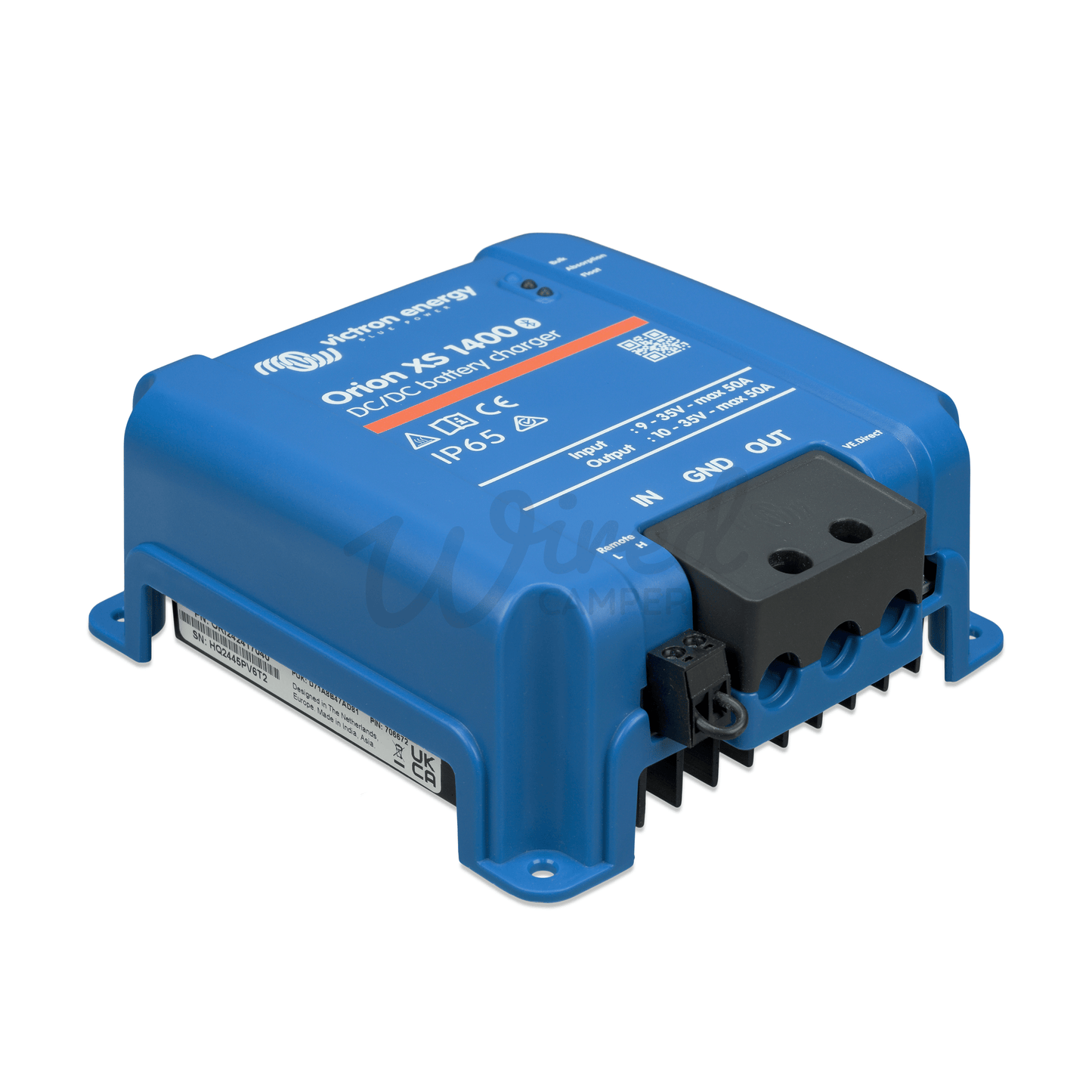

Using engine power to charge your service battery, the Orion XS DC-DC charger combines impressive power with an ultra-compact, fanless design. With this 12V/24V mixed-voltage model, it's ideal for dual-battery setups and doubles as a DC-to-DC converter for sensitive electronics.

Small Design

The Orion XS is the most compact, high‑power DC‑DC charger available, delivering up to 98.5 % charging efficiency. Its robust, fanless design stays cool while maintaining full rated output, even in hot, cramped compartments.

Configurable Voltage & Current

Input current can be precisely limited to prevent alternator overload. Charging voltage is fully configurable to match lithium, AGM, Gel, and other battery chemistries. For mixed-voltage systems, the Orion XS 1400 also provides 12V to 24V or 24V to 12V conversion.F

Full Rated Power

The Orion XS uses a re-engineered aluminum circuit board that also acts as a heat sink, combined with more efficient components to reduce power loss. Its fanless design delivers full output - 1,400W for the 1400—up to 40°C (104°F) before any thermal derating occurs.

Parallel Operation For Higher Output

Need more charging power? Connect multiple Orion XS units in parallel to increase output current for larger battery banks or higher-demand applications. This flexible setup makes it easy to expand the charging capacity as demand grows.

Smarter Charging Through Data Sharing

VE.Smart Networking allows wireless data sharing with other Victron devices for accurate voltage and temperature compensation. The other option is to connect a communication centre to the VE.Direct port and access DVCC: Victron’s system-wide control feature for coordinated battery charging and discharging.

• Dimensions - 138.1 X 124.4 X 53MM
• Model Number - ORI242417040
• GTIN - 8719076064848
