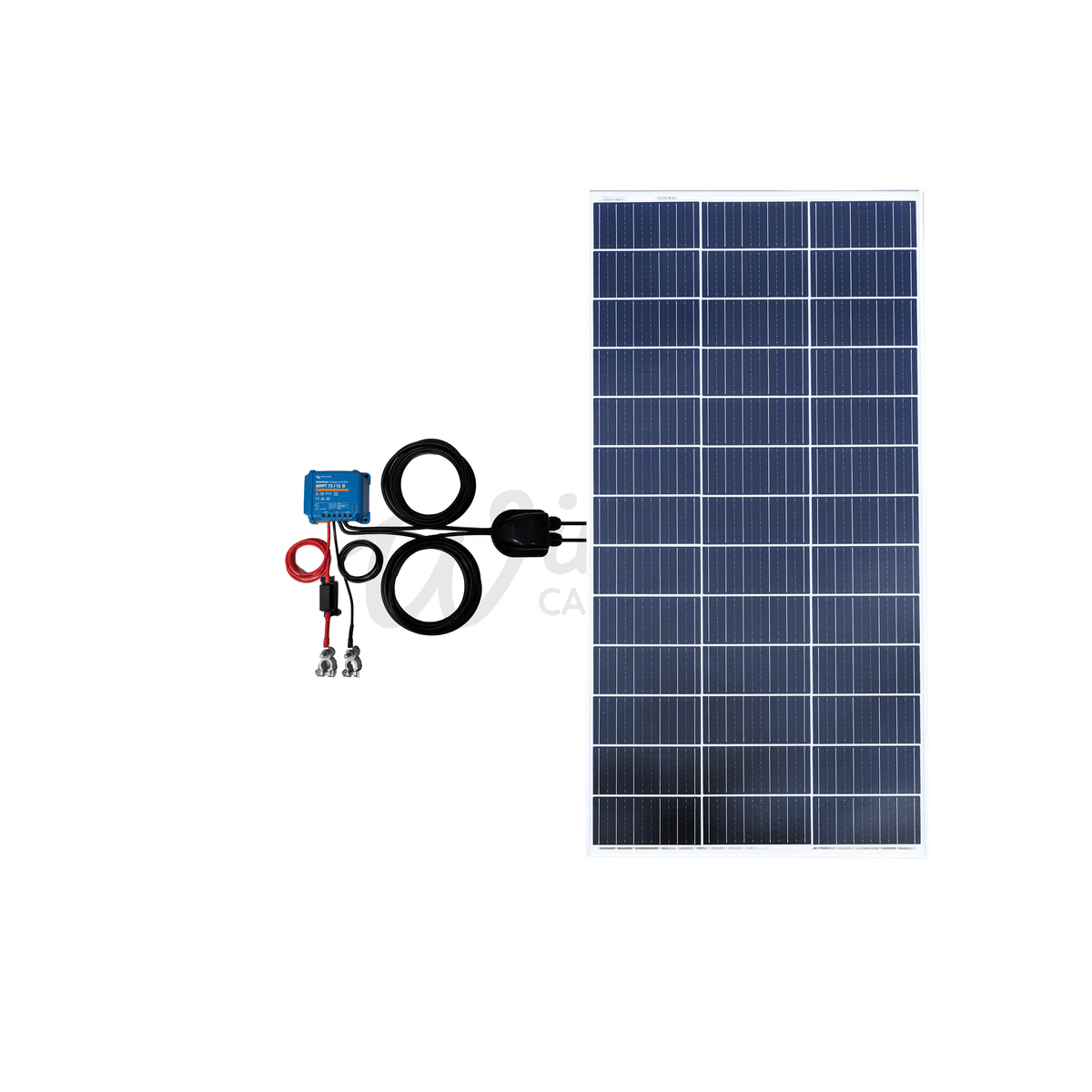

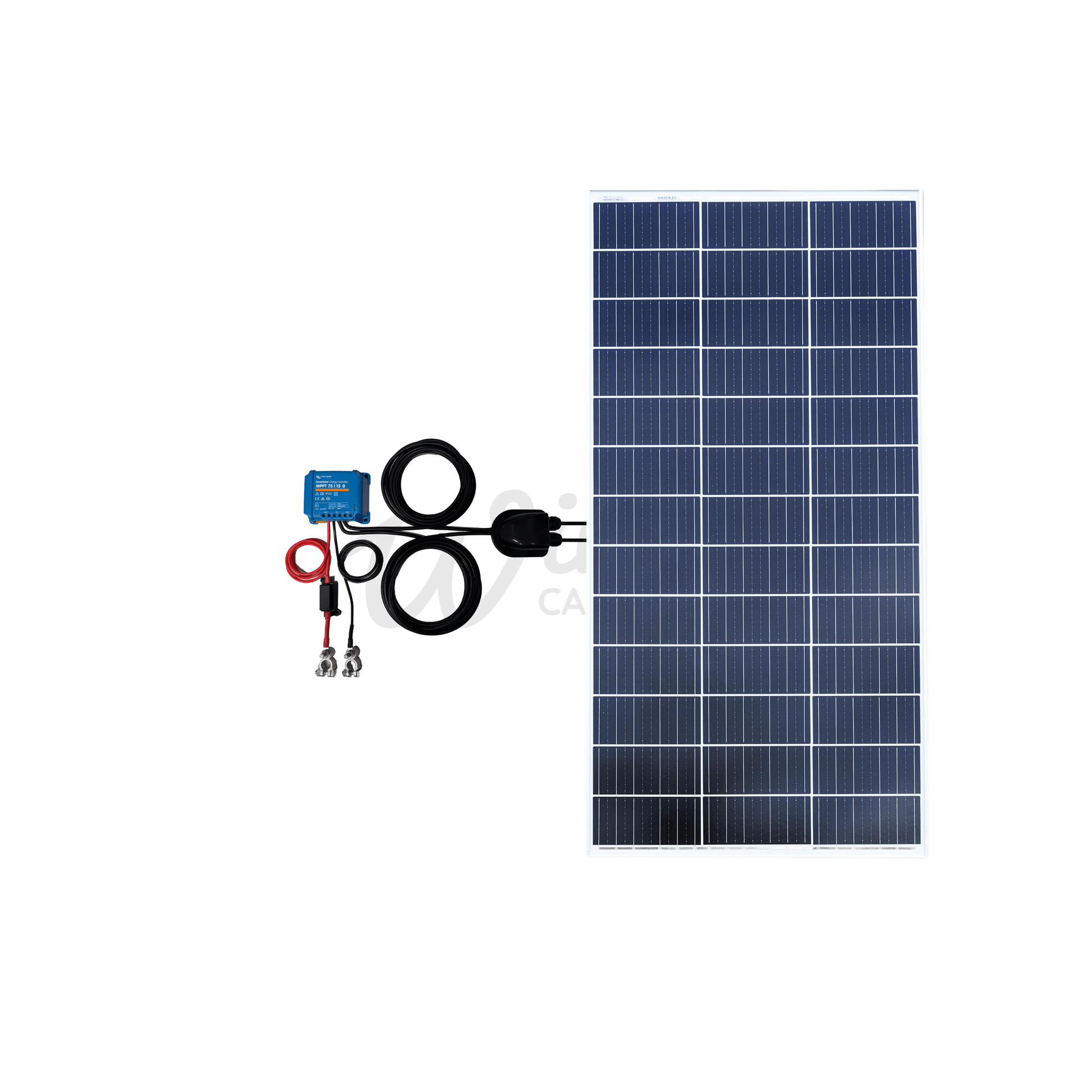

Victron Energy SmartSolar 75/15 MPPT & 190W BlueSolar Camper Van Kit

PLEASE NOTE - THIS KIT IS COLLECTION ONLY - PLEASE SELECT "PICKUP IN STORE" AT CHECKOUT.

Solar MPPT Controller

Victron Energy SmartSolar 75/15 MPPT Solar Panel Charge Controller With Bluetooth

This Victron SmartSolar 75/15 MPPT charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

TECHNICAL SPECIFICATION

• Battery voltage (Auto select) - 12-24V
• Rated charge current - 15A
• Nominal PV Power (12V) - 220W
• Max PV short circuit current - 15A
• Automatic load disconnect - Yes
• Max PV open circuit voltage - 75V
• Peak efficiency - 98%
• Power terminals - 6 mm²
• Weight - 0.5KG
• Dimensions (h x w x d) - 100 x 113 x 40MM
• Part number - SCC075015060R
• GTIN  - 8719076040804

Solar Panel

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.

TECHNICAL INFORMATON

• Brand - Victron Energy
• Wattage - 190W
• Dimensions - 1485MM x 668MM x 30MM
• Weight - 10.5KG
• Nominal Power - 190W
• Max Power Voltage - 21.8V
• Max Power Current - 8.71A
• Open Circuit Voltage - 25.5V
• Part Number - SPM041903903
• GTIN - 8719076070672

Solar Equipment

• MC4 Solar connector.
• Solar fuse and MC4 waterproof holder.
• Roof entry gland and mount (available in black or white).

Cables

Wiring from the MPPT controller to the solar panel will be in 6mm² UV resistant solar cable, available in a 5M, or 10M length with pre-crimped MC4 terminals.

Wiring from the MPPT controller to the battery terminals will be in 6mm² tri rated cable in a standard length of 3M.

Accessories

• High quality positive and negative battery terminals with PVC covers - We have listed these as an optional item, as with most builds, solar is an addition, so you may already have battery terminals fitted (for example if you have a DC-DC unit).
• In line MIDI fuse holder and fuse.
• 4 X Bootlace ferrules for clean wire termination to the MPPT controller.
• Associated heat shrink and terminals to complete the installation.


Please note, this is in kit form so will require assembly (crimping/cutting cables).
