12V 6 Way Camper Van Light Up Membrane Touch Panel & Control Box

Regular price £34.99
Unit price  per
Tax included.

A great modern alternative to a traditional control panel. This allows you to control up to 6 different 12V accessories and each switch can be sent to either standard ON/OFF or momentary.

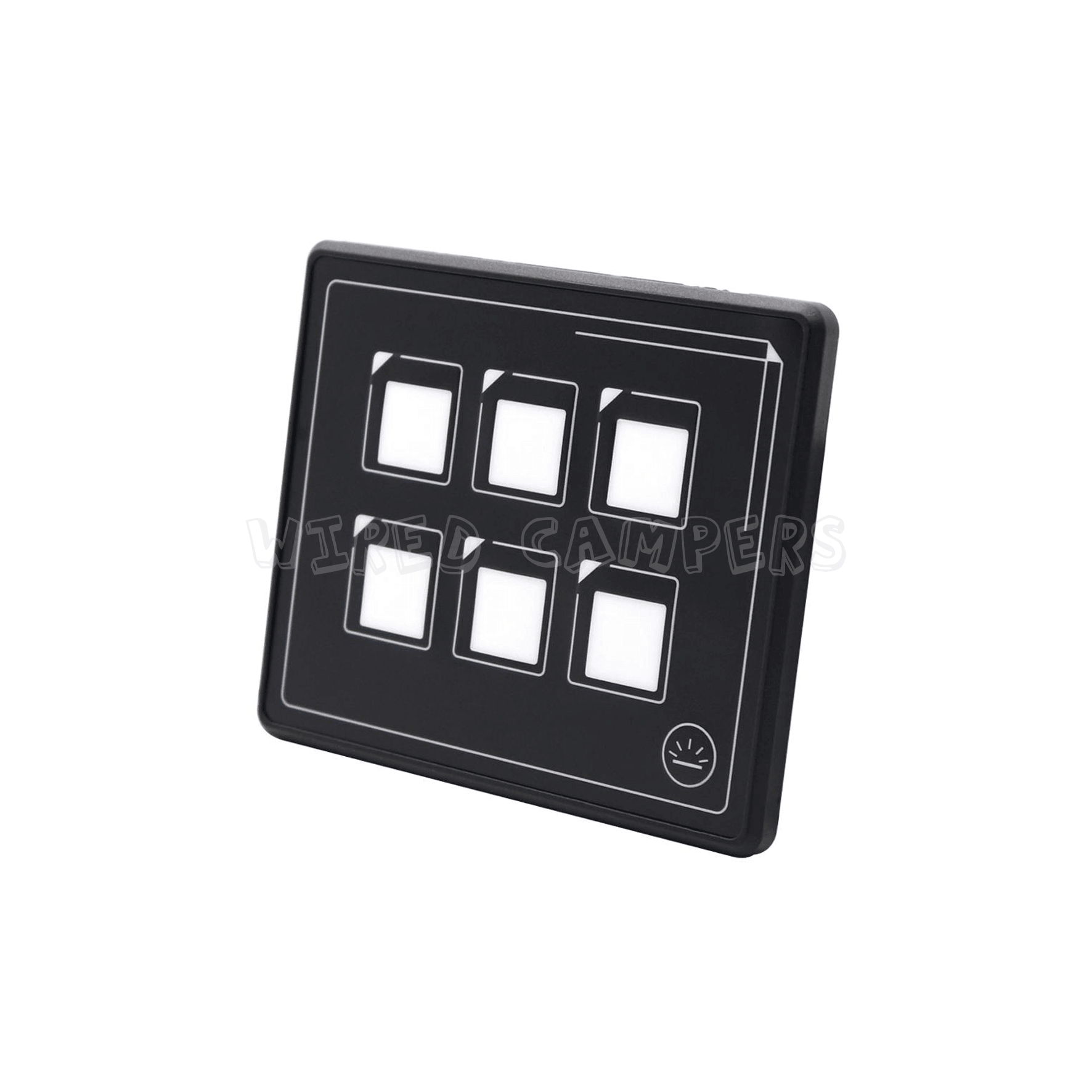

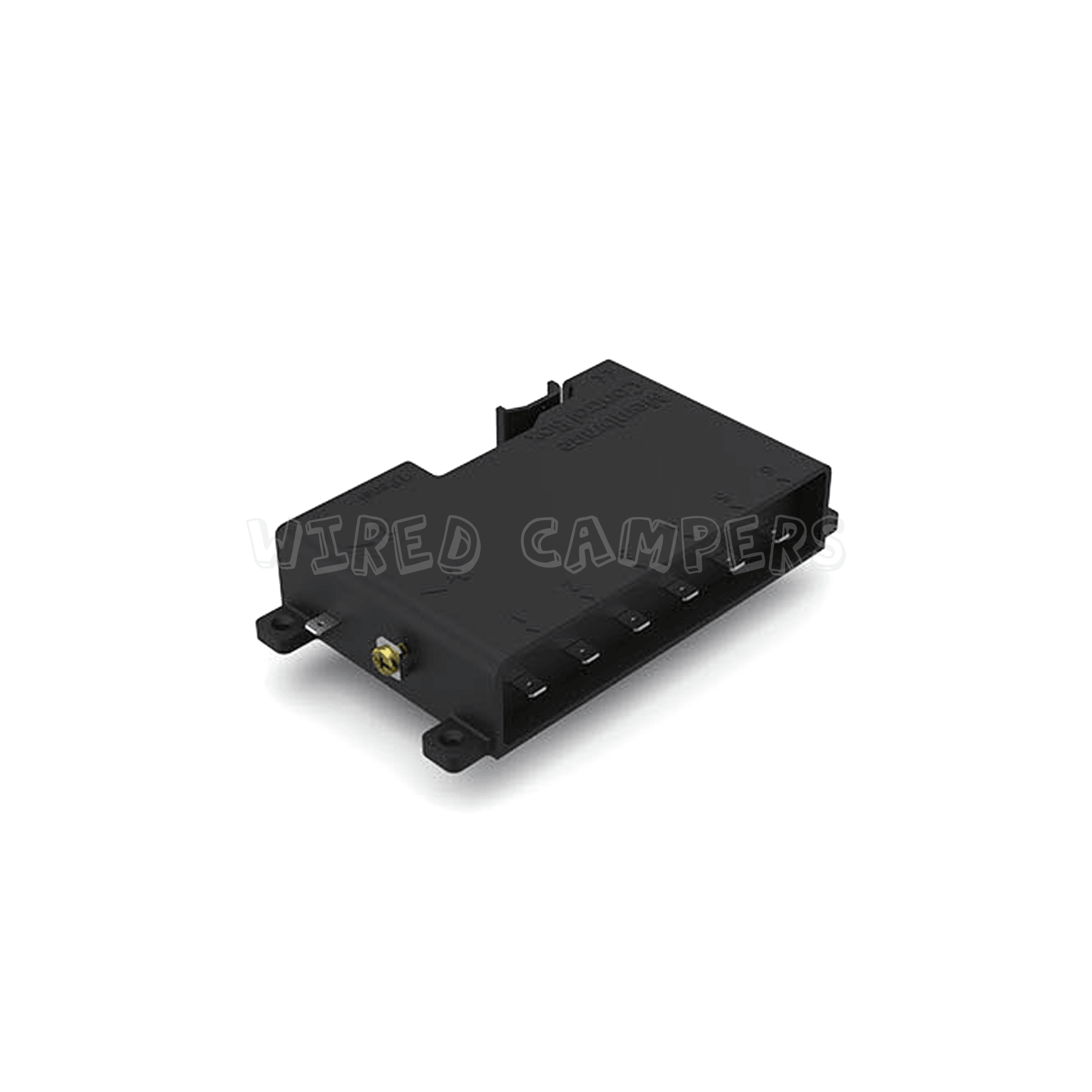

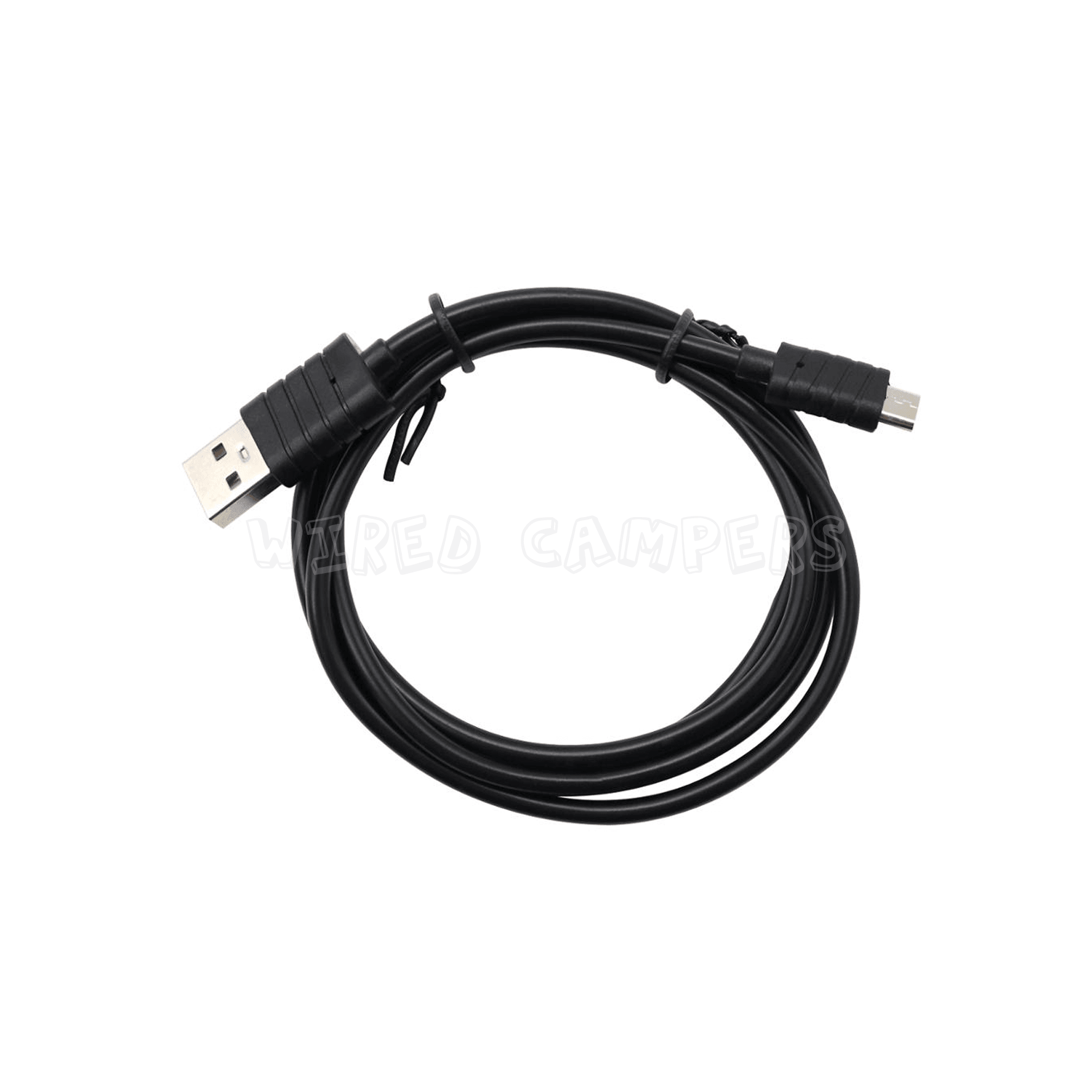

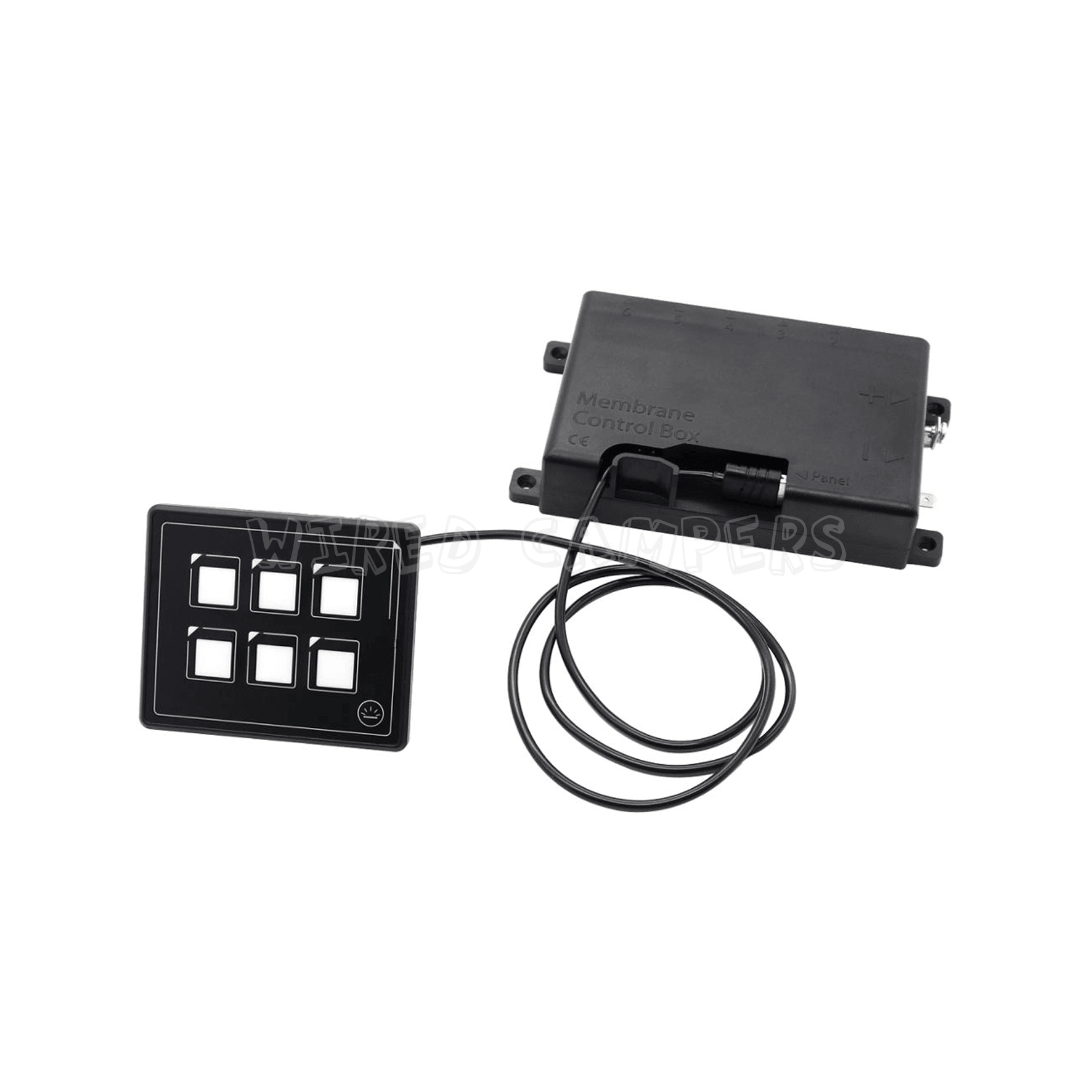

Using a light up membrane touch panel, this connects via USB to the control box, where you can attach your power and wiring out to your accessories.

The back light can be turned on and off (great for finding it in the night!) and the panel shows a red indicator when a switch is turned on.

It's small size and slim profile means it'll fit in most places unlike traditional panels, and you only need to drill a small 15mm hole for USB cable to pass through.

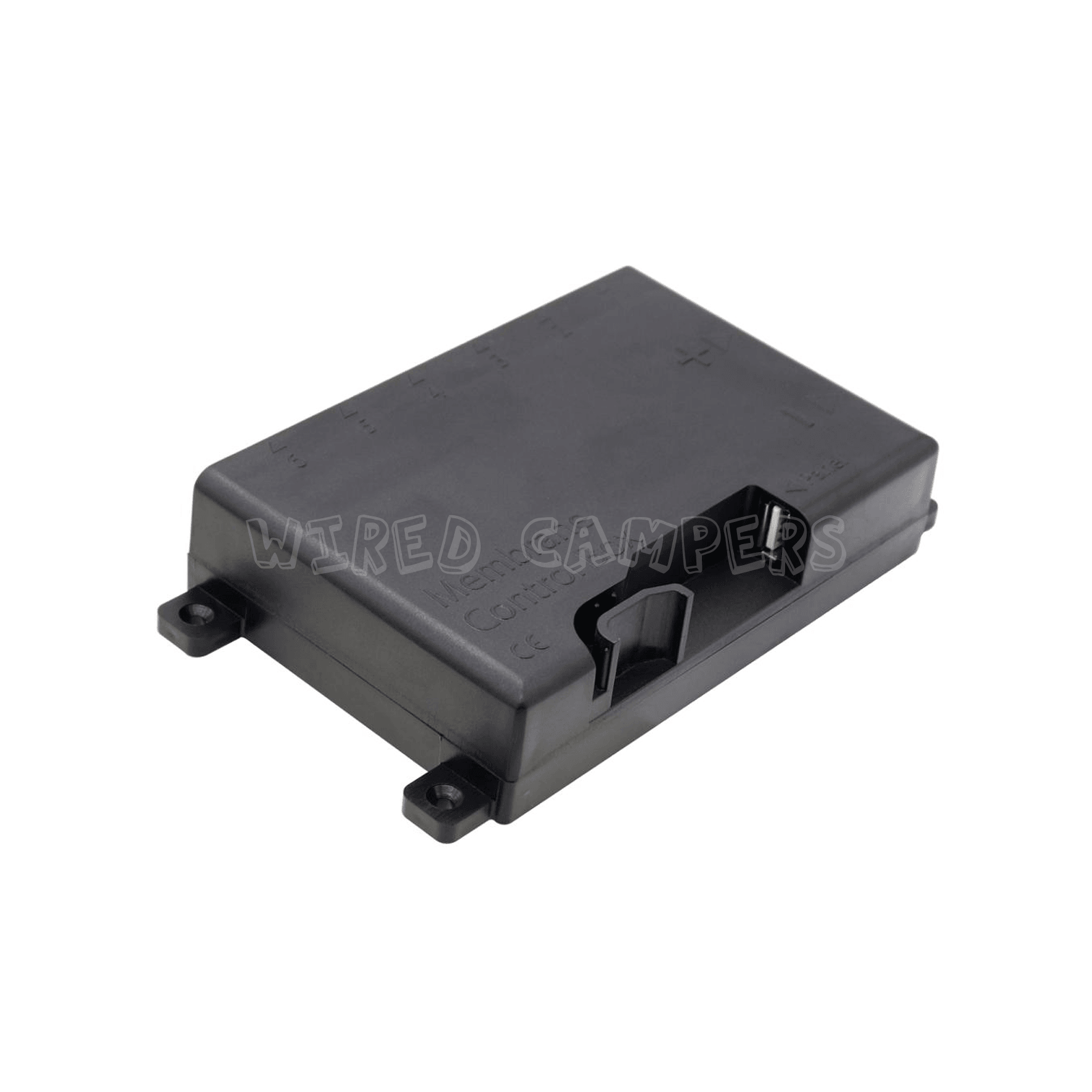

The control box also contains re-settable fuses, so there is no need for a separate fuse box.

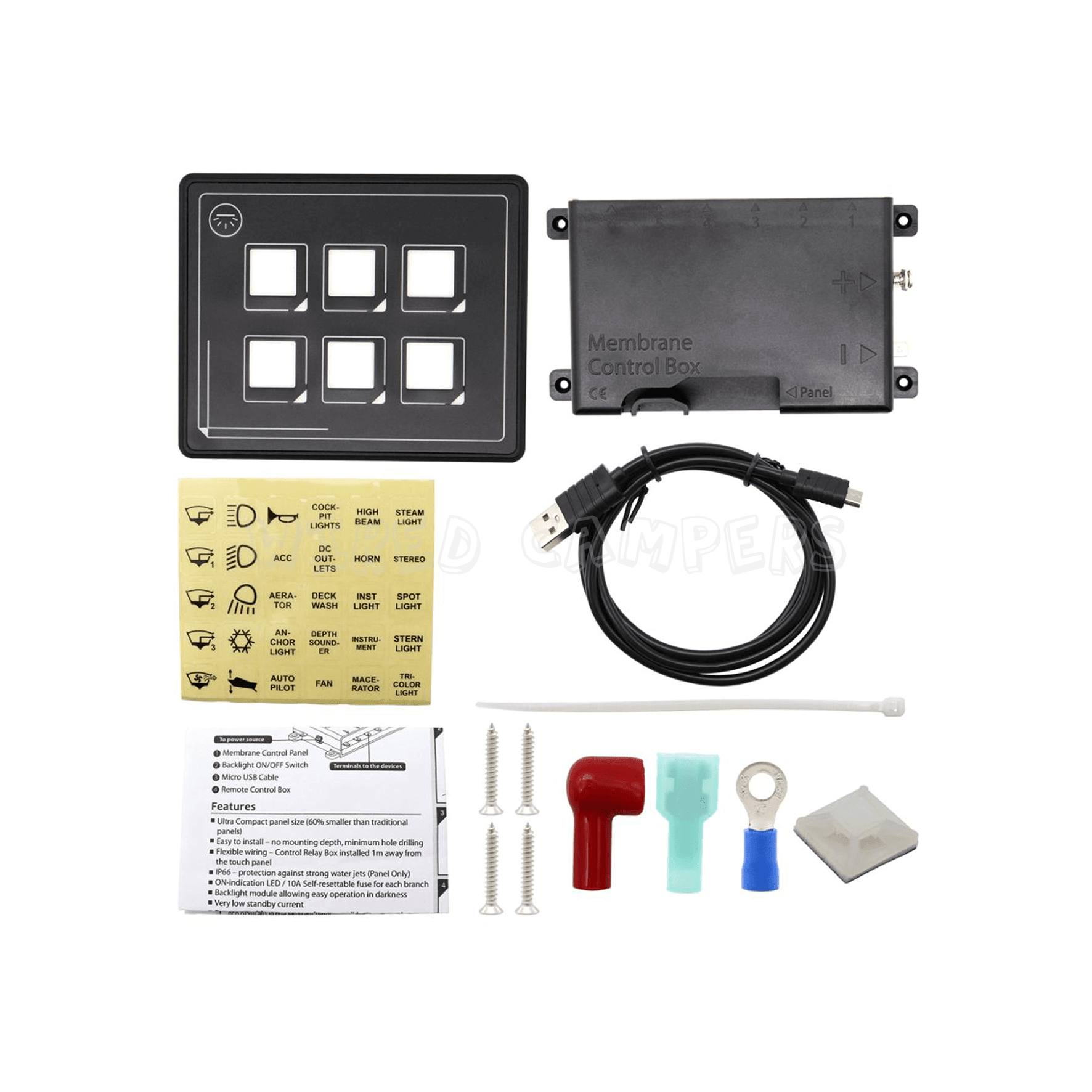

Comes complete with 60 assorted stickers, terminals, and instructions.
  • Panel IP66 Rated
  • Built in PPTC fuses
  • Max 10A per switch
  • Cumulative 35A rating
  • Voltage rating 11-30V
  • Power terminals - M4 stud
  • Load terminals - .250 Quick terminals
