PLEASE NOTE - THE LEAD TIME ON THIS KIT IS CURRENTLY 1 WEEK.

We've listened to your wants and desires over the last few months and believe this hits the mark. We hope this kit makes it easier for you to get want you want in your van, so you can get out on the road and enjoy it.

This kit will provide you the following functions -

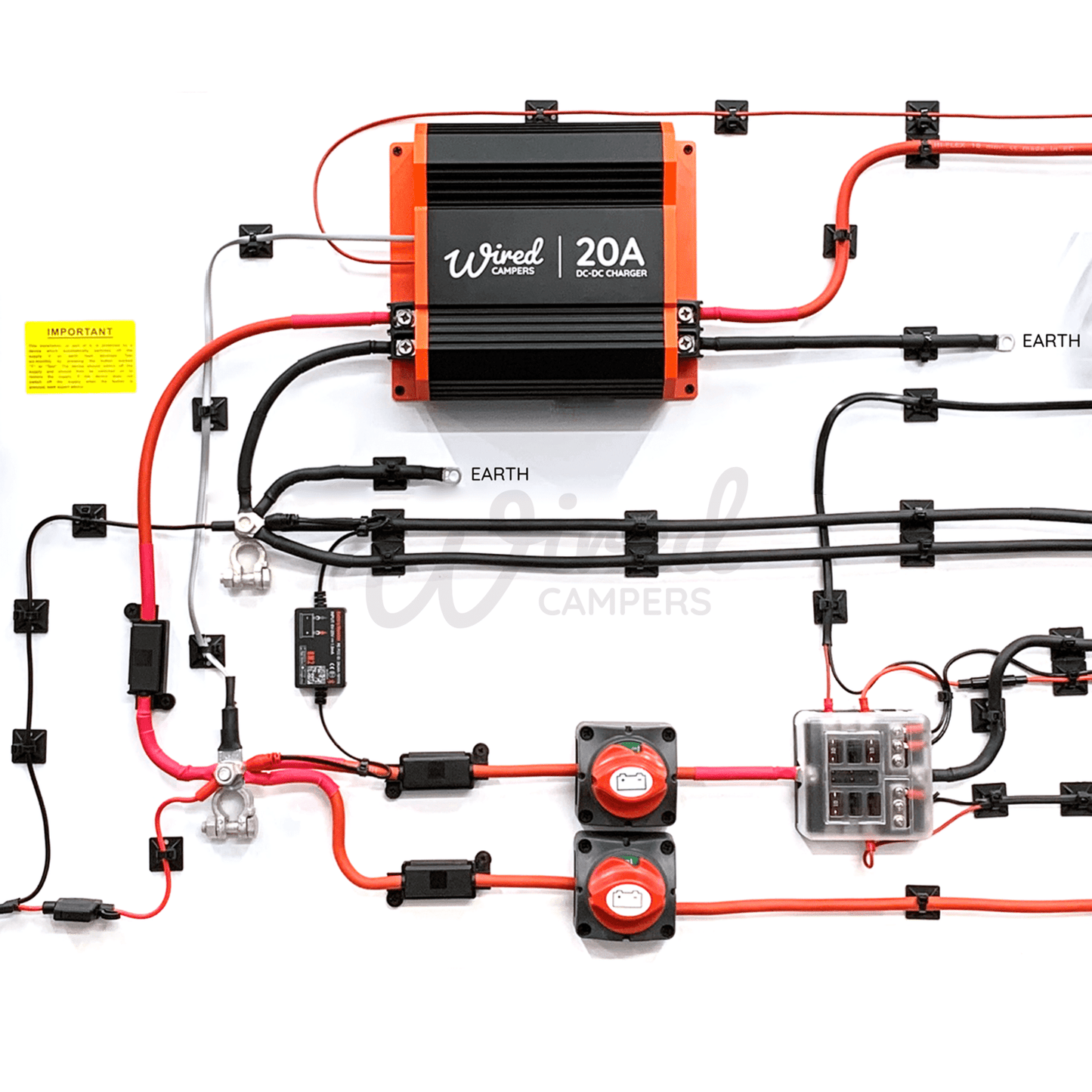

12V LEISURE BATTERY CHARGING

Leisure battery charging from the alternator your van. This is powered by our 20A DC-DC battery to battery charger.

Not only will this kit work with smart alternators, it'll also work with standard ones too. It'll provide a more stable and reliable charge to your leisure battery (extending life & available capacity) over a traditional voltage sensitive relay kit.

What makes up this part of the kit?

  • 20A DC to DC battery to battery charger
  • 7M 16mm2 Red hi-flex battery cable
  • 5M 16mm2 Black hi-flex battery cable
  • 5M 1.5mm2 Ignition trigger wire cable
  • 1 X Positive leisure battery terminal
  • 1 X Negative leisure battery terminal
  • 2 X PVC battery terminal covers
  • 2 X Bolt down MIDI fuse holders
  • 2 X 30 AMP MIDI fuses
  • 3 X 16mm2 8mm Hole copper crimp terminals
  • 11 X 16mm2 6mm Hole copper crimp terminals
  • 8 X 70mm Red heat shrink sleeve
  • 6 X 70mm Black heat shrink sleeve
  • Wired battery temperature sensor

Technical Details

  • Transformation - 12V > 12V
  • Input battery voltage - 8V > 16VDC
  • Charging current - 20A
  • Lead acid charging voltage - 13.2V > 14.7V
  • Lithium charging voltage - 12.6V > 14.6V
  • Efficiency - 90%

BLUETOOTH BATTERY MONITOR

This great Bluetooth monitor allows you to keep an eye on the current state of leisure battery by providing various stats such as voltage etc as well as -

  • Receive notifications of battery condition when in Bluetooth range.
  • Alerts via your phone if the system detects abnormal data.
  • Short-circuit and reverse connection protection.
  • Data stored in the battery monitor for up to 35 days if out of sync.

What makes up this part of the kit?

  • Bluetooth 4.0 mobile app 12V battery voltmeter monitor

12V 6 WAY FUSE BOX, FUSE & ISOLATOR

This is the central hub for the distribution of 12V power. This runs from your leisure battery via a fuse and isolator.

What makes up this part of the kit?

  • 12V 6 Way blade fuse box block holder with LED indicator & fuses
  • MIDI bolt in fuse holder
  • 100 AMP MIDI fuse
  • Removable key medium duty 12V 200A battery power isolator
  • 3M 16mm2 Red hi-flex battery cable
  • 3M 16mm2 Black hi-flex battery cable
  • 2 X 16mm2 10mm Hole copper crimp terminals
  • 1 X 16mm2 8mm Hole copper crimp terminals
  • 5 X 16mm2 6mm Hole copper crimp terminals
  • 6 X 70mm Red heat shrink sleeve
  • 2 X 70mm Black heat shrink sleeve

Isolator Technical Details

  • 200A Continuous current
  • 1000A Peak current (5 seconds)
  • 10mm Terminals
  • Four removable side panels for easy cable entry
  • Mounting bolts and locking nuts
  • Removable key for additional safety

Fuse Box Technical Details

  • Built in negative bus bar
  • LED function on each output that will illuminate to show any blown fuses
  • Numerous labels for easy identification of outputs
  • Complete with 6 fuses (2 X 5A, 2 X 10A, 2 X 15A)
  • Mounting screws

12V MAIN CONTROL PANEL & BUS BAR

This is the main control panel in the van, fed from one of the outlets on the 6 way fuse box. This unit comes with a voltmeter, USB port and a 12V port. The panel has five switched fused outlets to feed the other 12v items in your van such as your lighting, water pump. fridge etc.

There is also a 5 way negative bus bar provided, so you can terminate all negatives to this point from the control panel.

What makes up this part of the kit?

  • 12V Camper/Caravan 5 gang switched USB main control panel
  • 5 Way terminal DC negative common bus bar
  • 2M 16mm2 Black hi-flex battery cable
  • 5M 2.0mm2 twin core thin wall automotive cable
  • 20M 2.0mm2 twin core thin wall automotive cable
  • 1 X 16mm2 8mm Hole copper crimp terminals
  • 1 X 16mm2 6mm Hole copper crimp terminals
  • 11 X Insulated ring terminals
  • 2 X 70mm Black heat shrink sleeve

Panel Technical Details

  • Pre-wired for quick fitting
  • 5 gang independent switches complete with in-line fuse holders with fuses
  • Dual 2.1A USB Charger
  • Voltmeter
  • 12V Power socket
  • Blue LED

Bus Bar Technical Details

  • Max - 100A 48V
  • Number of screw terminals - 5
  • Number of studs - 2

12V MINI PANEL

Again, powered from the 6 way fuse box, this small panel is great for installing in the bed area of your van as it doesn't take up too much space and its ideal for charging a phone or tablet.

What makes up this part of the kit?

  • 12V Camper/Caravan mini panel - dual quick charge 2.4A USB & 12V socket
  • Two hole mounting plate with screws
  • 2.5M 2.0mm2 twin core thin wall automotive cable

Technical Details

  • Quick Charge Dual 2.4A USB Chargers
  • 12V Power socket
  • Fitting Screws
  • Terminated cables with an in-line fuse
  • Blue LED

12V QUICK CHARGE PORT

Similar to the other two units, this is also powered from the fuse box, but this one is your high powered quick charge USB C (PD) & USB A port, suitable for charging large capacity devices.

What makes up this part of the kit?

  • Quick Charge 3.0 18W USB C PD port & USB A port 18W
  • One hole mounting plate with screws
  • 2.5M 2.0mm2 twin core thin wall automotive cable

Technical Details

  • Built in ON/OFF switch to conserve power
  • USB Type A Quick Charge 3.0 Port
  • USB Type C PD Port
  • 5V - 3A / 9V - 2A / 12V - 1.5A
  • Blue LED

240V MAINS HOOK UP

This part of the kit will allow you to hook up to a standard 16A camp site site hook up and will then power the mains sockets in the van. As standard, the kit will come with two double three pin sockets (In a choice of finish), both complete with dual 2.1A USB ports and a standard three pin socket to power the on board mains battery charger.

This mains consumer unit  will be 90% pre-assembled with all the major wiring in the completed. All you need to do is route the cables in your van and wire up the 16amp hook up point, the switch, and sockets.

What makes up this part of the kit?

  • IP65 Rated 8 way enclosure with earthing bar
  • 30 mA Double pole RCD
  • 2 X 10A Double Pole MCBs for double sockets
  • 6A Double pole MCB for battery charger single socket
  • 2 X 13A Metal flat double sockets with dual USB
  • Single white plastic socket
  • 2 X Flush double socket mounting boxes
  • Surface mount single socket mounting box
  • Flush hook up point available in black or white
  • 5M 2.5mm2 3 core flexible mains cable
  • 3 X 3M 1.5mm2 3 core flexible mains cable
  • 2M 6mm2 tri rated earth cable
  • 4 X 20mm Glands
  • Safety stickers

Technical Details

  • Main input protected with double pole RCD
  • Each Individual outlets protected with double pole MCBs
  • Flush mounted magnetic hook up flap (Available in black or white).

MAINS BATTERY CHARGER

This is small but vital part of the kit. This charger is hard wired onto the leisure battery terminals in the van. It serves various functions but the two main ones enable you to keep your leisure battery topped up at home as the charger can be left attached permanently but also when on site, it keeps power to your battery so that you can continue to run your 12V equipment without having to start the van or rely on solar.

What makes up this part of the kit?

  • 12V 10A/9A 6 Stage (Lead Acid/AGM) / 4 Stage (Lithium) mains smart intelligent leisure battery charger & maintainer - Please note - This item has been upgraded since product images were taken, so the charger physically looks different and comes upgraded with an LCD screen to show battery information.

     Technical Details

    • Short circuit, over charge and reverse polarity protection
    • Leisure battery charger output - 10A (Lead Acid/AGM) / 9A (Lithium)
    • Max Voltage - 14.5V Lead Acid / 14.9V AGM / 14.4V Lithium
    • LCD Screen showing charging current, battery condition and voltage

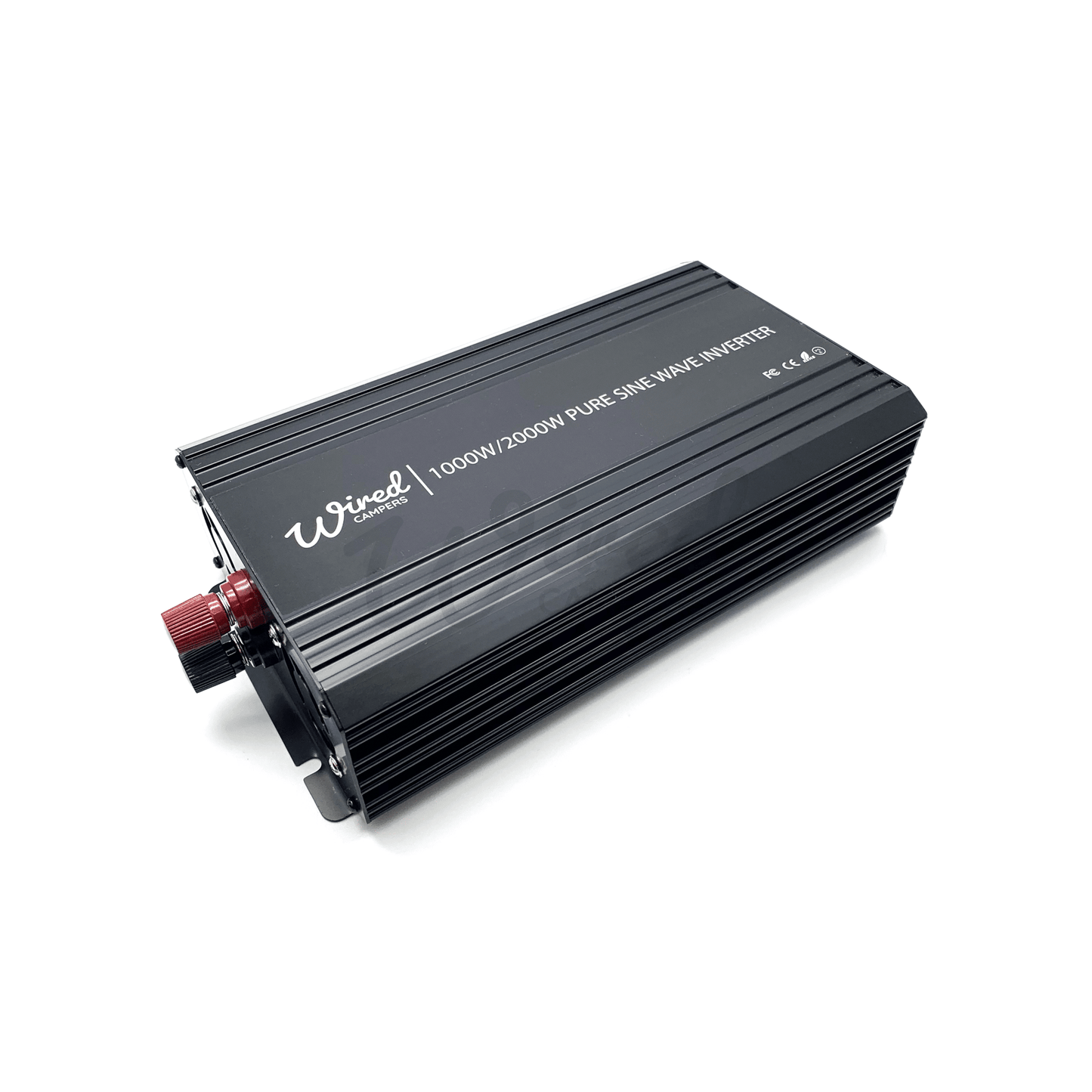

      INVERTER

      We have added an inverter into this kit for those times where you might need to use mains off grid, but don't want to go to the expense of having a full integrated kit. When you need to power a mains appliance, simply plug it directly into the socket on the inverter body. Please note - This inverter is a standalone item and does not power the mains sockets from the hook up consumer unit.

      What makes up this part of the kit?

      • 1000W Pure sine wave inverter
      • Removable key medium duty 12V 200A battery power isolator
      • 3M 25mm2 Red hi-flex battery cable
      • 3M 25mm2 Black hi-flex battery cable
      • 2 X 25mm2 10mm Hole copper crimp terminals
      • 2 X 25mm2 8mm Hole copper crimp terminals
      • 4 X 25mm2 6mm Hole copper crimp terminals
      • 1M 6mm2 tri rated earth cable
      • Bolt down MEGA fuse holder
      • 150 AMP MEGA fuse
      • 6 X 70mm Red heat shrink sleeve
      • 2 X 70mm Black heat shrink sleeve

         Technical Details

        • Continuous Power - 1000W
        • Surge Power - 2000W
        • Input Voltage - 12V DC
        • AC Output Voltage - 230V AC
        • USB Port Fitted - 1
        • Sockets Fitted - 1
        • Wave Form - Pure Sine Wave
        • USB Output - 5V DC
        • No Load Current - 0.7A
        • Efficiency - >85%

        ADDITIONAL IMPORTANT INFORMATION

        Although we have listed the 12V cable as separate lengths in each part of the kit, these are only suggestions as we know sometimes this isn't suitable and you need longer or shorter lengths. So all of the same cable will be provided on a continuous roll for you to cut up and install as per your build to give you a bit more flexibility.

        As with all the kits and layouts provided on our site, they serve as a guide only and we recommend all wiring and installation is carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.
