200W Semi Flexible Black Fibreglass EFTE Coated Solar Panel With Rear Hidden Junction Box
200W Semi Flexible Black Fibreglass EFTE Coated Solar Panel With Rear Hidden Junction Box
Out of stock
- FREE DELIVERY WHEN YOU SPEND OVER £150
- UK BASED CUSTOMER SUPPORT
- WE'RE RATED EXCELLENT ON TRUSTPILOT
PANEL FEATURES

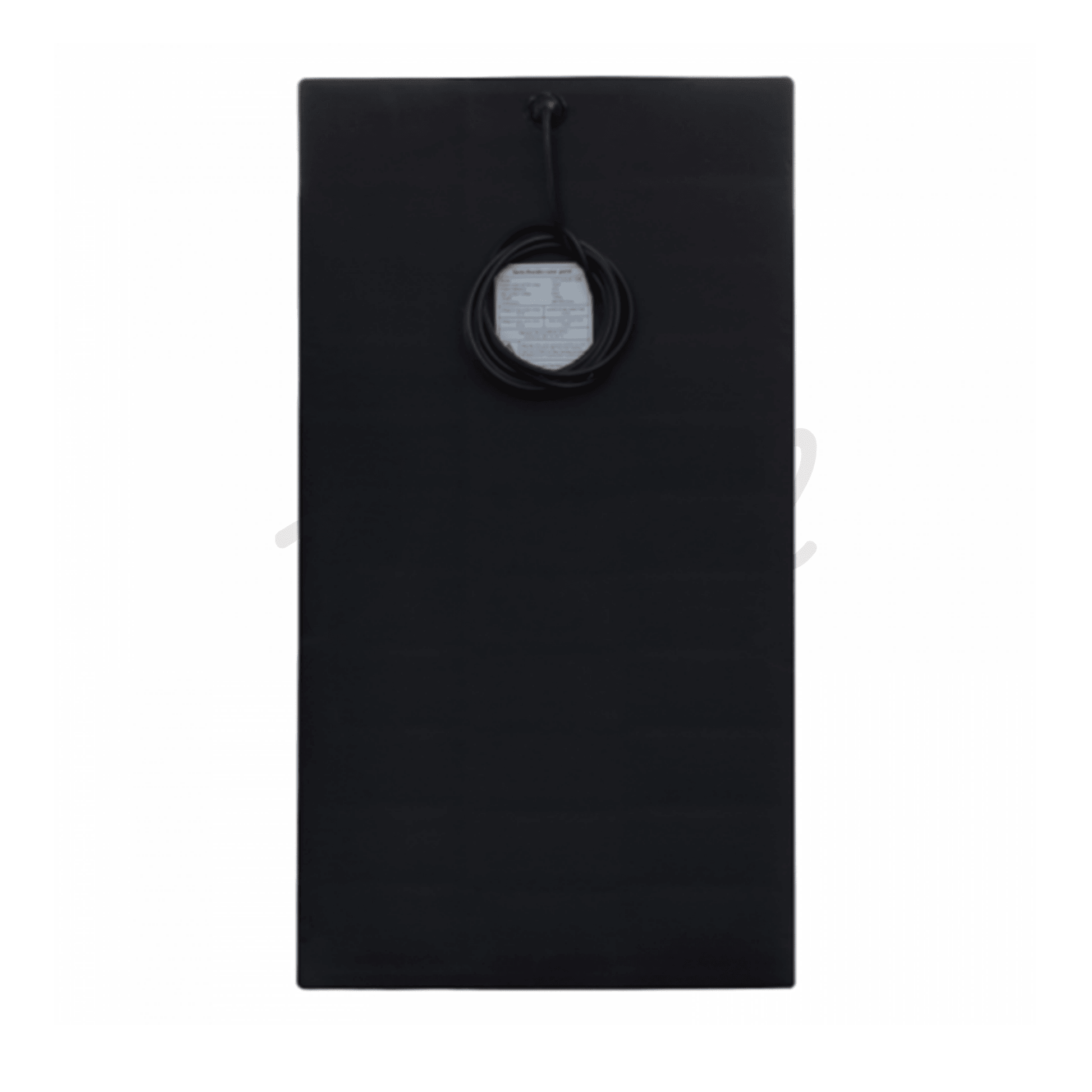

This particular model features the junction box and cable on the rear side of the panel to create a completely level surface and professional finish after installation. Unlike other solar panels, the junction box on this solar panel is a circular shape with only one dual core cable (3m length) attached, allowing for simplified installation. Please note: in order for this panel to be flush-mounted, a recess must be cut in to the roof/surface.
This solar panel has a unique black backing, making it ideal for discreet and aesthetically pleasing installation on dark coloured roofs, vehicles or mounting surfaces. Please note that this solar panel is not 'ultra jet-black' - the exact hue may vary marginally from panel to panel, depending on the batch of solar cells.

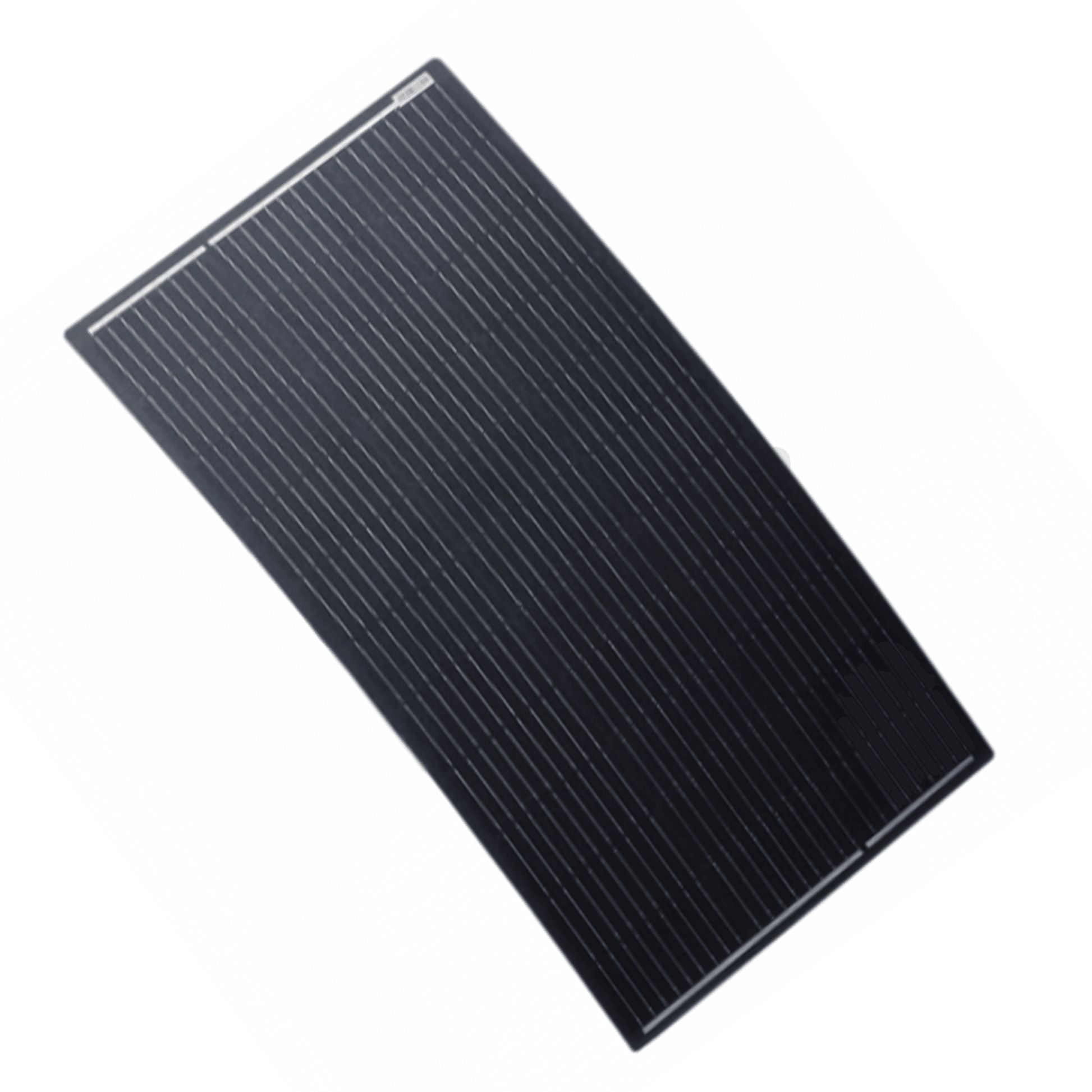

The textured surface of this solar panel reduces the reflection of light whilst maximising the absorption of light from every possible angle. This ensures high performance in low light or cloudy conditions, or when the light falls at an angle (in the morning, evening, or winter).
- Robust construction using plastic reinforced with glass fibre creates a sturdy and durable solar panel
- Special textured surface significantly reduces light reflection and improves performance in low light and cloudy conditions
- Highly flexible design makes this panel ideal for curved roofs and surfaces where bonding is preferable (though it can also be fixed by bolts or screws)
- The panel is incredibly light (only 3.65kg) and very thin (just 2mm) which is great for all vehicles
- High resistance to salt water environments makes it perfect for boats and marine applications
- Sealed waterproof design ensures it can be used in all weather conditions

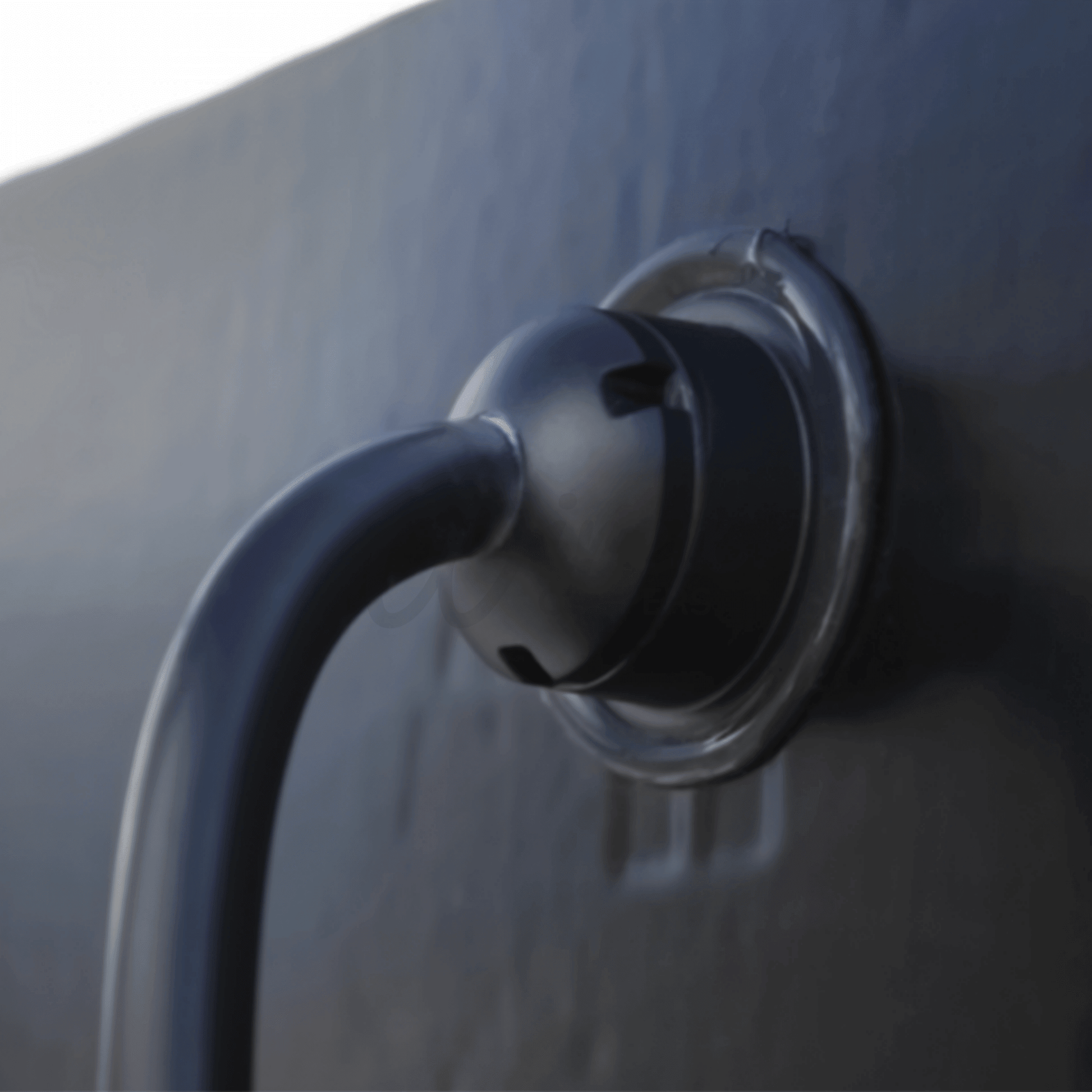

- Junction box on the back allows for a smooth and level surface, free of trip hazards and unsightly cables. Round shape for easy fitting
- Fitted with a single length of high quality 3m dual core cable for easy installation and wiring
STRONG EFTE COATING
In addition to the fibreglass reinforcement, the surface of this 200W semi-flexible solar panel is made of strong ETFE material which has a longer service life compared to standard semi-flexible solar panels. As a result, these particular semi-flexible solar panels are extremely hard-wearing and less prone to cracking, delamination and corrosion. The lightly textured coating of this panel creates an anti-reflective surface which allows the panel to absorb a far greater amount of light, thereby increasing efficiency. ETFE material has long been used in applications where durability and high-temperature resistance is required, such as in the Eden Project, Cornwall.
HIGH QUALITY 9-BUSBAR SOLAR CELLS
This panel also features new generation 9-busbar solar cells, which are more efficient than the 2, 3, 4 or 5 busbar solar cells used in most other solar panels, and are able to extract more power from the same surface area. This results in a smaller overall solar panel, which is ideal for applications where space is limited.
SPECIFICATIONS
- Peak power: 200W
- Maximum power voltage: 17.6V
- Maximum power current: 11.36A
- Open circuit voltage: 23.8V
- Short circuit current: 12.05A
- Dimensions: 1390 x 710 x 2 mm
- Weight: 3.65 kg
This product comes with a 3 year workmanship warranty which covers material and production defects.
