240V Mains Camper On Site Hook Up Kit - 2 X Double Sockets & Fridge Outlet
Unit price/ per
This is a complete kit to wire up your camper to 240V with a mains hook up, perfect for when you’re on site. This kit will provide you with two double sockets as well as a double pole switch to power a 2/3 way fridge.
This kit will be 90% pre-assembled with all the major wiring in the consumer unit completed. All you need to do is route the cable in your van and wire up the 16amp hook up point, the switch, and sockets.
Unlike others for sale, this unit conforms to British safety standard BS 7671:2018. This is due to the sockets and switches being double pole as well as the consumer unit containing double pole RCDs and MCBs.
When using your camper in the EU, they tend to use a system where the natural is not earthed, having double pole equipment ensures a higher level of safety. The outlets are also individually protected by their own MCBs as per regulations.
IP65 Rated 8 Way Enclosure with Earthing Bar
30 mA Double Pole RCD
2 X 10A Double Pole MCBs For Double Sockets
6A Double Pole MCB For Fridge

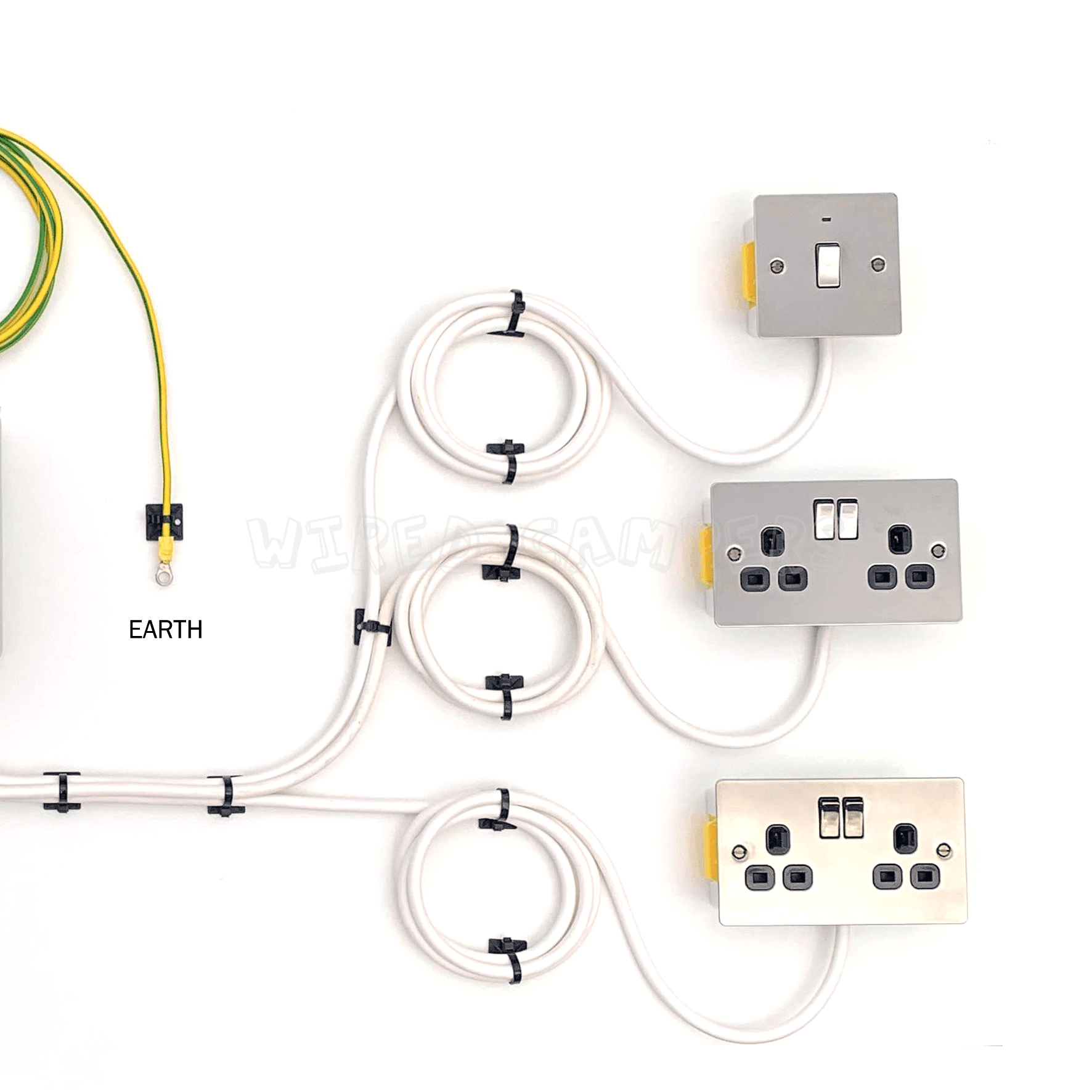

2 X 13A Metal Flat Double Sockets
20A Metal Flat Double Pole Switch
2 X Double Socket Mounting Boxes
Single Socket Mounting Box
240V IP44 Rated Hook Up Point With Dust Cover
5M 2.5MM Flexi Mains Cable For Hook Up
3 X 3M 1.5MM Flexi Mains Cable For Sockets
2M Earth Cable
4 X 20MM Glands
100 X Cable Ties
100 X Cable Tie Bases
This kit has been carefully assembled, however professional installation by a qualified electrician is recommended.
