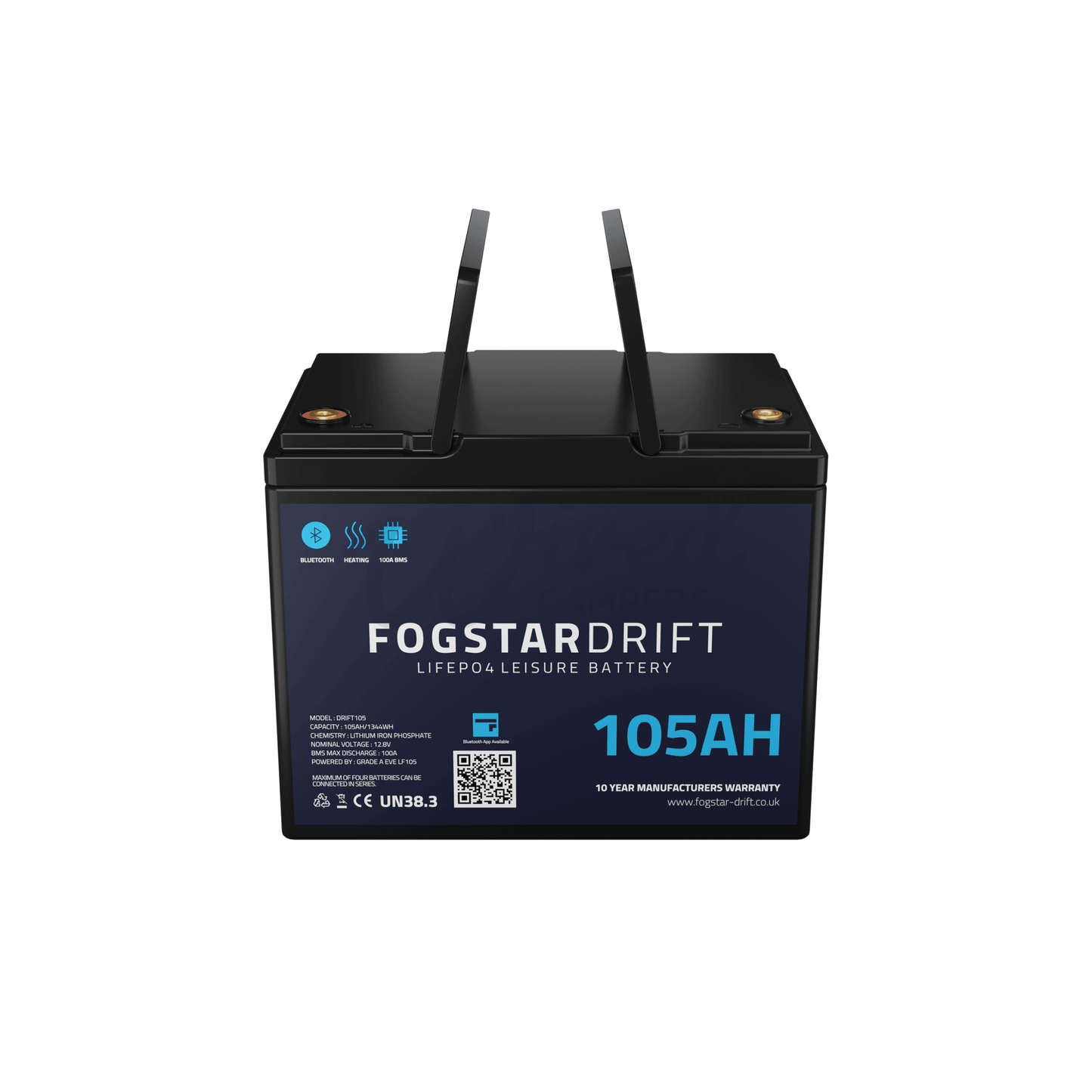

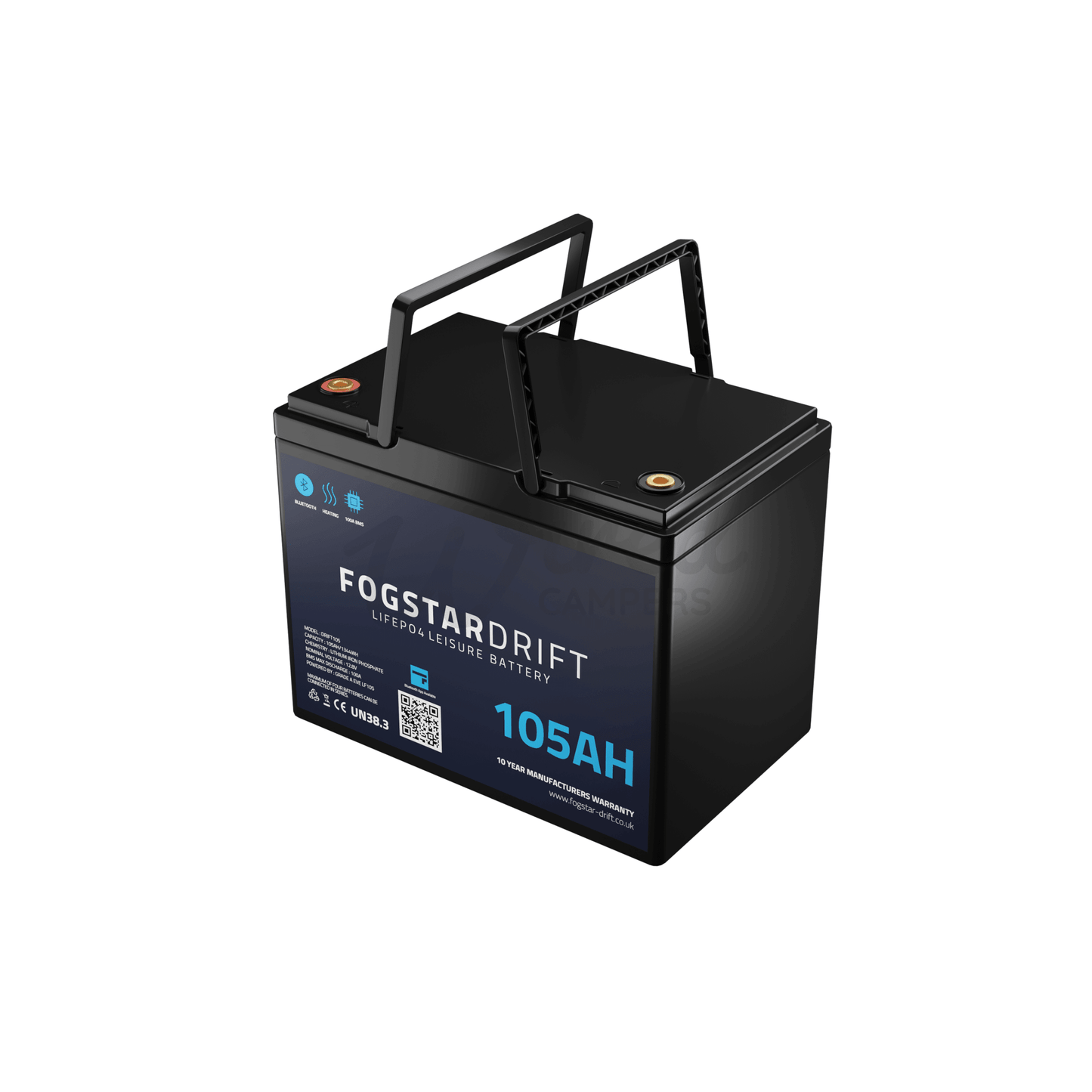

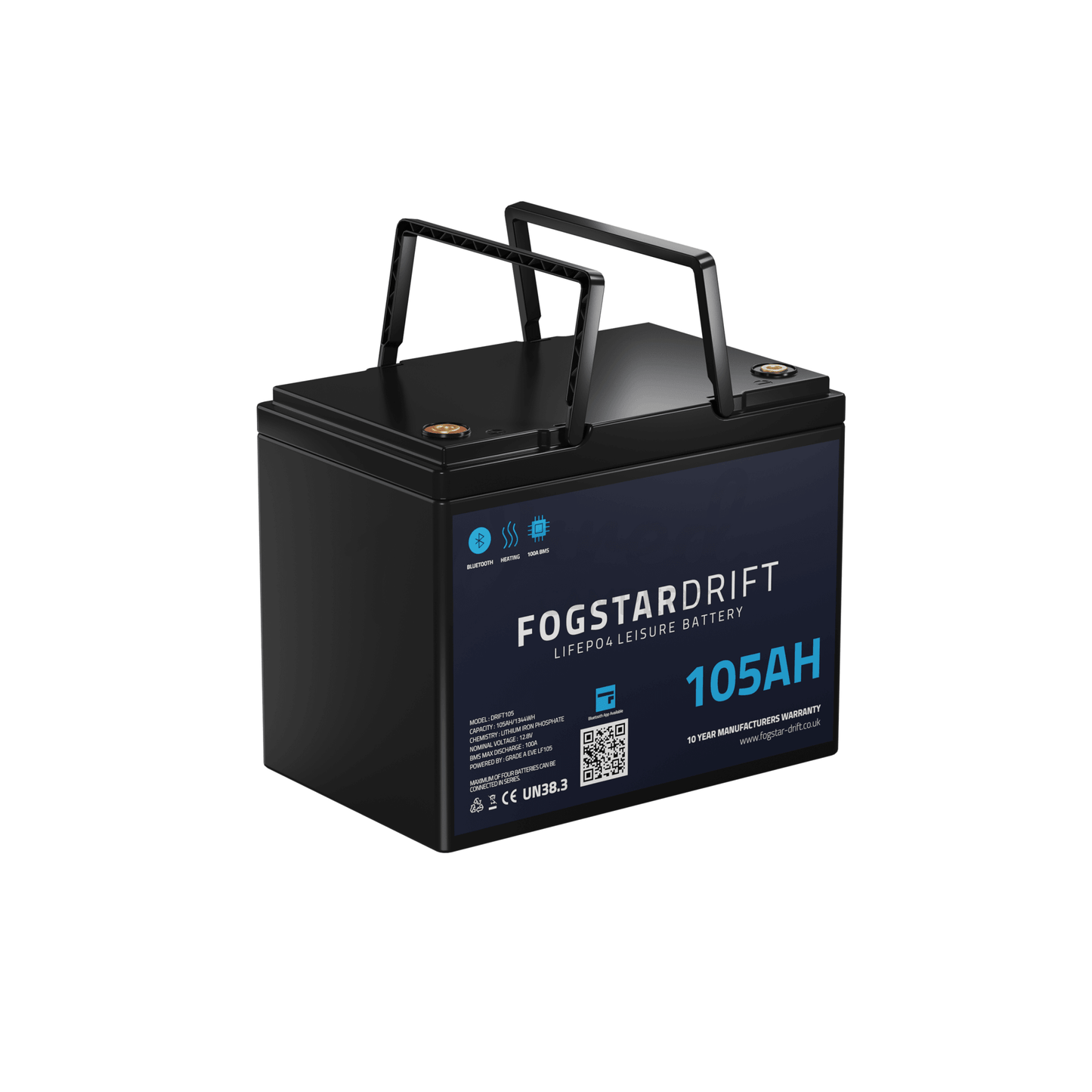

This 105AH model from Fogstar, offers a great first step into lithium leisure battery technology.
The battery is fitted with Grade A EVE LF105K lithium cells and has a built-in heater which warms the battery to 5°C to enable charging at low temperatures (Great for the British weather!).
You can connect to this battery via Bluetooth with the Fogstar app to give you real-time battery statistics.
Fogstar are so confident in their lithium leisure battery technology, that they offer a 10 year warrantee as standard.
To prolong the life of the battery, the BMS fitted inside protects against -
- Over-charging
- Over-discharging
- Over-current
- Over-temperature
TECHNICAL SPECIFICATIONS
- Cell Type - Grade A EVE LF105
- Cell Configuration - 4S1P
- Nominal Capacity - 105Ah
- Energy - 1280Wh
- Cell Chemistry - Lithium Iron Phosphate
- Cell Nominal Voltage - 3.2V *4 (12.8V)
- Cycle Life - 3500 @ 80% DOD
- Maximum Discharge - 100A
- Maximum Charge - 100A (Recommended charging rate 20/30% of capacity)
- Nominal Voltage - 12.8V
- Discharge Cut Off Voltage - 10V
- Discharge Temperature Range - -10°C to 60°C
- Charge Temperature Range - -10°C to 60°C (Heater Enabled)
- Storage - 10°C to 35°C @ 50% SOC
- Measurements - 260mm x 168mm x 209mm
- Weight - 10KG
- Housing Material - ABS Plastic
- Conformity - UN38.3, ROHS, CE, UL

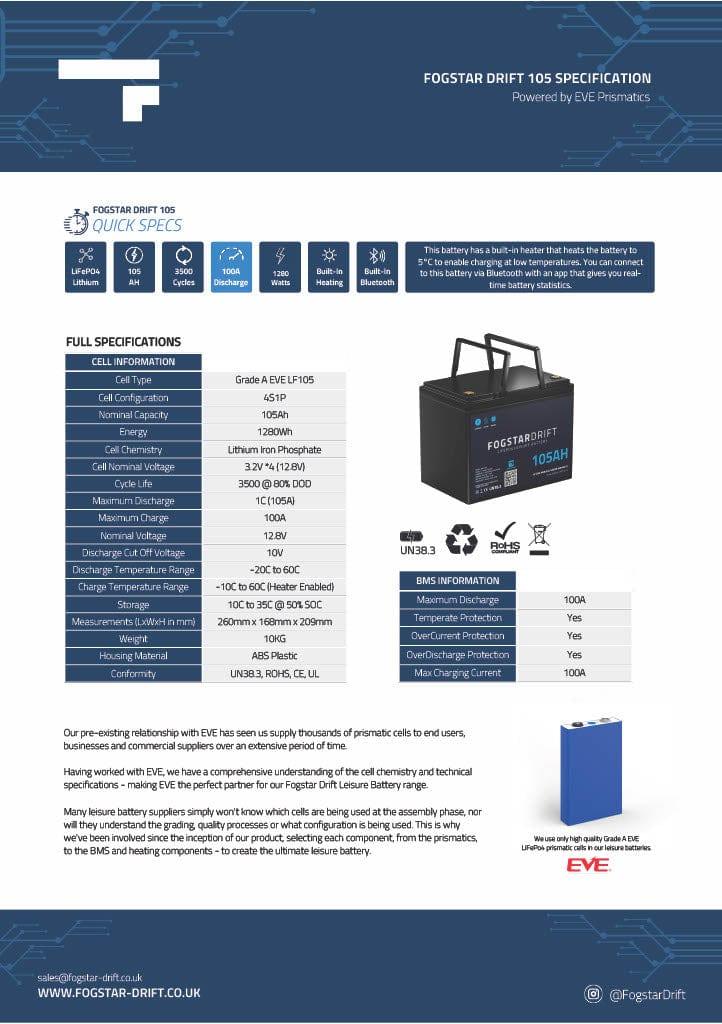

A full technical specifical sheet can be found here.
As with all lithium leisure batteries, specialist handling is required for shipping, therefore if you order any other items from us, you will receive two separate deliveries.
One will be for the battery, and one for any other items ordered. These deliveries won't necessarily arrive on the same day. Estimated battery delivery is 2-3 working days with the exception of postcode areas AB, BT, IV, KA, KW, KY, PA & PH. The shipping time quoted at checkout will be for all other parts ordered (If any).
