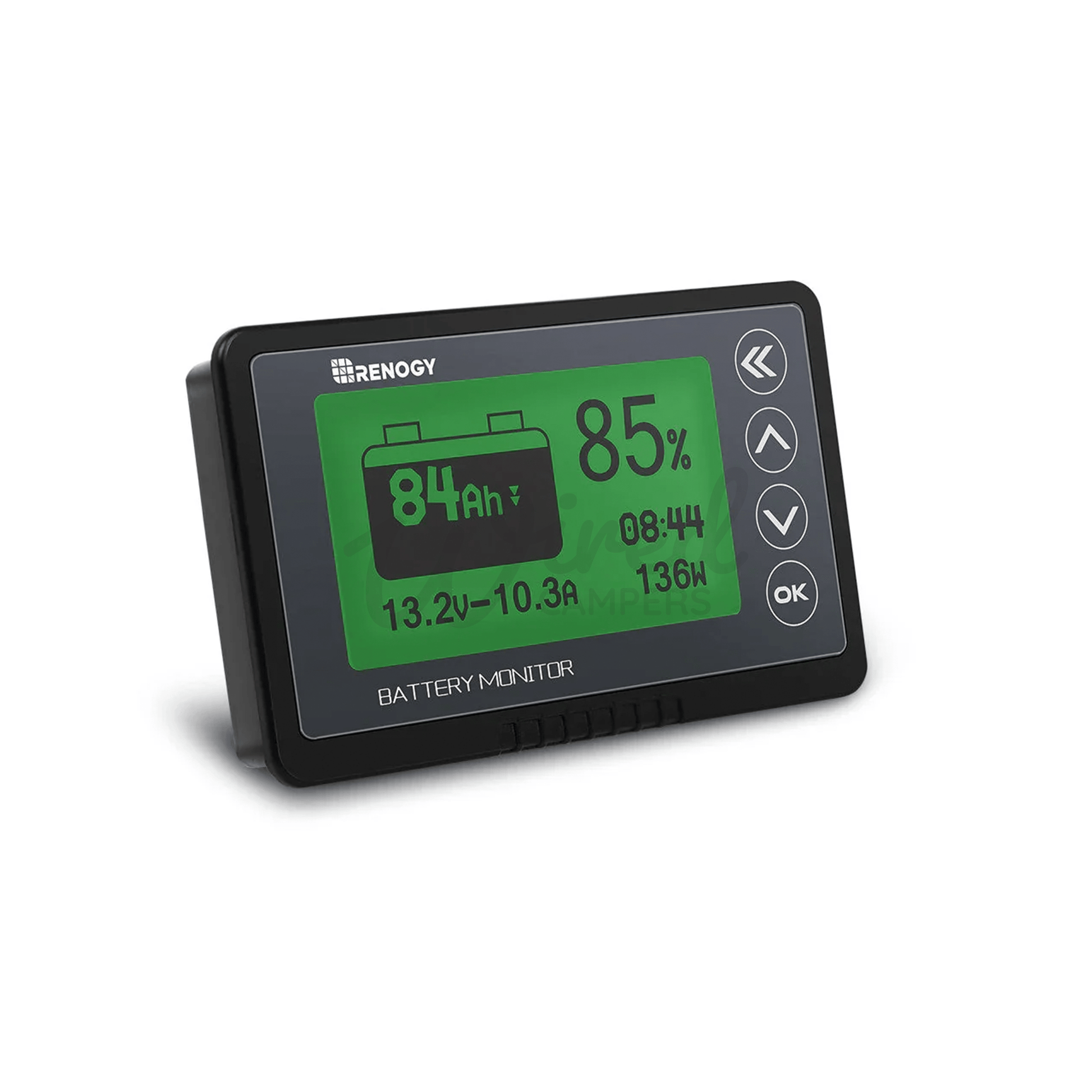

Renogy 500A Battery Monitor With Shunt & Screen

The Renogy 500A Battery Monitor with Shunt provides an accurate and easy way to monitor the condition and performance of your leisure battery system. Ideal for camper vans, motorhomes, caravans, boats and off-grid electrical systems, it gives you a clear view of your battery's state of charge and power usage.

Using a high-precision 500A shunt, the monitor measures battery voltage, current, consumed power and remaining battery capacity with an accuracy of up to ±1%, helping you understand exactly how much usable power you have available.

Accurate Battery Monitoring

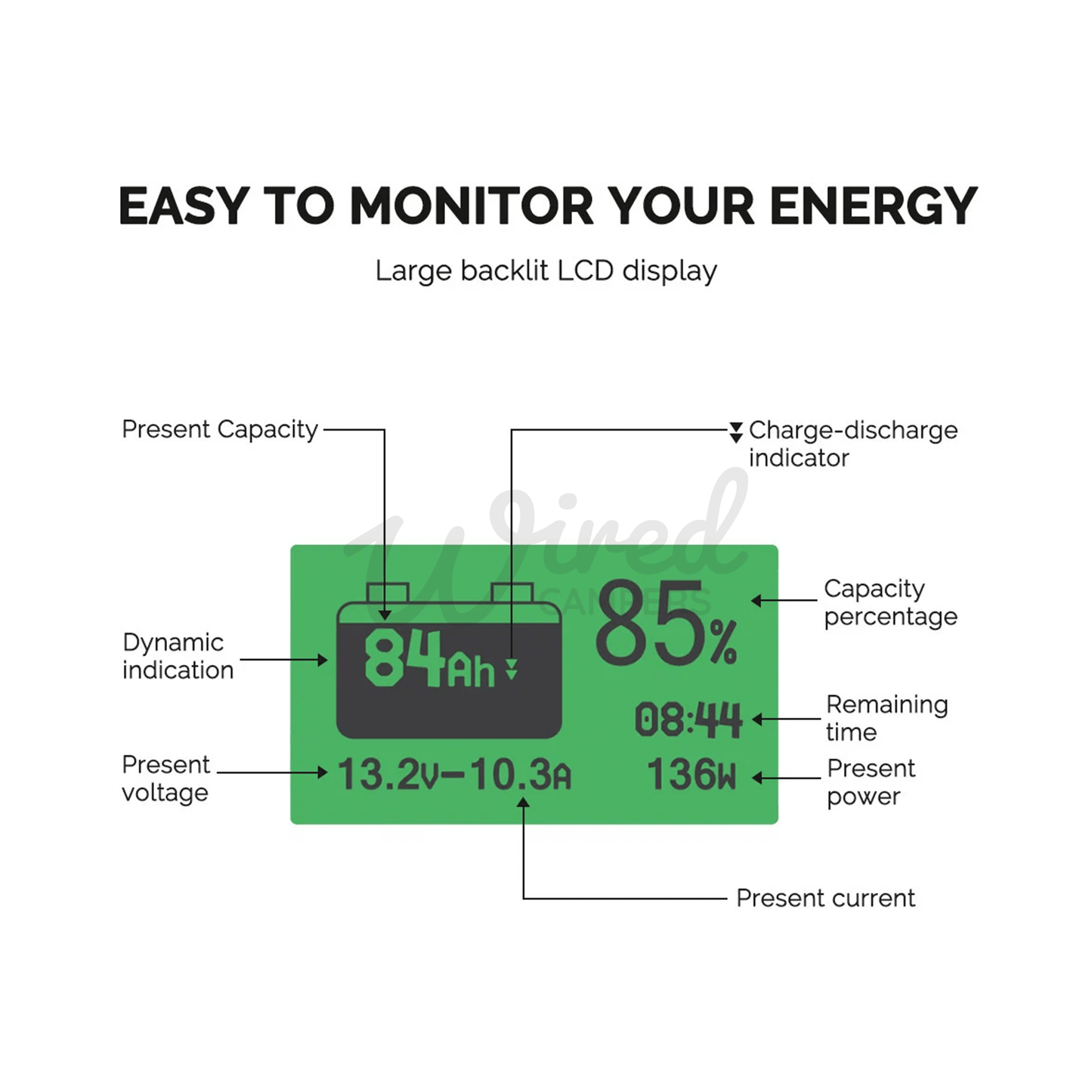

The clear LCD display provides essential battery information at a glance, including:

• Battery voltage
• Charging and discharging current
• Remaining battery capacity
• Consumed power
• Battery degradation information

Adjustable screen brightness makes the display easy to read while keeping power consumption low.

Protect Your Leisure Battery

Configurable high and low capacity alarms provide an additional level of battery protection. When a set limit is reached, the display alerts you, helping prevent excessive discharge and making it easier to manage your electrical system.

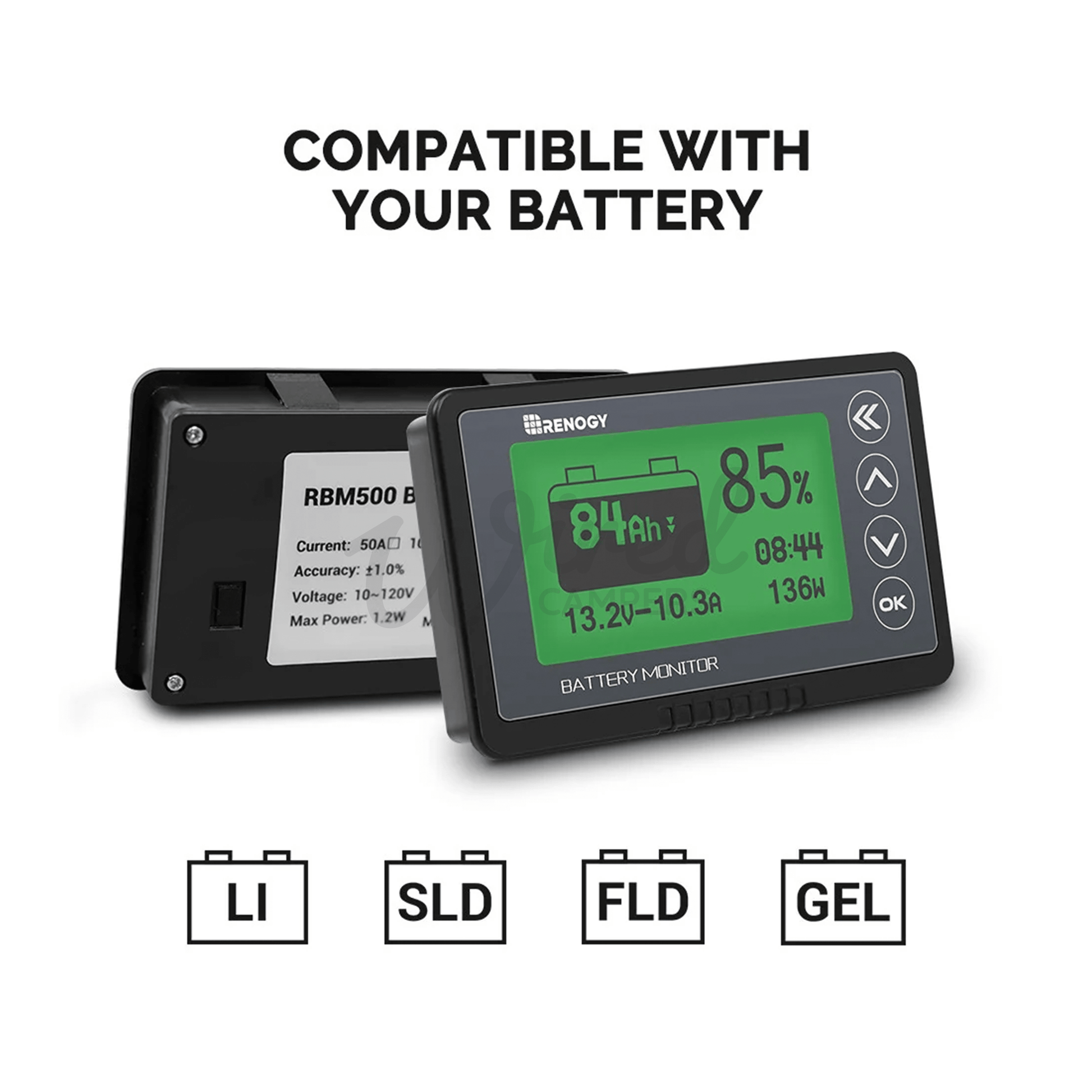

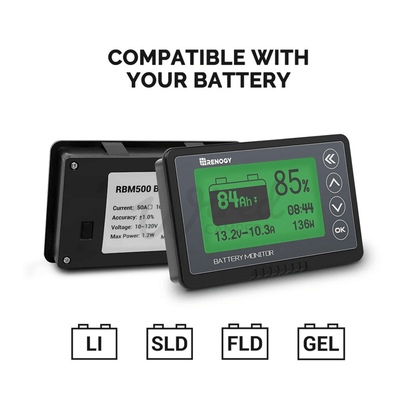

Suitable for Lithium & Lead-Acid Batteries

Compatible with a wide range of battery technologies including:

• LiFePO4 lithium batteries
• Lithium-ion batteries
• AGM batteries
• GEL batteries
• Lead-acid batteries

With a wide 10–120V operating range and current measurement up to 500A, it is suitable for everything from standard 12V camper van leisure battery systems to larger off-grid installations.

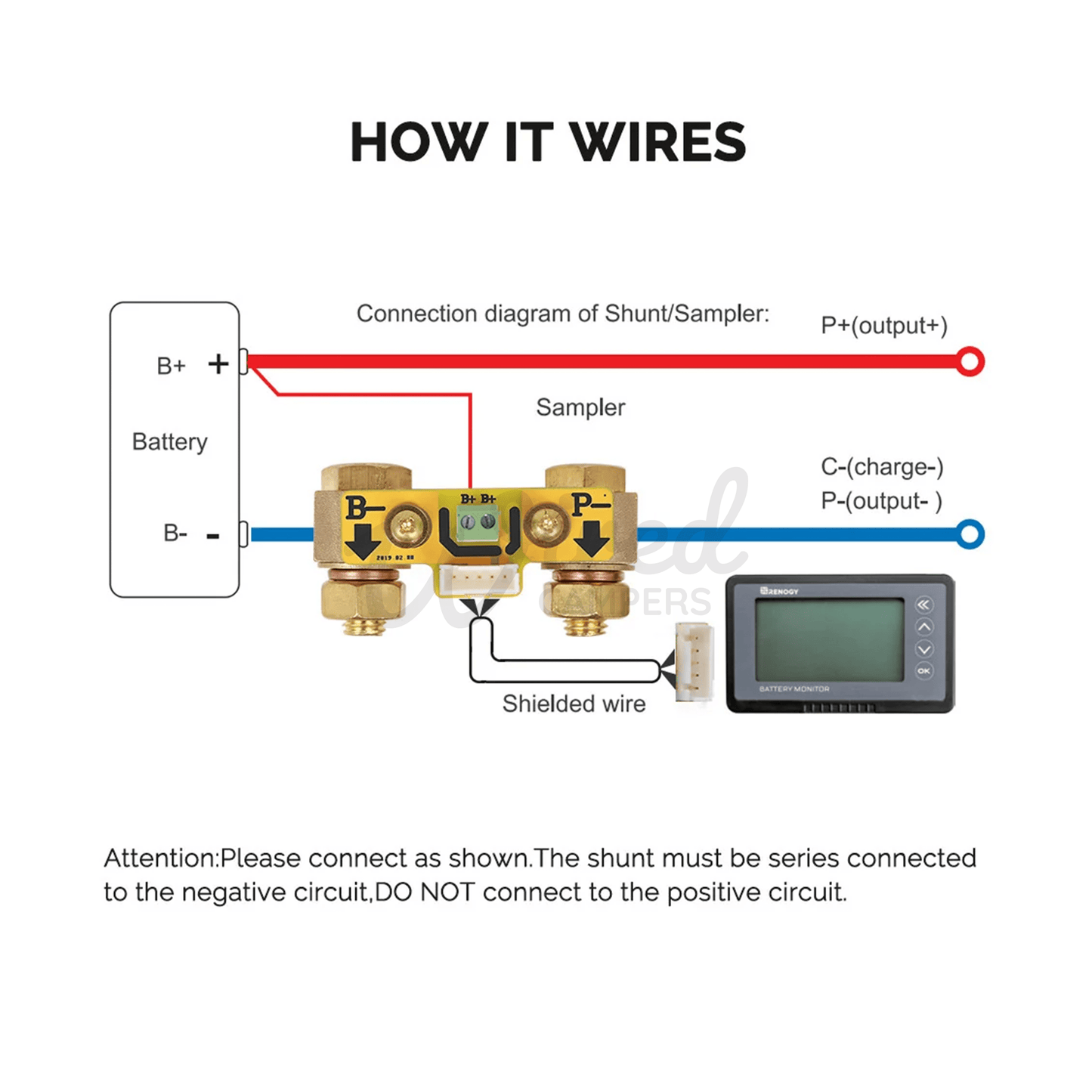

Easy Remote Installation

Supplied with a 6 metre shielded monitoring cable, the LCD display can be conveniently installed away from the battery compartment, making it ideal for camper van and motorhome installations.

Technical Specifications

• Maximum Current: 500A
• Working Voltage: 10–120V
• Capacity Range: 0.1–9999Ah
• Voltage Accuracy: ±1%
• Current Accuracy: ±1%
• Capacity Accuracy: ±1%
• Display: Adjustable green backlit LCD
• Shielded Cable Length: 6m
• LCD Dimensions: 99 x 61 x 18mm
• Operating Temperature: -10°C to 60°C

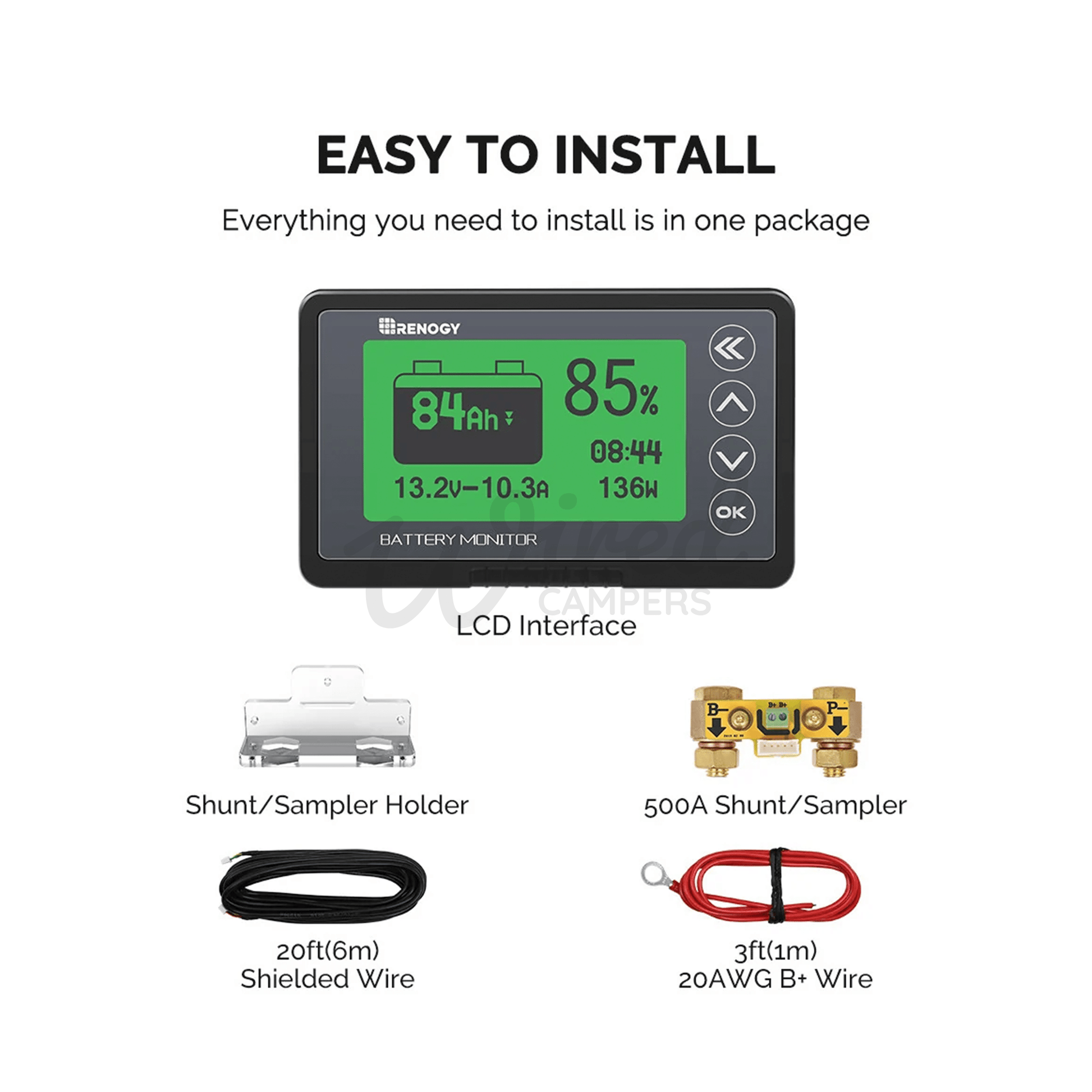

Package Includes

• Renogy LCD Battery Monitor
• 500A Shunt
• Shunt Holder
• 6m Shielded Cable
• B+ Connection Wire

A practical upgrade for any camper van leisure battery system, the Renogy 500A Battery Monitor makes it easy to keep track of your available power and manage your battery bank with greater confidence.
