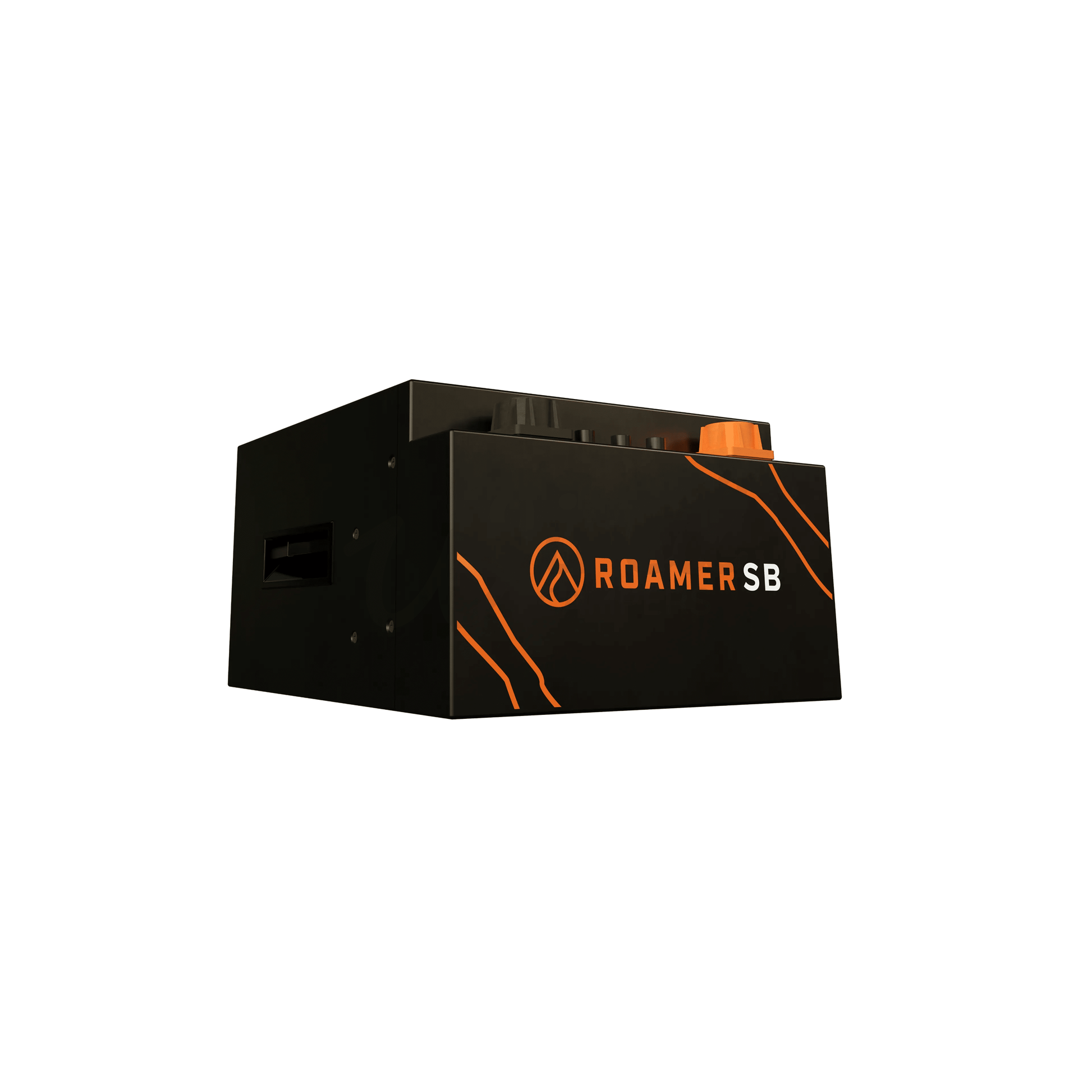

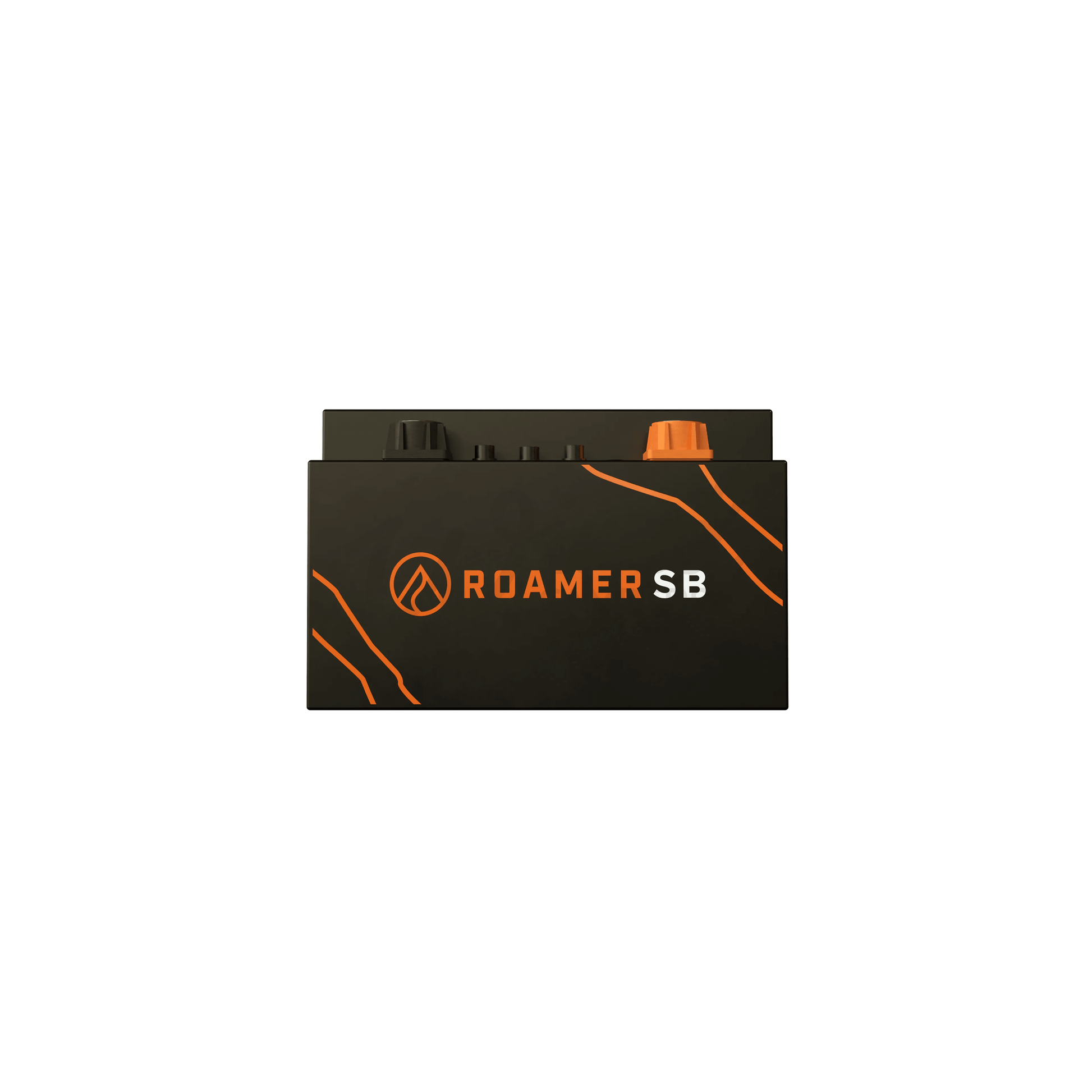

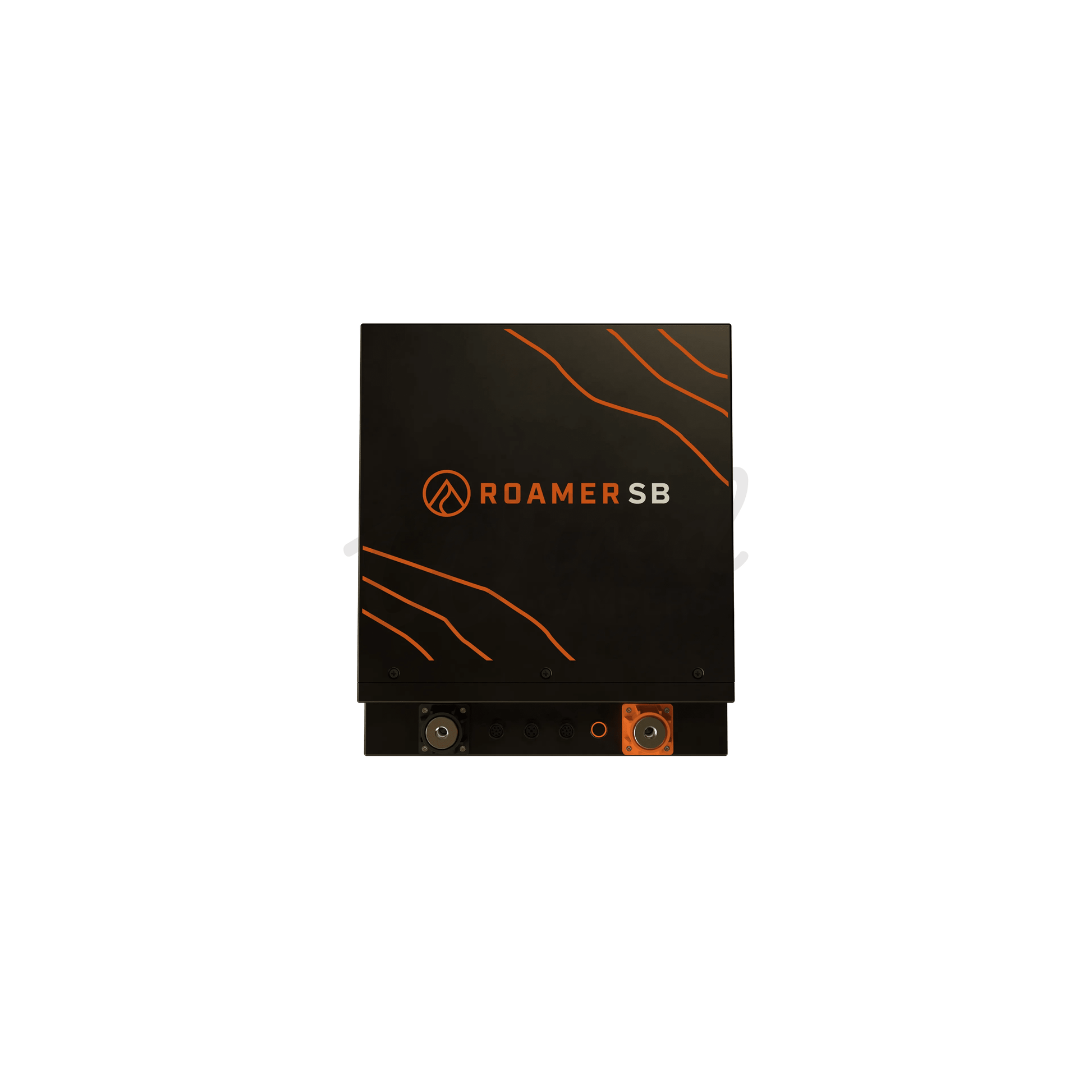

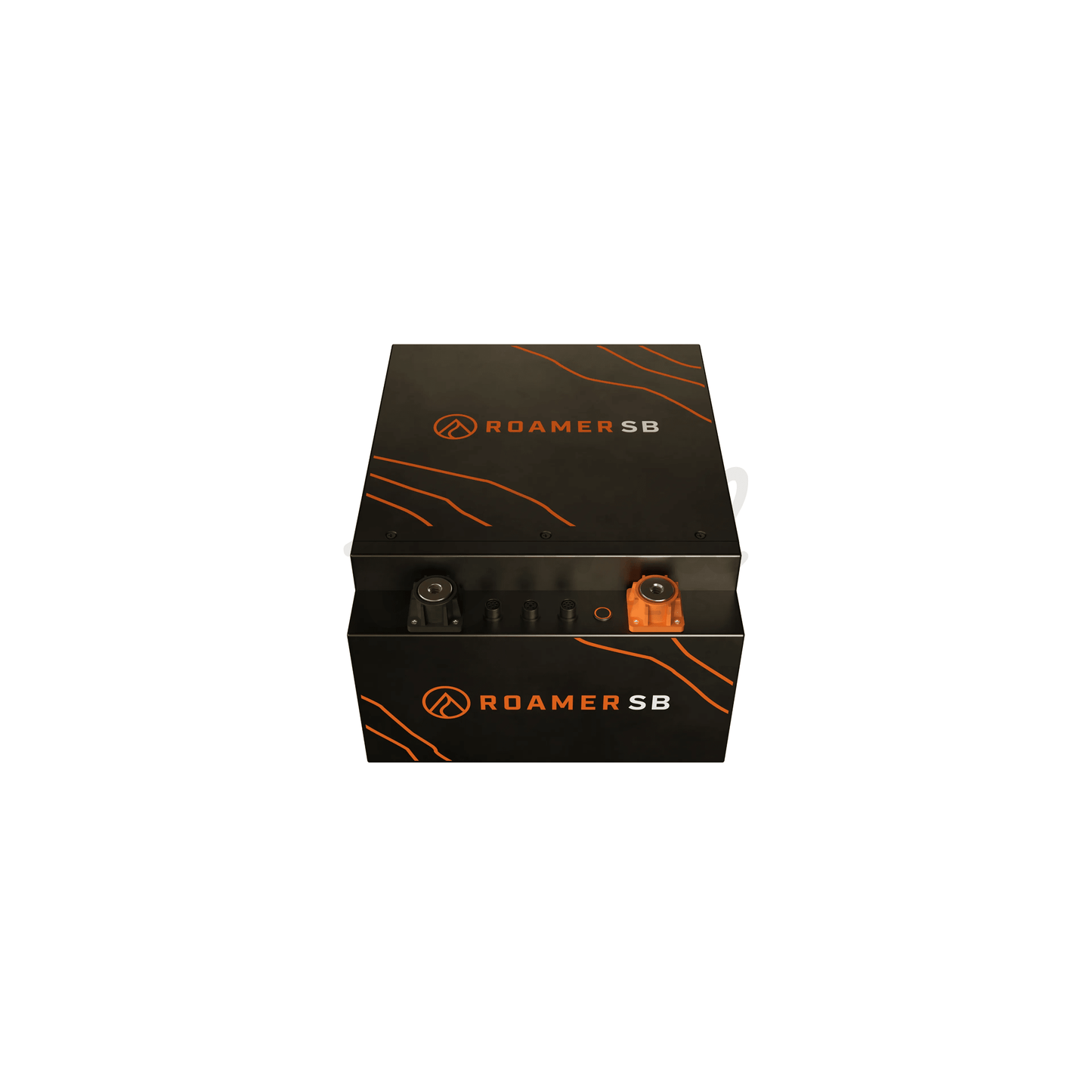

The bar has been raised yet again. Roamer were the original designers of the Seatbase battery design and while many have copied the format since then, the 5th generation Roamer 230SEATBASE5 is the best iteration yet. Grade A+ matched cells provide 230Ah of usable capacity while a high power Battery Management System (BMS) with Active Balancing allows up to 3600W of continuous power - all in a custom case that fits neatly under a camper van swivel seat.

A FRONT ROW SEAT

The 230SEATBASE5 is the newest version of the original low-profile LiFePO4 battery - designed for installation under a camper van swivel seat and tested with thousands of installations in almost every camper van model on the market including the VW T5/T6/T7, VW Crafter and Fiat/Vauxhall/Renault along with many coach built motorhomes.

Roamer used the same A+ grade matched cells and high-power BMS as their flagship 460SMART5, allowing them to fit massive amounts of capacity into a case. With a continuous charge/discharge rate of 300A, you can power any domestic appliance up to 3000W via an inverter. The upgraded BMS actively balances all internal cells, and also supports installation of multiple 230SEATBASE5 batteries in series or parallel - with auto balancing for parallel connected batteries. It also provides a complete range of protections including low temperature charging.

Maintaining excellent balance throughout its 20 year life expectancy, your Roamer will deliver stable, high power with every cycle. Their additional factory and warehouse testing processes ensure the highest possible quality and because they believe in their products, they back everything with a 12 year warranty.

To ensure maximum lifespan, every 230SEATBASE5 comes with a state-of-the-art internal Battery Management System (BMS) with Active Balancing - developed specifically for Roamer to support high power off-grid living.

TECHNICAL SPECIFICATION

• Capacity: 230Ah
• Energy Capacity - 2944Wh
• Nominal Voltage: 12.8V
• Typical Cycle Life - 8000 @ 80% DoD
• Max Continuous Discharge: 300A
• Recommended Continuous Discharge: 230A
• Max Continuous Charge: 300A
• Recommended Continuous Charge @ 25°C: 115A
• Max Continuous Power: 3600W
• Recommended Absorption Voltage - 14.4V
• Recommended Float Voltage - Disabled or 13.5V

• Monitoring: Bluetooth via Roamer App

• Warranty - 12 Years

• Dimensions: 285 (L) x 331 (W) x 182 (H)
• Weight: Approx 22Kg
