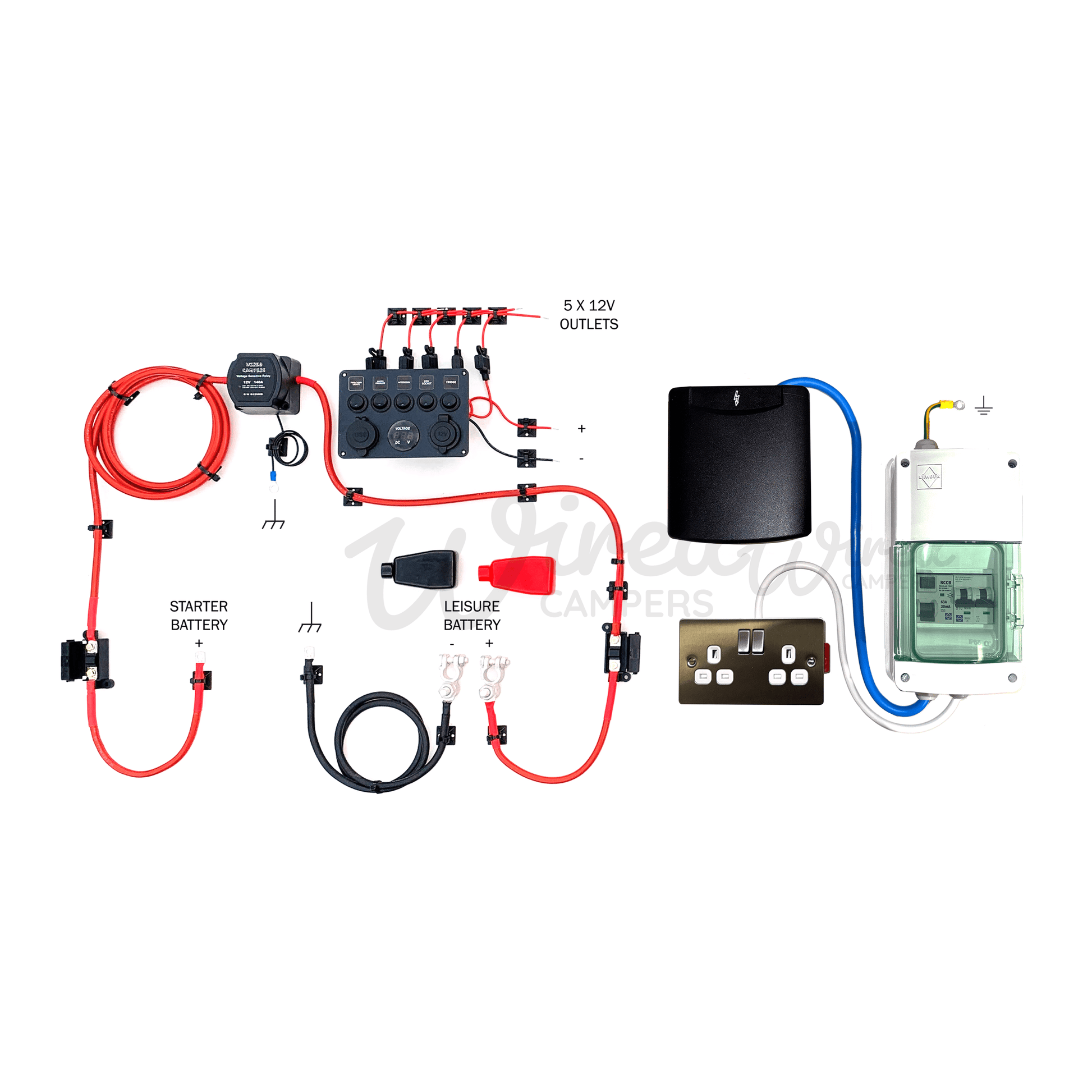

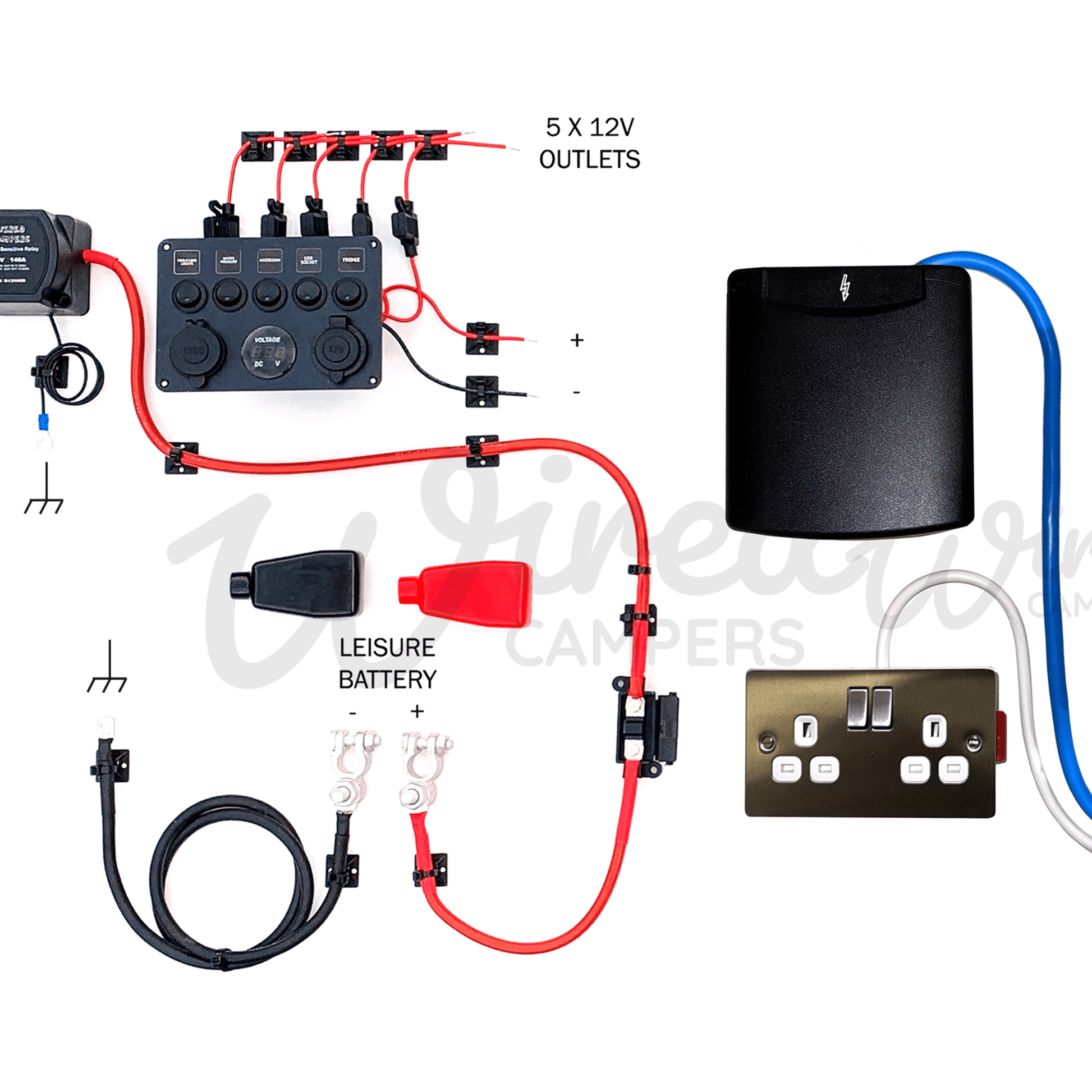

We have created this one in response to customers asking for a starter, or basic system. This kit will charge a leisure battery from your starter via the voltage sensitive relay, comes with a 12V five way control panel and pre-wired mains consumer unit.

AVAILABLE OPTIONS WITH THIS KIT

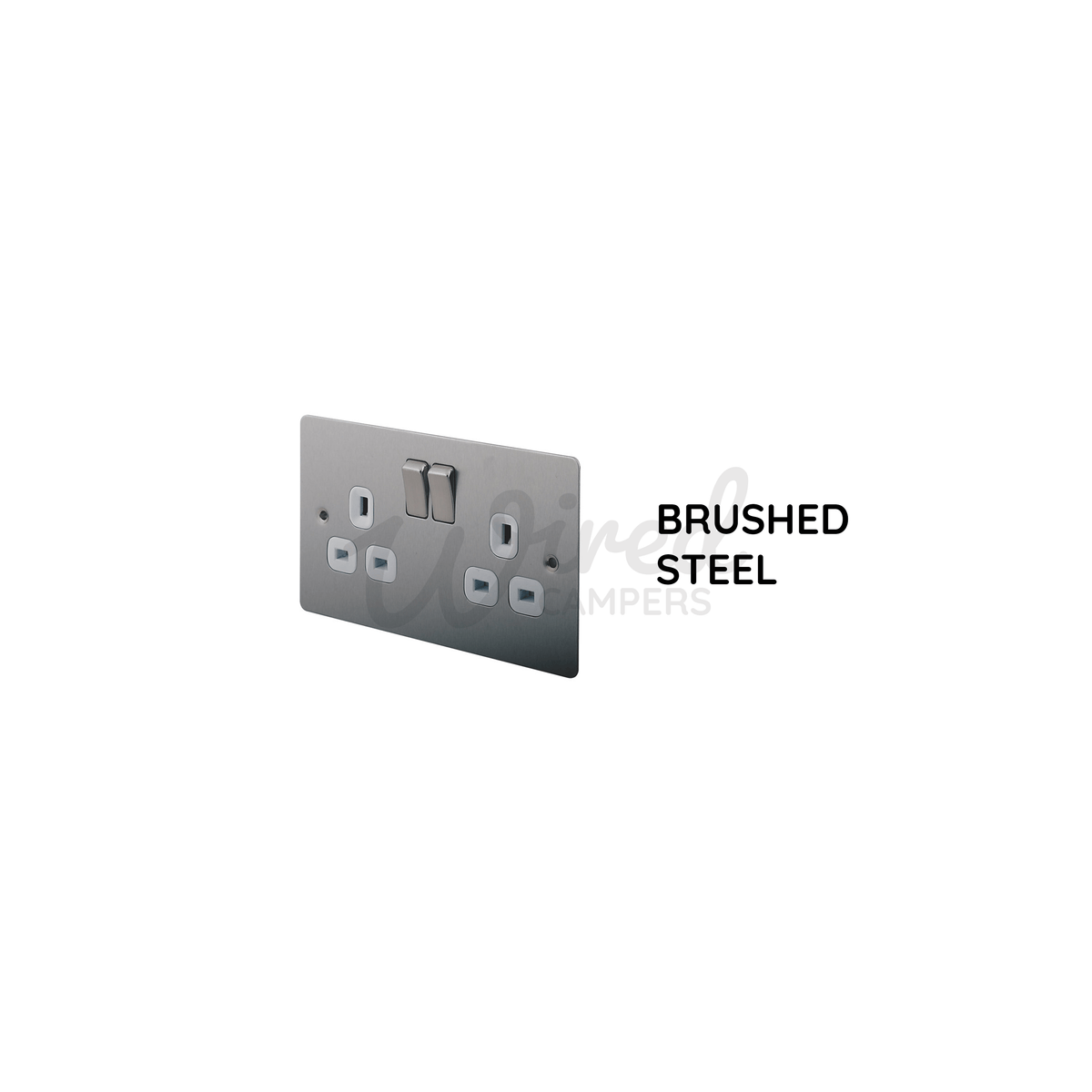

Socket Finish – This refers to the 13A sockets and switches that you will see once fitted into your furniture. These are available in Flat Brushed Steel or Raised Black Nickel finish in a standard UK 2 gang fitting, or they can be upgraded to one set of grey C-Line 13A sockets in a gunmetal grey 2 module frame (2 individual outlets in total). Please see the image of the sockets for colour/style reference.

Hook Up Type – This is the hook up you will install that will accept your 16A camp site hook up lead. We offer a surface mounted option designed to be hidden away under a bumper or panel, or a flush type similar to what you would find on a caravan setup. The flush option is available in either black or white to compliment your van.

WHAT DOES THE KIT OFFER?

In simple terms, this kit will provide you with a 12V on/off grid system and a small 240V mains hook up system.

You'll be able to keep your leisure battery topped up while on the move as it charges from your vehicle via the voltage sensitive relay. You can also wire up five 12V accessories (such as lights, water pump, fridge etc.) via the 5 gang main control panel which includes a built in voltmeter, dual USB ports, and a 12V socket.

When you get to site, just simply plug into the 16A hook up to get 240V running through your van to power a double socket.

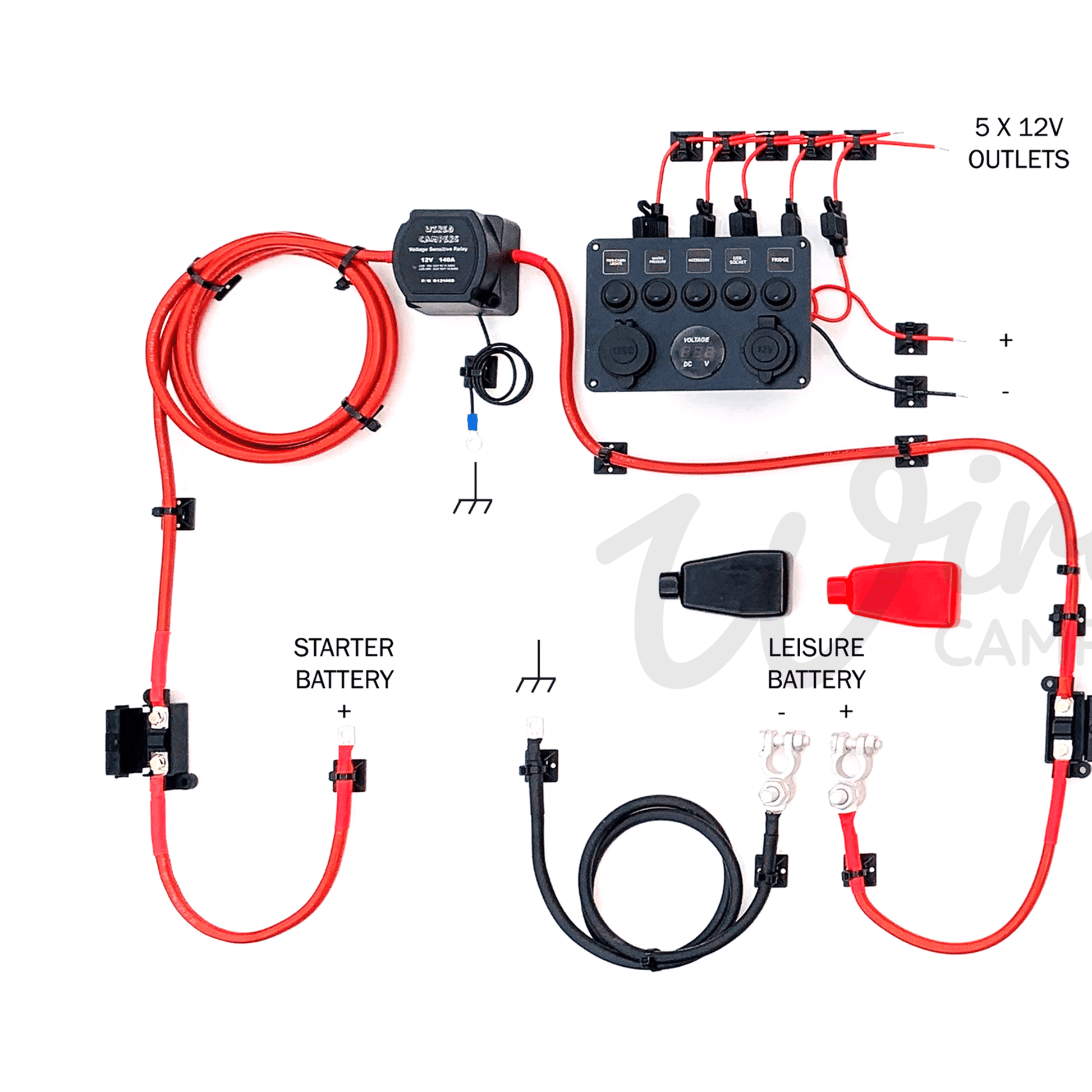

SPLIT CHARGE VOLTAGE SENSITIVE RELAY (VSR) KIT

This comes with all parts required to enable you to charge up your camper vans leisure battery using the starter battery/alternator of your vehicle. Included in the kit is a voltage sensitive relay that only draws power and charges your leisure battery when your starter battery is at a certain voltage. This ensures that you never end up with a flat battery in your vehicle... which is always handy.

Please note, VSR’s are only compatible with vehicles without a smart alternator, regenerative braking, or stop/start technology. If you're unsure please just drop us a message.

TECHNICAL DETAILS

• 12V 140A Voltage Sensitive Relay
• 5M 16mm2 Red High Flex Battery Cable
• 1M 16mm2 Black High Flex Battery Cable
• 1 X Positive Leisure Battery Terminal
• 1 X Negative Leisure Battery Terminal
• 2 X Battery Terminal Cover
• 2 X Bolt Down Fuse Holders
• 2 X 100AMP Fuses
• 2 X 8mm Copper Crimp Terminals
• 8 X 6mm Cooper Crimp Terminals
• 2 X 70mm Black Heat Shrink
• 8 X 70mm Red Heat Shrink

MAIN 12V CAMPER VAN CONTROL PANEL

This is the main control panel for your camper van, from this, you can control up to five 12v accessories. The control panel is pre-wired for quick fitting, and the outlets are already complete with in-line fuse holders and fuses fitted.

As well as the switched outlets, the panel also comes with a voltmeter to show the current voltage of your leisure battery, a standard 12V port, and two USB A ports for charging phones etc.

5M FUSED EASY LEAD

We've had this lead made to reduce the faff when installing the main control panel into your van.

This lead makes connections a breeze, simply install the ring terminals onto your leisure battery and connect the wires up to the panel

TECHNICAL DETAILS

• 5M lead length
• Moulded blade fuse holder
• Crimped and moulded 8MM ring terminals
• Comes with a 10A blade fuse to power the control panel.
• Max current - 10A

FIVE WAY NEGATIVE BUS BAR

This is included in the kit as a central location to terminate all your 12V accessory negatives from the control panel.

TECHNICAL DETAILS

• Max - 100A 48V
• Number of screw terminals - 5
• Number of studs - 2

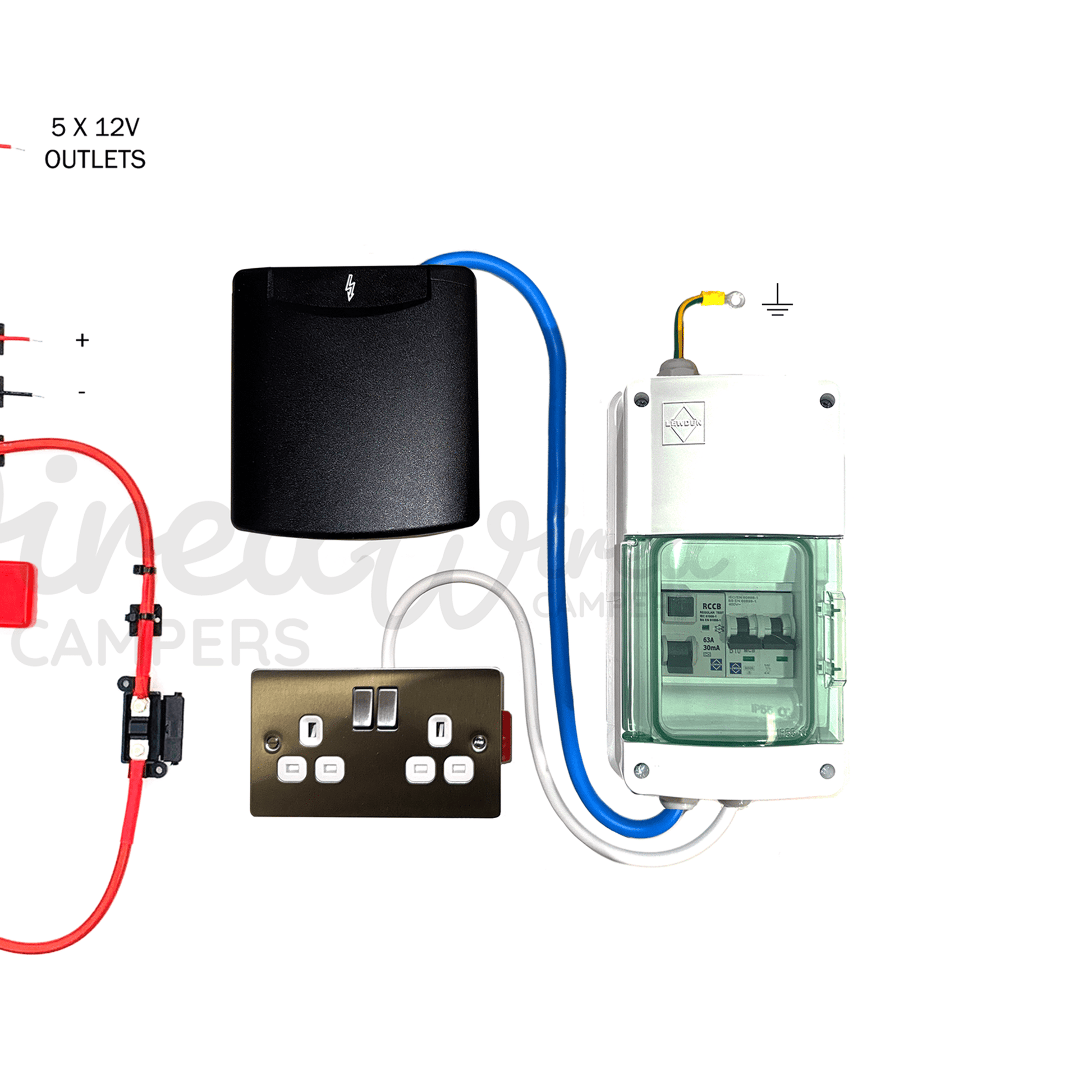

240V MAINS HOOK UP KIT

This is the mains consumer unit which distributes power from the site supply to the outlets. We have pre-wired the consumer unit for you in-house. All that's required once installed, would be to attach the sockets and 16A hook up point. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

When using your camper in the EU, they tend to use a system where the natural is not earthed, having double pole equipment ensures a higher level of safety. The outlets are also individually protected by their own MCBs as per regulations.

• Hook Up Cable Length - 5M
• Outlet Cable Length - 3M
• 1 X 13A Double Socket or C-Line equivalent
• 1 X Backboxes or C-Line equivalent
• 16A Magnetic Hook Up Point

ADDITIONAL ITEMS

To help with the install, we also include 100 X Cable ties and 100 X Cable tie bases with the kit.

ADDITIONAL IMPORTANT INFORMATION

As with all the kits and layouts provided on our site, they serve as a guide only. All wiring and installation must be carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.

ELECTRICAL INSTALLATONS MUST BE COMPLETED BY A QUALIFIED PROFESSIONAL. WIRING SHOULD BE IN ACCORDANCE WITH THE LATEST EDITION OF THE IET REGULATONS (BS 7671).
