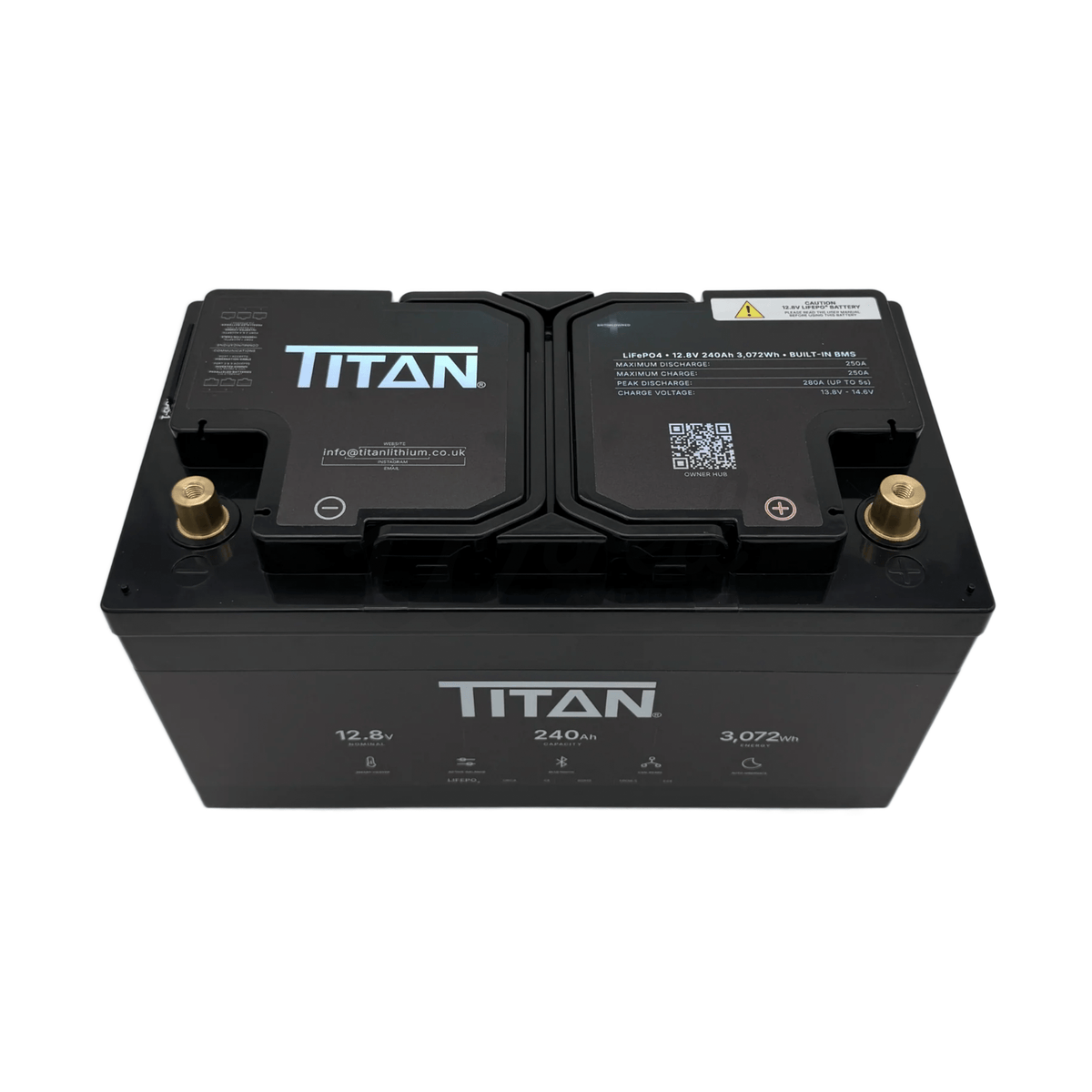

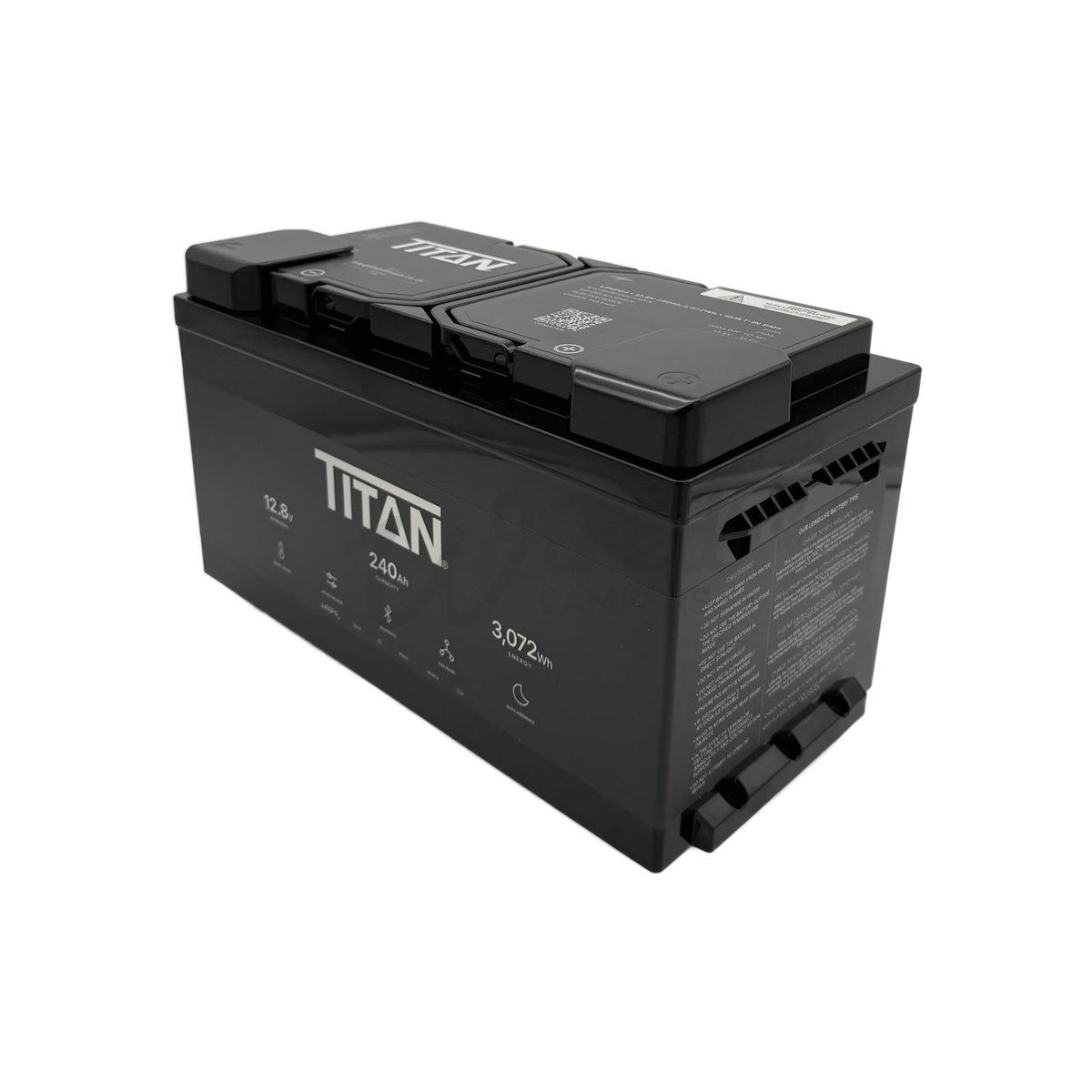

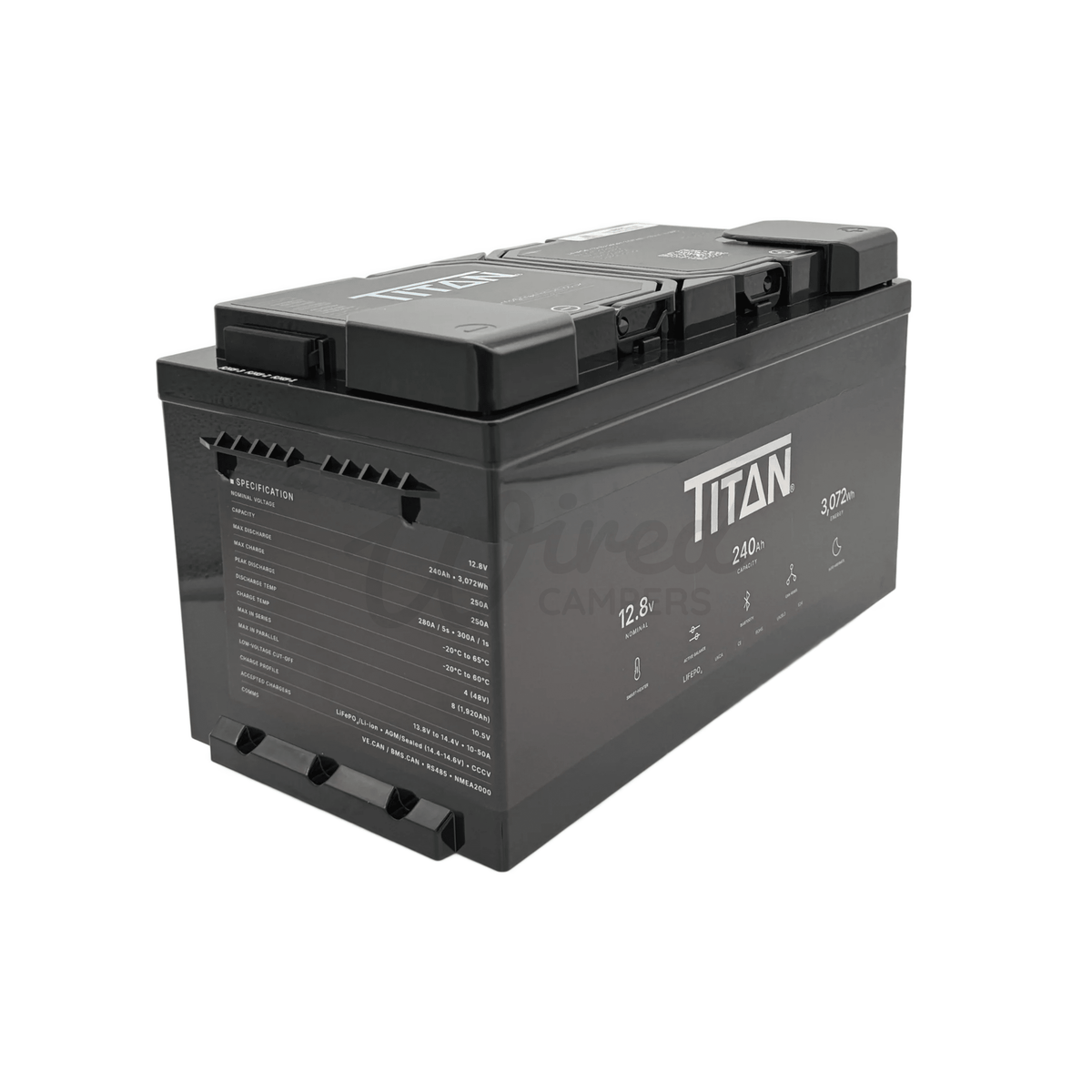

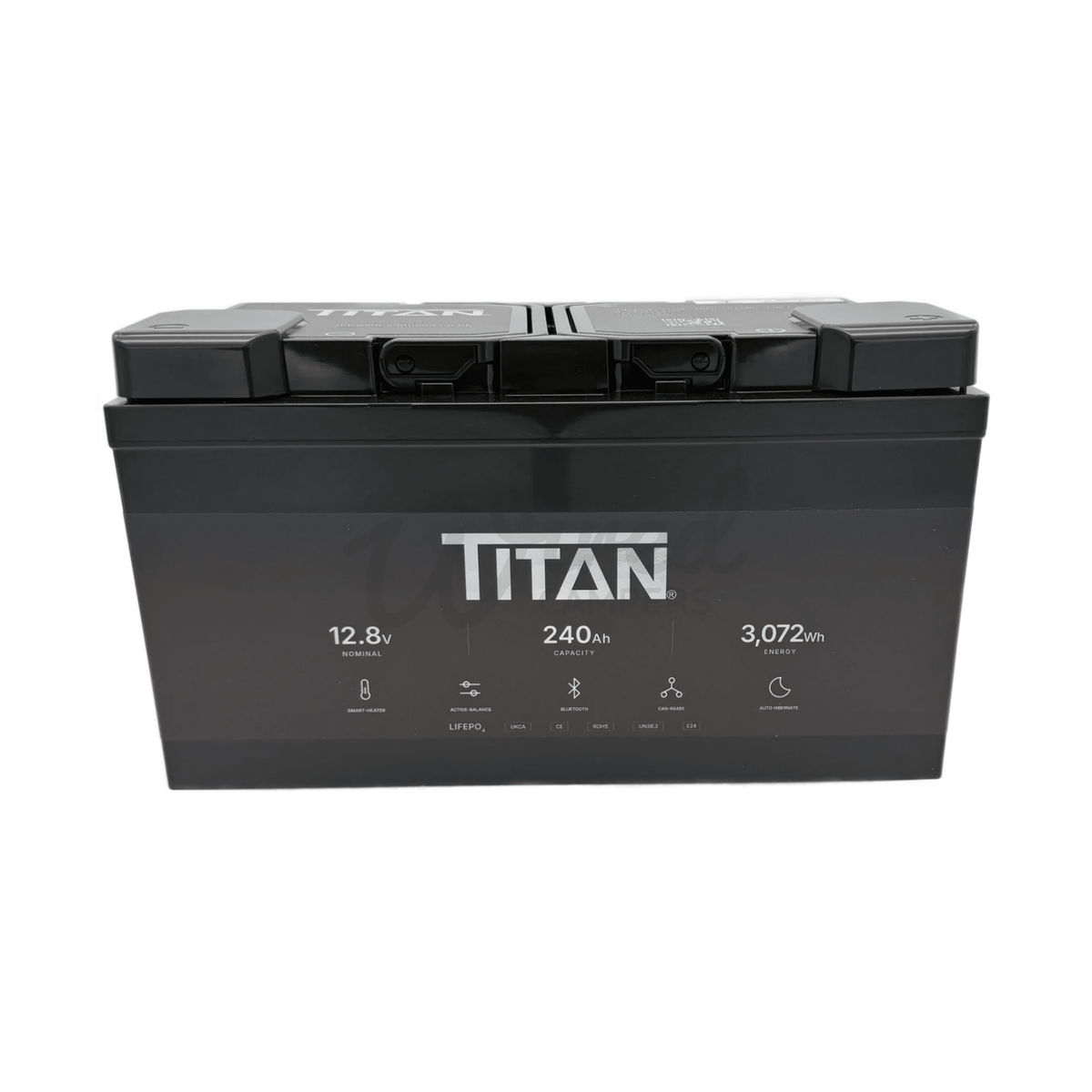

TITAN 12V 240Ah DIN Type 019 Heated Lithium LiFePO4 Leisure Battery With Bluetooth

A world first: 240Ah in a plastic-cased DIN Type 019 footprint. This is the highest-capacity plastic-cased Type 019 battery in the world, and only TITAN builds one. Made for serious off-grid setups, long-tour motorhomes and heavy-duty installs that want maximum real-world capacity without upsizing the battery bay, it delivers 3,072Wh of usable energy at 12.8V with 250A continuous BMS output. The case is an 019 DIN replacement for lead-acid (Varta LFD90, Varta LED95, Banner 95751, Numax DC25MF, Exide ER550), so it drops into existing trays without reworking the mount.

• 3,072Wh usable, up to 252Ah in practice
• 250A continuous BMS discharge
• 19.5kg - replaces around 143kg of lead-acid for the same usable Wh
• World-record plastic-cased DIN capacity - no other manufacturer makes a 240Ah Type 019 in this case format
• Native Victron CANBUS, RS485 and NMEA2000 on request
• Built-in heater mat, safe charging down to -30°C
• Lifetime, transferable warranty

Case height is 190mm as standard. It can be mounted on its side to drop overall height to 175mm where fitting space is tight.

The TITAN Difference - Most people compare three numbers. These are the ones that decide it.

Voltage, capacity and price are easy to line up, and every lithium battery on the market looks much the same when you do. What follows is the part that only shows itself later, once the battery is in your vehicle and you are relying on it.

Lifetime Warranty - Cover you will probably never have to use

Lithium is a real spend, and the whole point of spending it is to stop buying batteries. So the warranty runs for the life of the battery rather than to a date we picked, and it transfers with the vehicle if you sell up. It is module-based, which means a fault gets repaired rather than the whole pack written off.

252Ah - You tend to get more than the label promises

TITAN's BMS is tuned to the exact cells sitting in the case rather than set to a generic profile, so they can run them to their real working limits. That usually pulls another 5 to 10% out of the pack, which is why a 240Ah will often read nearer 252Ah when it is full. The BMS remaps its own 100% automatically, so the app shows you what is actually there rather than what the sticker says.

Every battery checked in Cheltenham - Nothing leaves TITAN untested

Every battery passes through TITAN's QC bay in Cheltenham before it is boxed. Visual inspection, comms and Bluetooth tested, and all functions checked for correct operation. It is the unglamorous end of the job and it is the reason most problems get caught by TITAN instead of by you, halfway up a hill in the rain.

Nine brands read by the app - The app reads the kit you already own

Victron, Renogy, Thornwave, Mopeka, Gobius, Safiery, Ruuvi, EcoFlow and Simarine all sit alongside your battery on one screen, so your solar, your tanks and your shunt stop living in four different apps. Nothing is taken away from you either. TITAN listens to what those devices already broadcast, so your existing apps carry on working exactly as they did.

Family business since 1948 - Quiet support, until the day you want it

Most owners never contact TITAN, and that is rather the point. When something does look wrong, you get a person in Cheltenham who knows the product, and the answer is usually a five minute conversation about a standby load or a terminal that has worked loose. They have been a family battery business since 1948, so there is a good chance they have seen it before.

TECHNICAL SPECIFICATIONS

• Nominal Capacity - 240Ah
• Energy - 3072Wh
• Cell Chemistry - Lithium Iron Phosphate
• Cell Nominal Voltage - 3.2V *4 (12.8V)
• Cycle Life - 6000 @ 800% DOD
• Maximum Continuous Discharge - 250A

• Maximum Continuous Charge - 250A
• Nominal Voltage - 12.8V
• Discharge Cut Off Voltage - 10V
• Discharge Temperature Range - -20°C to 65°C
• Charge Temperature Range - -30°C to 60°C

• Measurements - 352mm x 180mm x 190mm
• Weight - 19.5KG
