We have created this kit to for people that may already have a complete 12V setup in their camper van and want to add on an off grid mains system.

AVAILABLE OPTIONS WITH THIS KIT

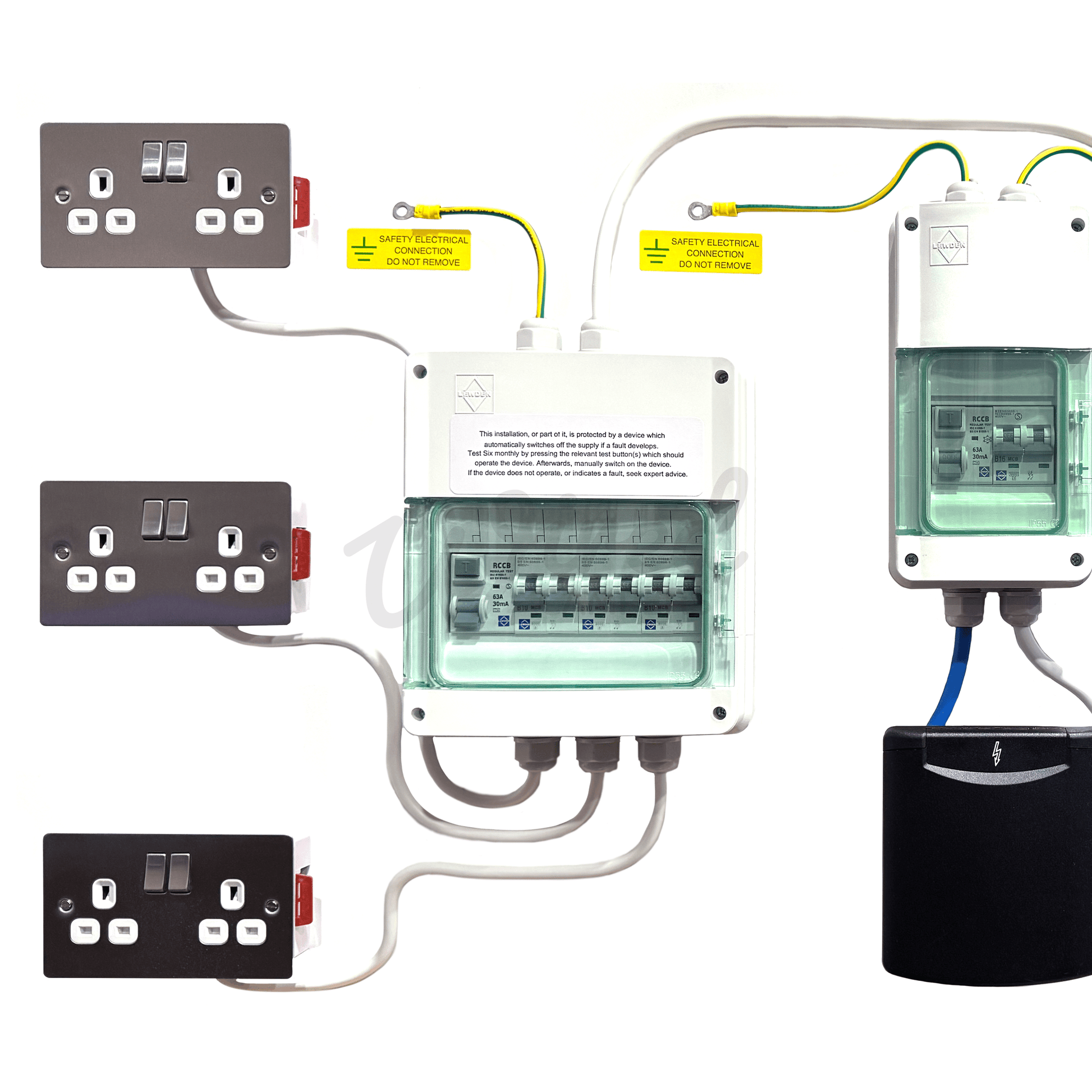

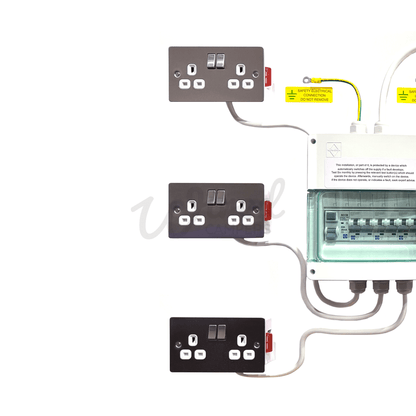

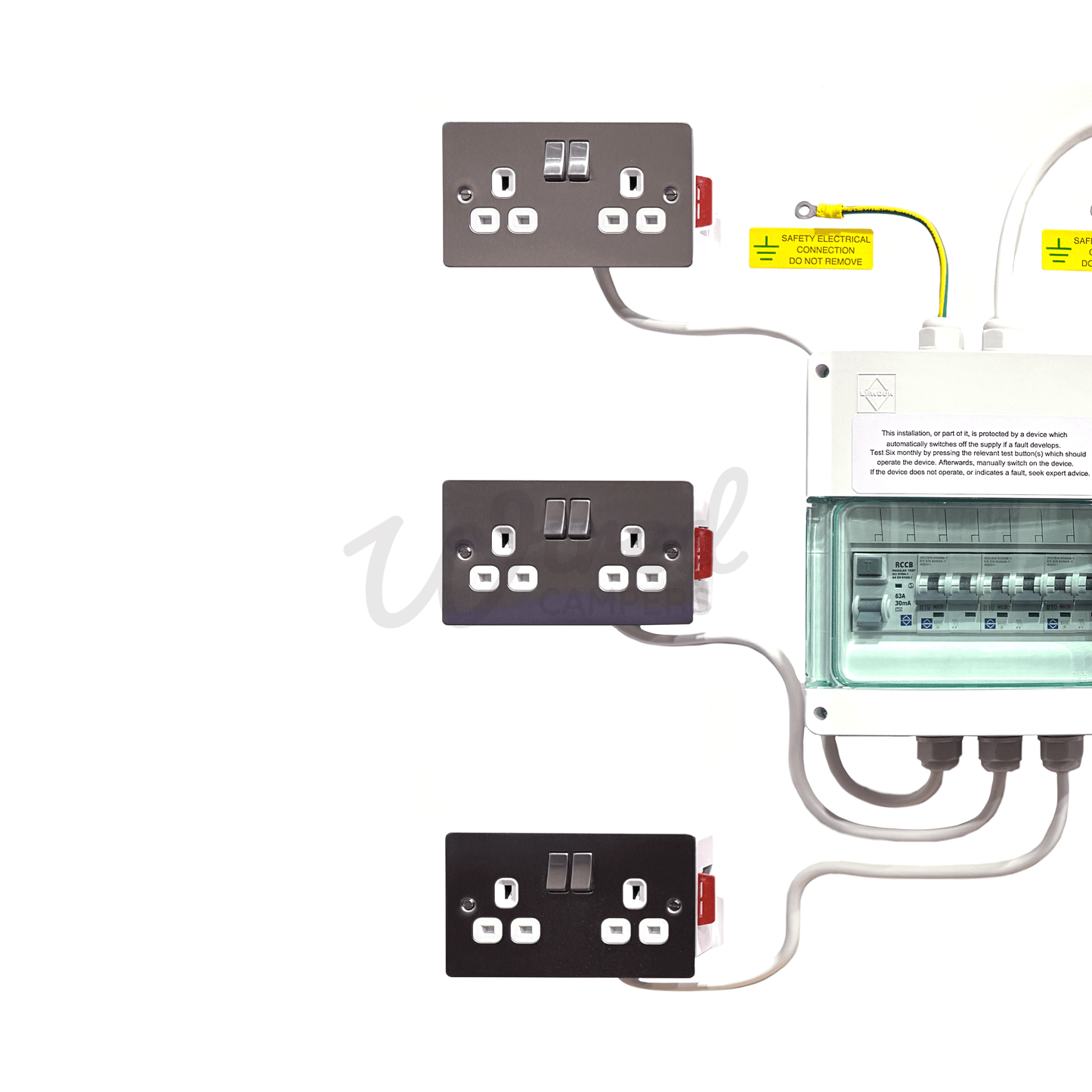

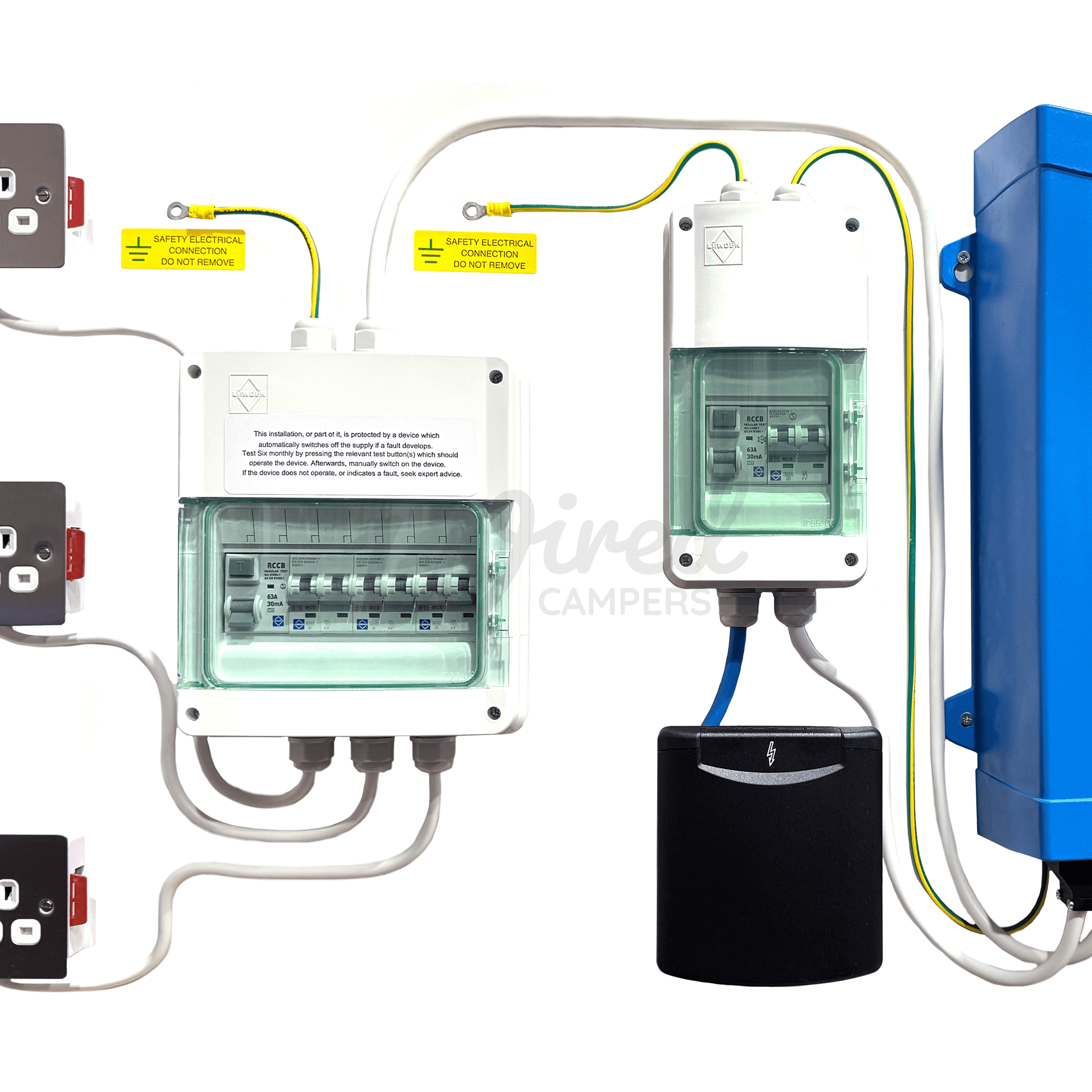

Socket Finish – This refers to the 13A sockets and switches that you will see once fitted into your furniture. These are available in Flat Black Nickel, Flat Brushed Steel, or a Raised Matt Black finish in a standard UK 2 gang fitting, or they can be upgraded to three sets of grey C-Line 13A sockets in a gunmetal grey 2 module frame (6 individual outlets in total). Please see the image of the sockets for colour/style reference.

240V Mains Consumer Unit – This is the mains consumer unit which distributes power from the site supply to the outlets. This can either be provided to you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

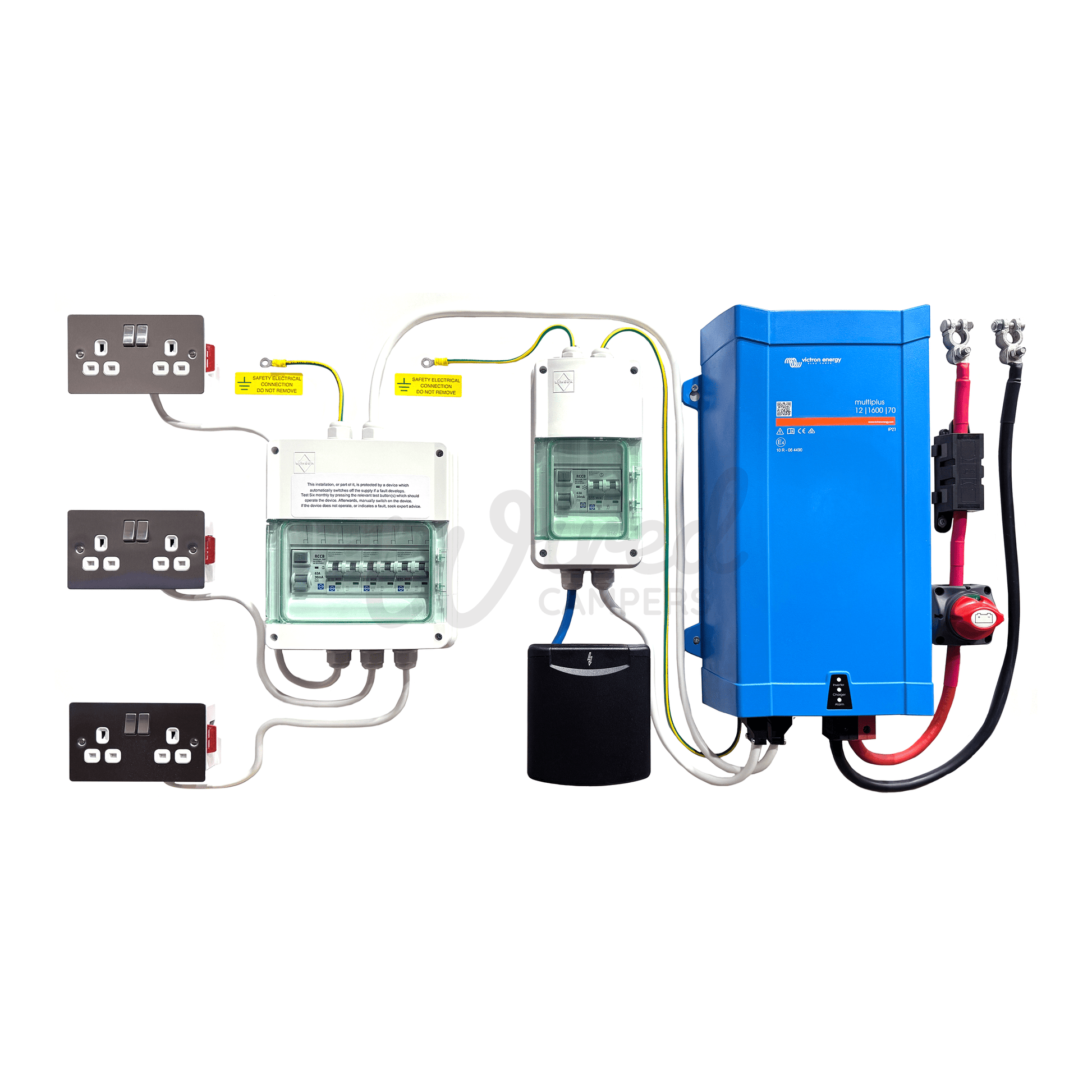

COMPONENTS

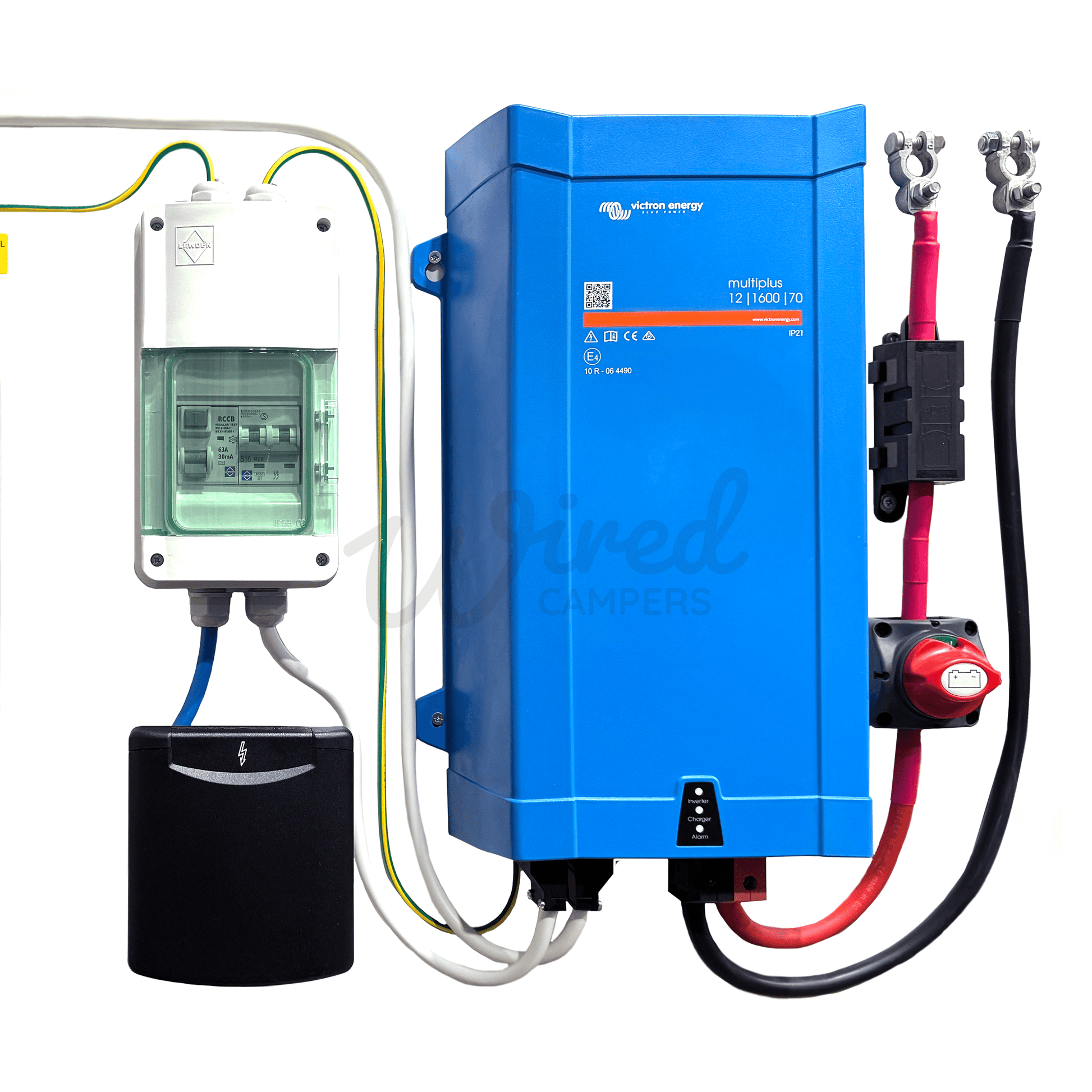

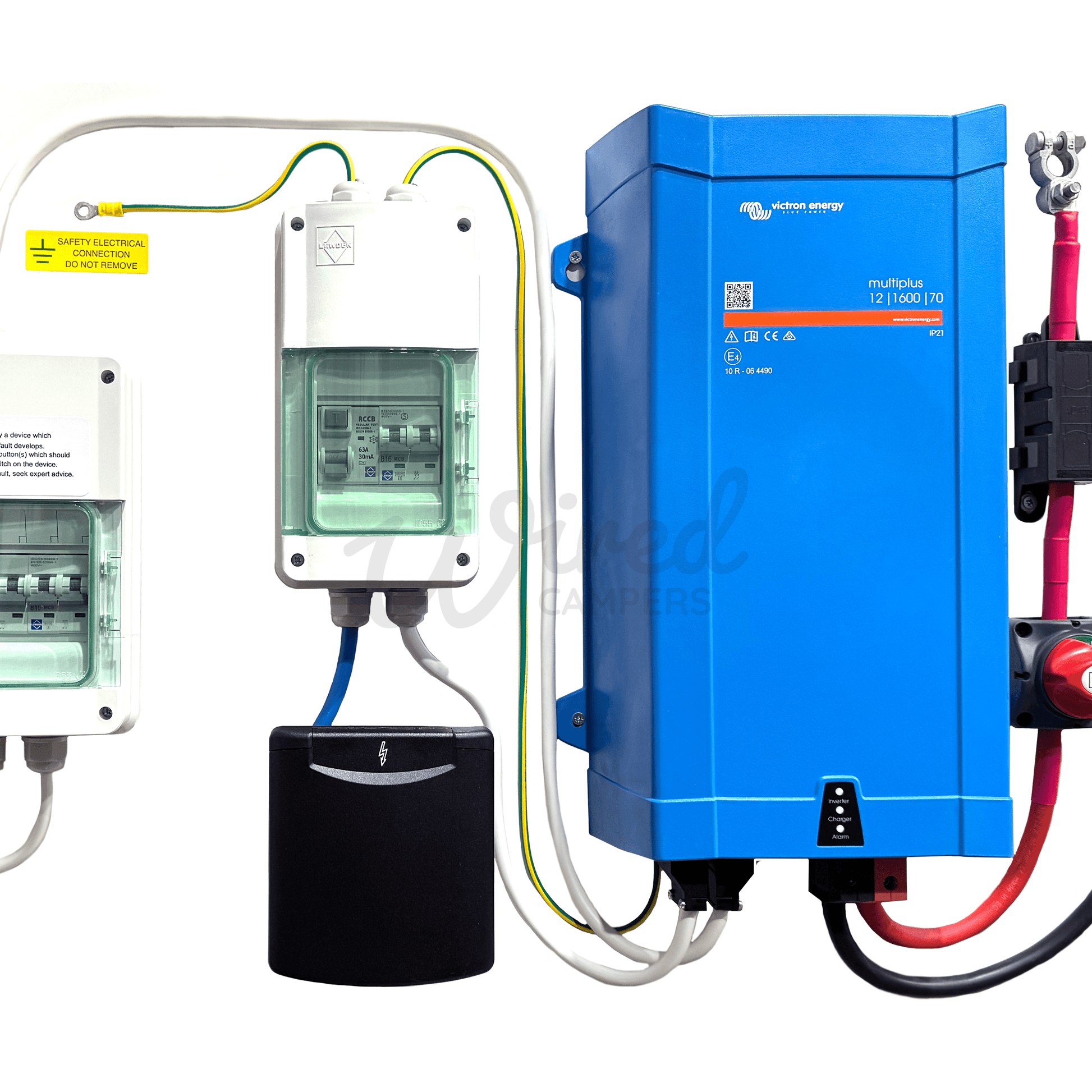

VICTRON ENERGY MULTIPLUS 12/1600/70 INVERTER CHARGER

This new style Victron MultiPlus 1600VA is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a highspeed AC transfer switch in a single compact enclosure.

• Input voltage range - 9.5 – 17V
• Output Output voltage - 230VAC ± 2% Frequency: 50Hz ± 0,1% (1)
• Cont. output power at 25°C(3) - 1600VA
• Cont. output power at 25°C - 1300W
• Cont. output power at 40°C - 1100W
• Cont. output power at 65°C - 800W
• Peak power - 2800W
• Maximum efficiency - 93%
• Zero-load power - 10W
• Zero-load power in search mode - 3W
• AC Input - Input voltage range: 187-265VAC / Input frequency: 45 – 65Hz
• Charge voltage 'absorption' - 14.4V
• Charge voltage 'float' - 13.8V
• Storage mode - 13.2V
• Leisure battery charge current - 70A
• Starter battery charge current - 1A
• Battery temperature sensor - Yes
• Weight - 10.2KG
• Dimensions (hxwxd) - 470 x 265 x 120 mm

INCOMING MAINS CONSUMER UNIT

This part of the kit is available in two forms; we can either provide you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please just select your preference from the "240V Mains Consumer Unit" option above. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

This is a small mains consumer unit that runs from the surface mount 16A hook up point on the outside of your van and feeds the input of the inverter. This protects the inverter from any power surges and overloads and is the first point of safety, providing an earth to both the inverter body and the chassis of your camper van.

• 4 Way plastic consumer unit
• 30mA 63A Double pole Type A RCD
• 16A Double pole MCB
• 100A DP Bus bar
• Surface mounted 16A magnetic hook up point (Available in black or white)
• Relevant electrical safety stickers
• Hook up input - 4.0mm² three core arctic flex - 5M
• Inverter input - 2.5mm² three core flex - 2M
• Inverter earth (Terminated with ring terminal) - 6mm² tri rated flex - 2M
• Vehicle earth (Terminated with ring terminal) 6mm² tri rated flex - 2M

OUTGOING MAINS CONSUMER UNIT

This part of the kit is available in two forms; we can either provide you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please just select your preference from the "240V Mains Consumer Unit" option above. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

This is the central mains consumer unit for the camper van. This takes the output from the inverter/hook up and feeds the power via double pole RCD's and MCB's to the mains sockets and switches.

• 8 Way plastic consumer unit
• 30mA 63A Double pole Type A RCD
• 3 X 10A Double pole MCB's
• 100A DP Bus bar
• 3 X 13A UK double sockets  or C-Line alternative
• 3 X double surface mount back boxes or C-Line alternative
• Single surface mount back box
• Inverter output - 2.5mm² three core flex - 2M
• Sockets & Switches - 1.5mm² three core flex - 3M each
• Vehicle earth (Terminated with ring terminal) 6mm² tri rated flex - 2M

ADDITIONAL ITEMS

• 275A Battery Isolator
• MEGA Fuse holder and fuse
• Battery terminals with PVC covers
• 50mm² Red Positive Hi Flex - 3M
• 50mm² Black Negative Hi Flex - 3M
• Assorted ring terminals and connections to complete the installation.
• 100 X Cable ties and bases

ADDITIONAL IMPORTANT INFORMATION

As with all the kits and layouts provided on our site, they serve as a guide only. All wiring and installation must be carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.

ELECTRICAL INSTALLATONS MUST BE COMPLETED BY A QUALIFIED PROFESSIONAL. WIRING SHOULD BE IN ACCORDANCE WITH THE LATEST EDITION OF THE IET REGULATONS (BS 7671).
