We have created this kit to for people that may already have a complete 12V setup in their camper van and want to add on an off grid mains system.

AVAILABLE OPTIONS WITH THIS KIT

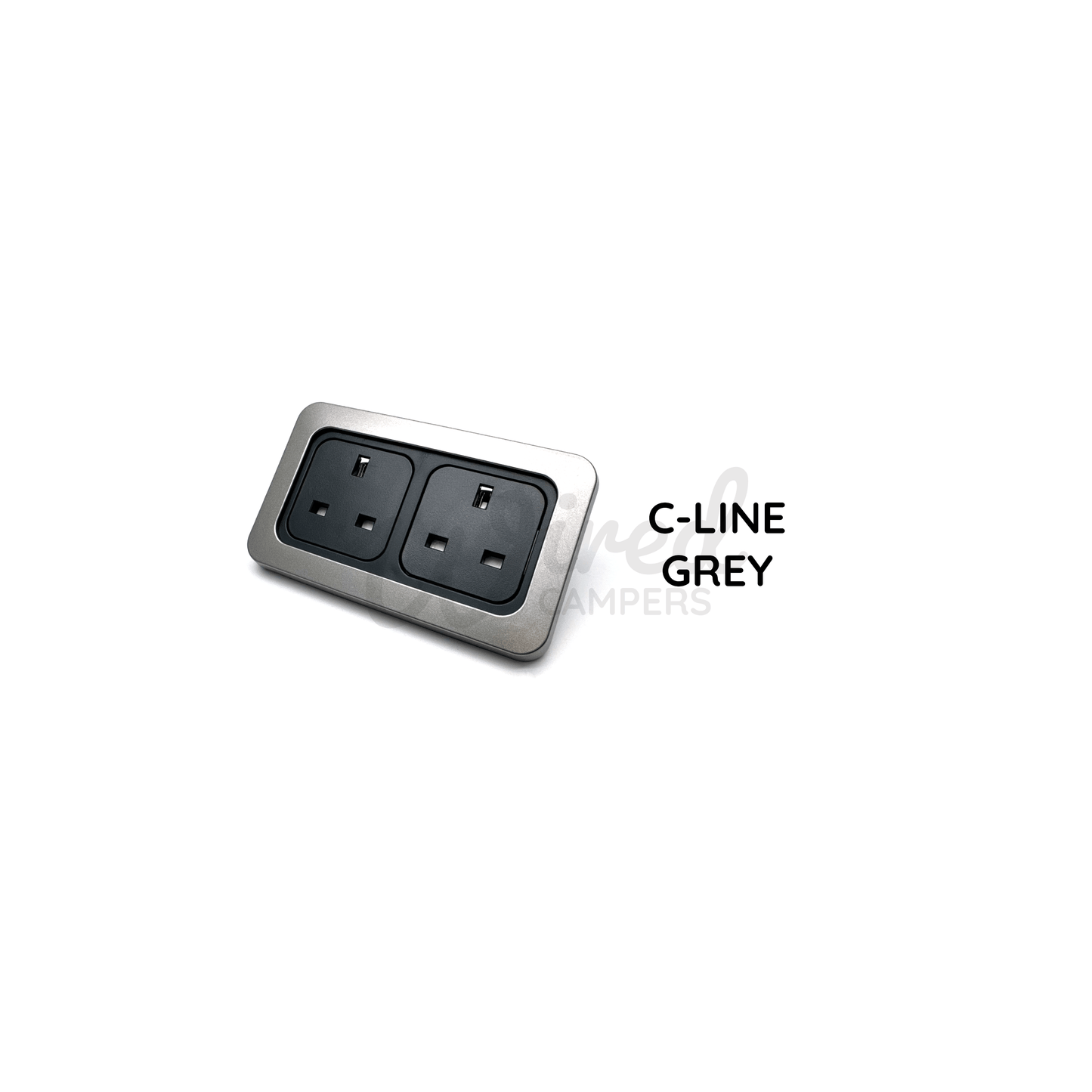

Socket Finish – This refers to the 13A sockets and switches that you will see once fitted into your furniture. These are available in Flat Black Nickel, Flat Brushed Steel, or a Raised Matt Black finish in a standard UK 2 gang fitting, or they can be upgraded to three sets of grey C-Line 13A sockets in a gunmetal grey 2 module frame (6 individual outlets in total). Please see the image of the sockets for colour/style reference.

240V Mains Consumer Unit – This is the mains consumer unit which distributes power from the site supply to the outlets. This can either be provided to you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

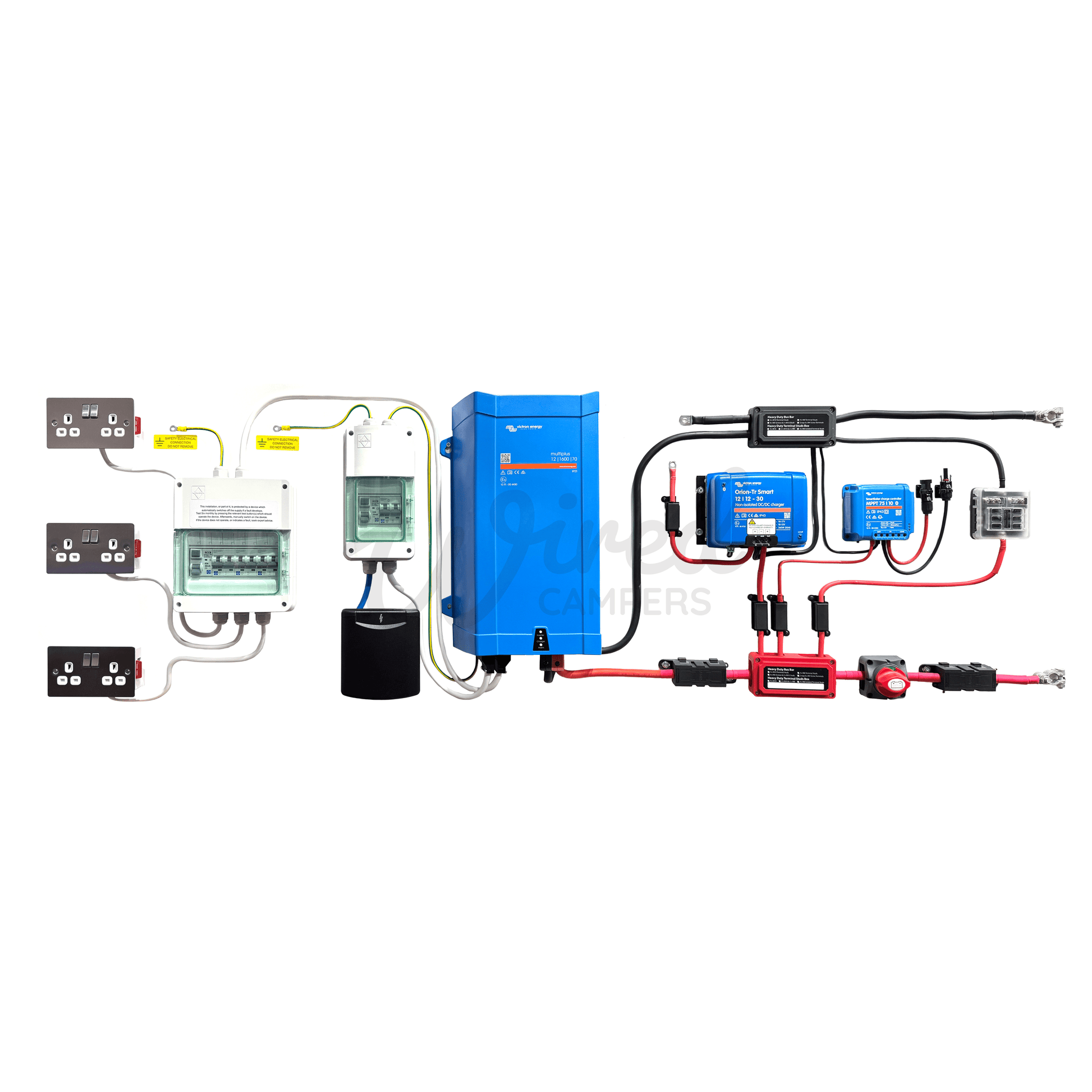

HIGH LEVEL KIT FEATURES

• 1600VA (1300W) Inverter Charger with power boost function on mains
• 10A MPPT Solar Controller (For connection to a solar panel)
• 30A DC-DC charger (For leisure battery charging from your vehicle)

• 300A High current DC distribution system

• 100A Low current DC distribution system
• Battery isolation
• Mains hook up

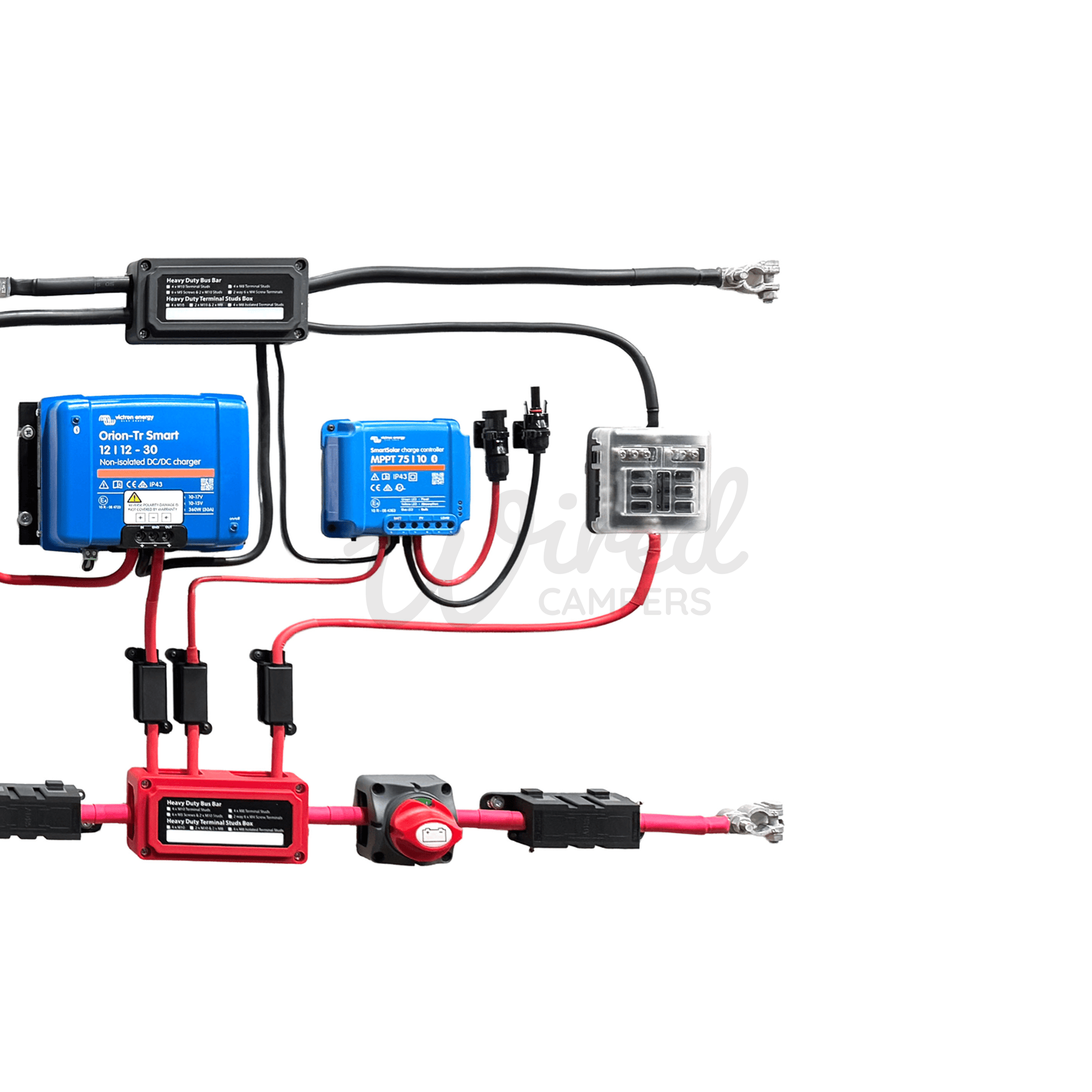

COMPONENTS

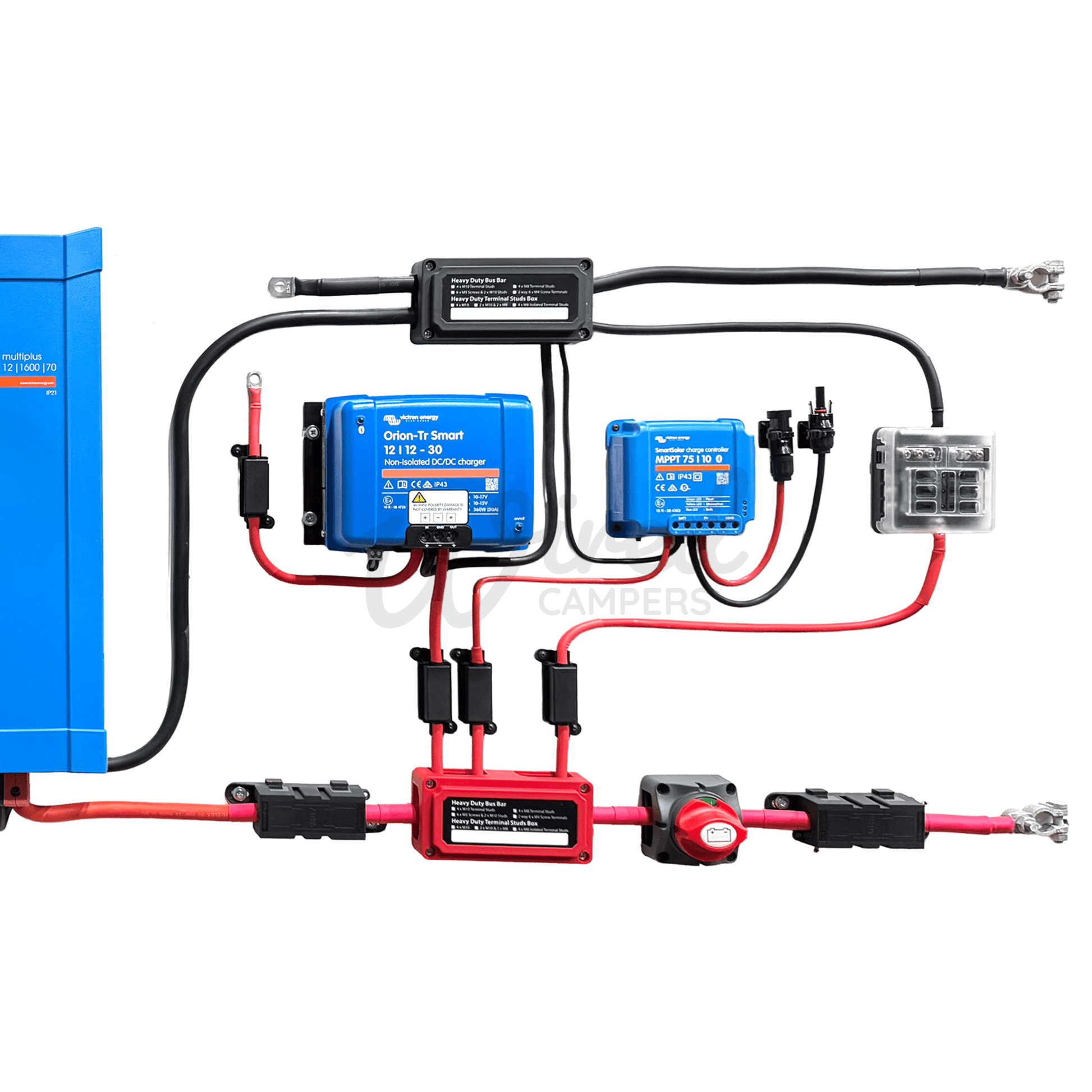

VICTRON ENERGY ORION 12/12 30A DC-DC NON ISOLATED CHARGER

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles where the alternator and the starter battery are used to charge the leisure battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

• Input voltage range - 10-17V
• Under voltage shut down - 7V
• Under voltage restart - 7.5V
• Nominal output voltage - 12.2V
• Output voltage adjust range - 10-15V
• Cont. output current at nominal output voltage and 40 °C - 30A
• Cont. output power at 25 °C - 430W
• Cont. output power at 40 °C - 360W
• Efficiency - 87%
• No load input current - < 80 mA
• Standby current - Less than 1mA
• DC connection - Screw terminals
• Maximum cable cross-section - 16 mm² AWG6
• Weight - 1.8 kg
• Dimensions - 130 x 186 x 80 mm

VICTRON ENERGY SMARTSOLAR 75/10 MPPT CHARGE CONTROLLER

This Victron SmartSolar 75/10 MPPT charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

• Battery voltage (Auto select) - 12-24V
• Rated charge current - 10A
• Nominal PV Power (12V) - 145W
• Max PV short circuit current - 13A
• Automatic load disconnect - Yes
• Max PV open circuit voltage - 75V
• Peak efficiency - 98%
• Power terminals - 6 mm²
• Weight - 0.5KG
• Dimensions (h x w x d) - 100 x 113 x 40MM

12V 300A AMP HEAVY DUTY DC POWER DISTRIBUTION POSITIVE & NEGATIVE BUS BARS

• 12V 300A Rating
• Module design for easy configuration and fitment
• Removable windows all round
• Blank space for easy identification
• Approx dimension 130mm X 69mm X 45mm

MEDIUM DUTY 12V 275A BATTERY POWER ISOLATOR KILL SWITCH

• 275A Continuous current
• 1000A Peak current (5 seconds)
• 10mm Terminals
• Four removable side panels for easy cable entry
• Mounting bolts and locking nuts
• Removable key for additional safety

6 WAY CAMPER VAN BLADE FUSE BOX BLOCK HOLDER WITH LED INDICATOR

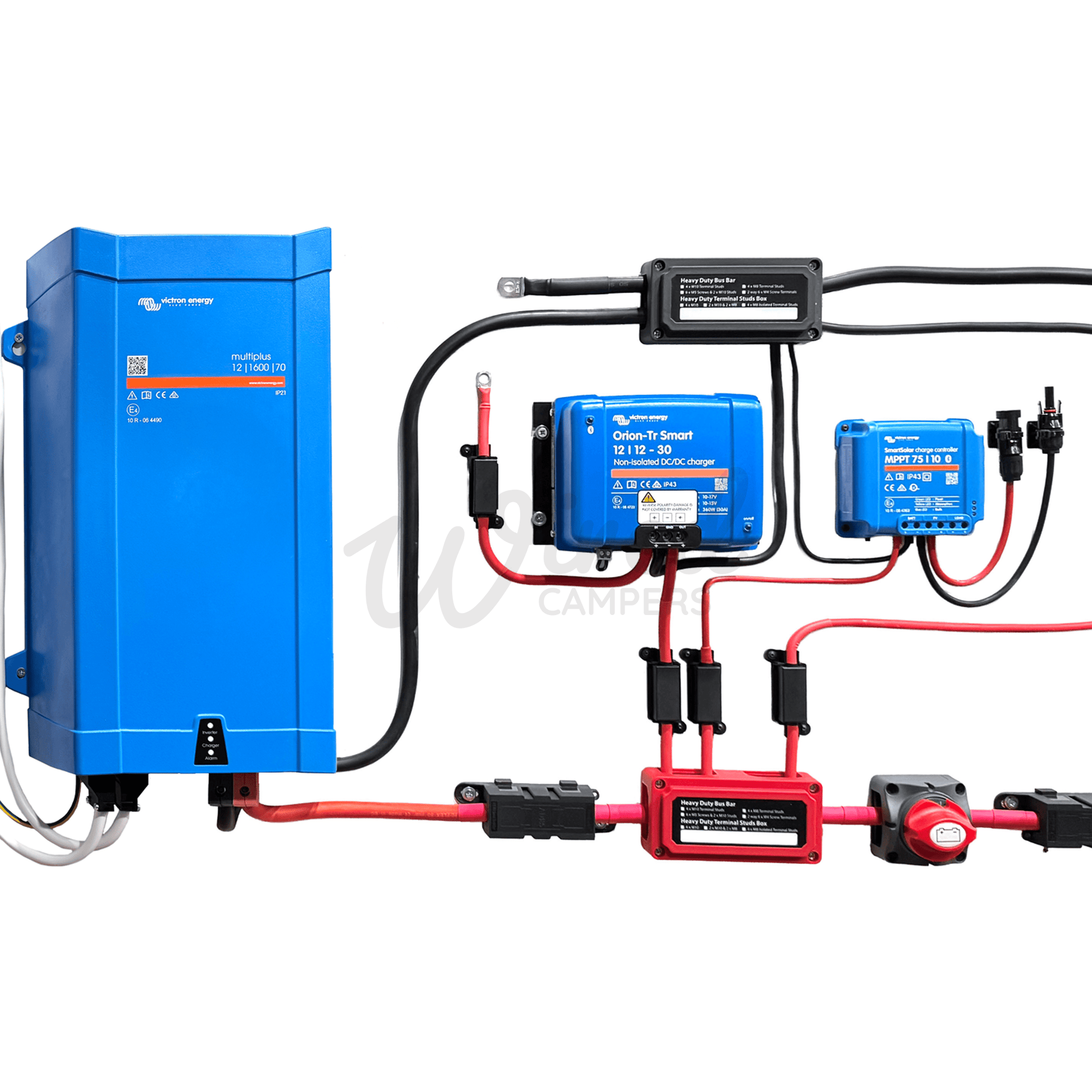

VICTRON ENERGY MULTIPLUS 12/1600/70 INVERTER CHARGER

This new style Victron MultiPlus 1600VA is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a highspeed AC transfer switch in a single compact enclosure.

• Input voltage range - 9.5 – 17V
• Output Output voltage - 230VAC ± 2% Frequency: 50Hz ± 0,1% (1)
• Cont. output power at 25°C(3) - 1600VA
• Cont. output power at 25°C - 1300W
• Cont. output power at 40°C - 1100W
• Cont. output power at 65°C - 800W
• Peak power - 2800W
• Maximum efficiency - 93%
• Zero-load power - 10W
• Zero-load power in search mode - 3W
• AC Input - Input voltage range: 187-265VAC / Input frequency: 45 – 65Hz
• Charge voltage 'absorption' - 14.4V
• Charge voltage 'float' - 13.8V
• Storage mode - 13.2V
• Leisure battery charge current - 70A
• Starter battery charge current - 1A
• Battery temperature sensor - Yes
• Weight - 10.2KG
• Dimensions (hxwxd) - 470 x 265 x 120 mm

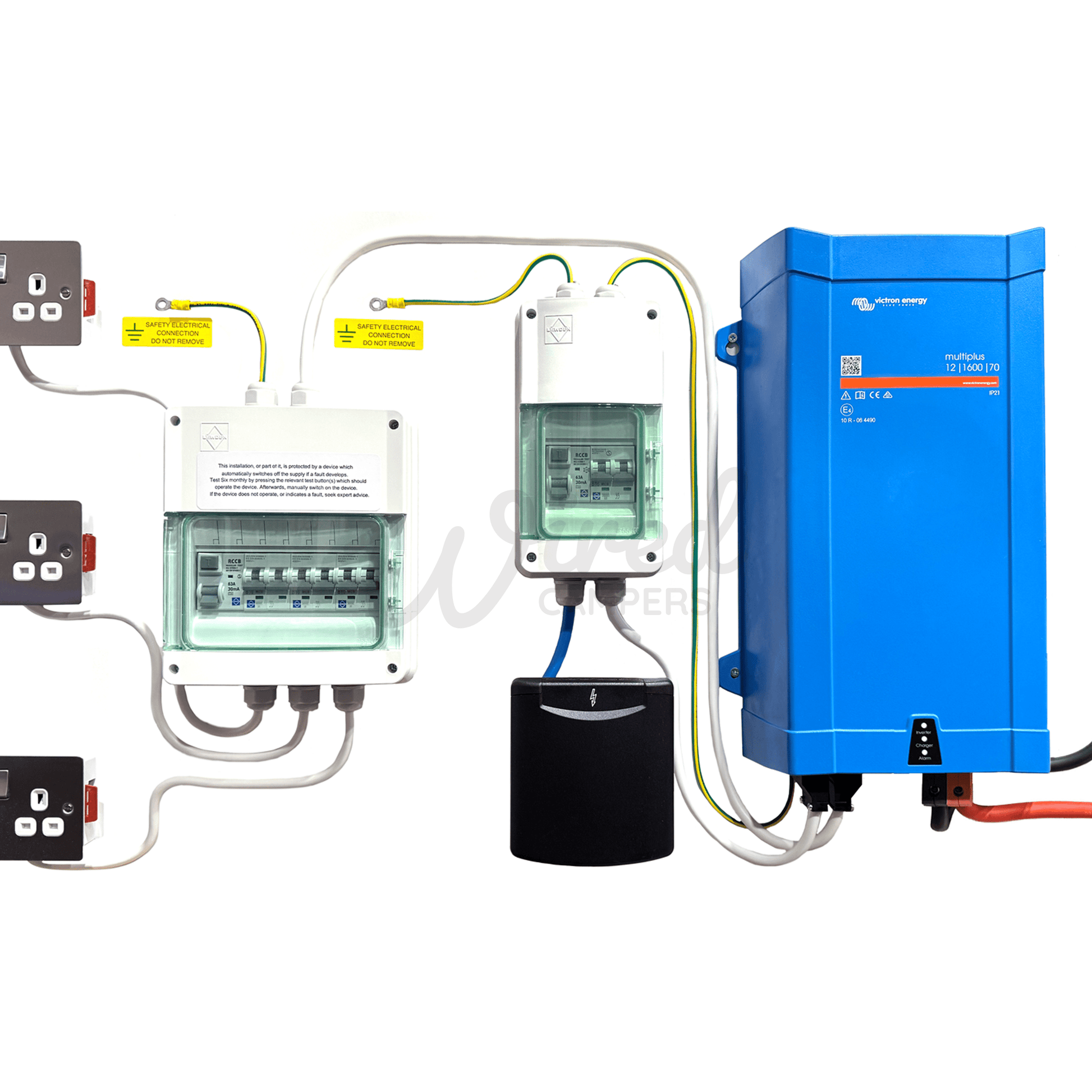

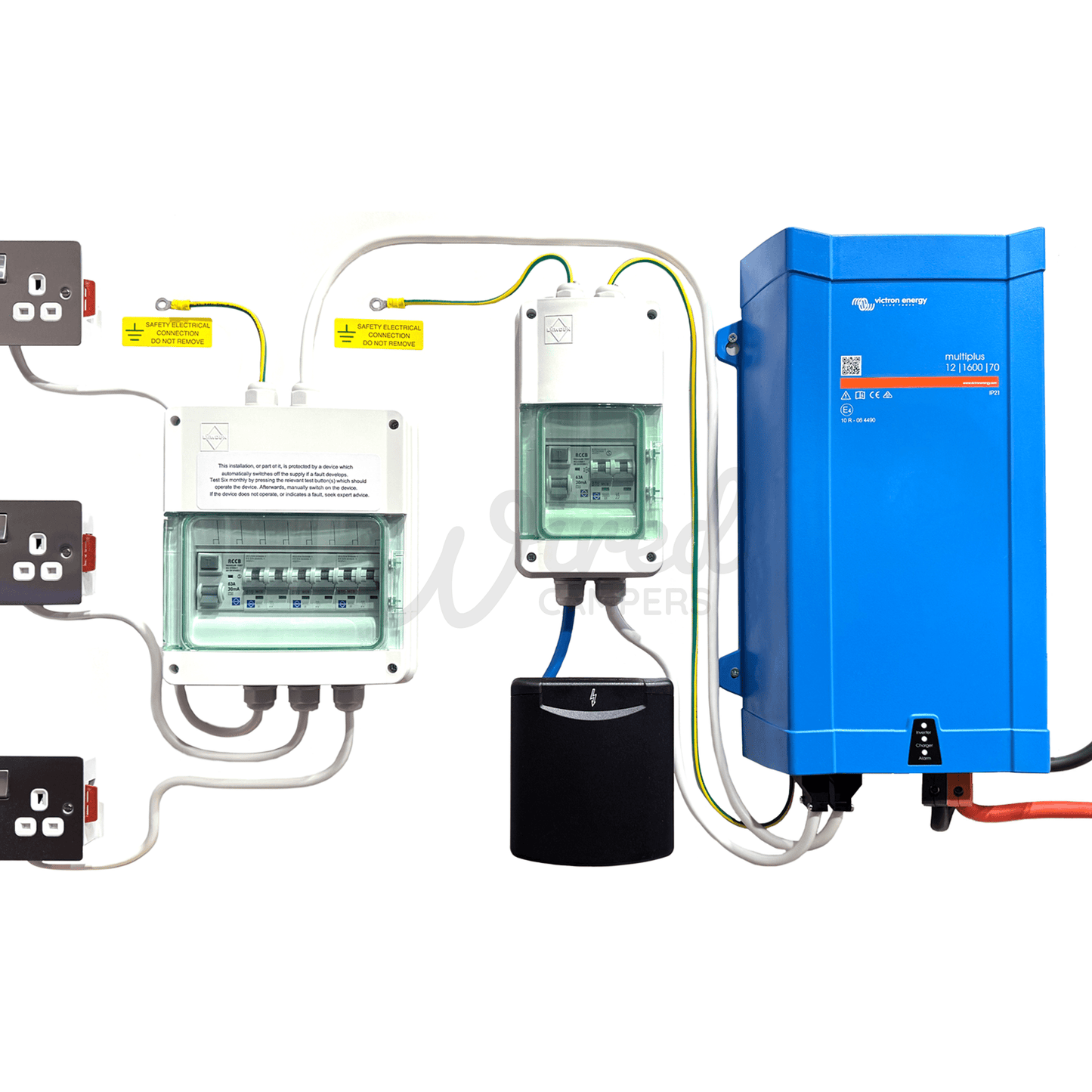

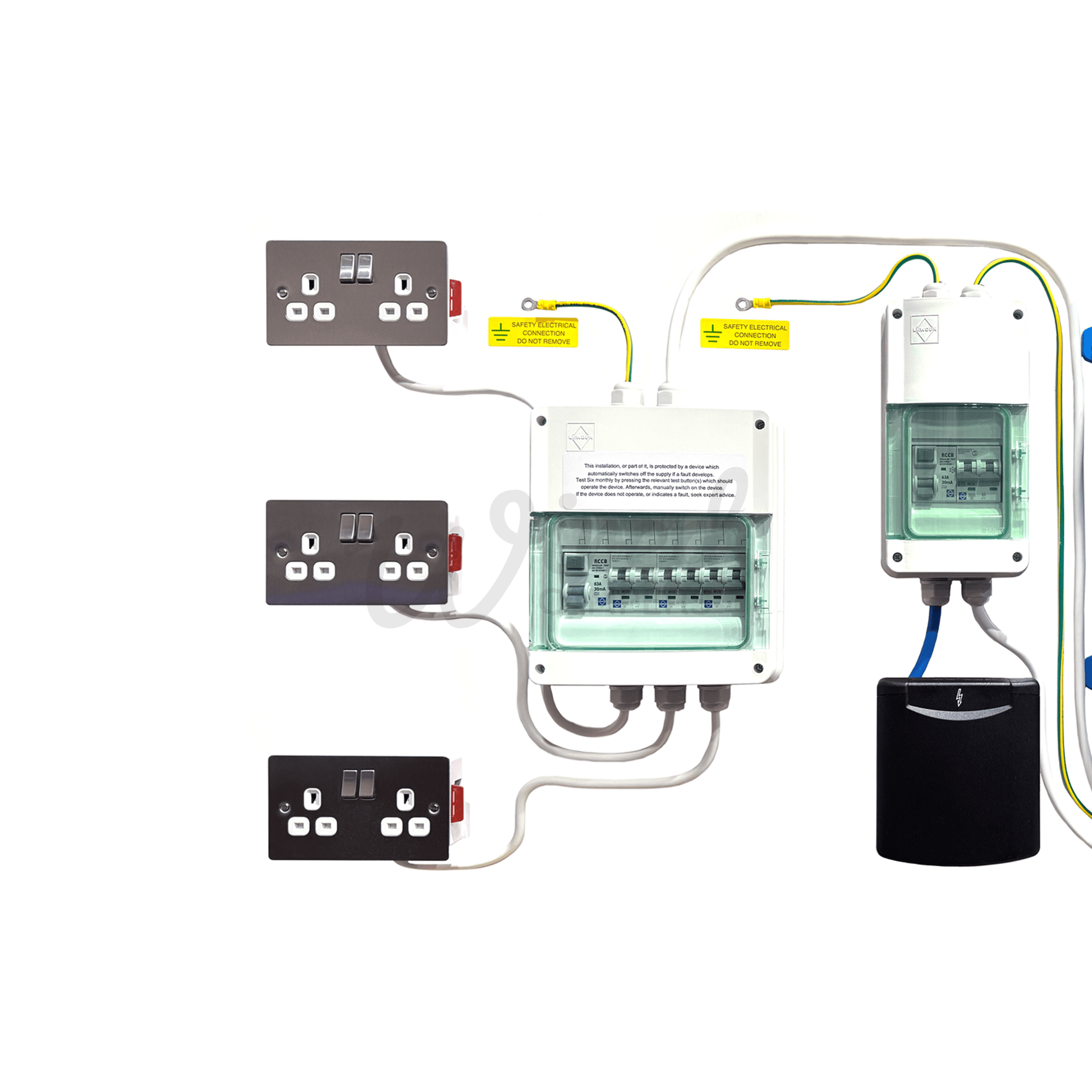

INCOMING MAINS CONSUMER UNIT

This part of the kit is available in two forms; we can either provide you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please just select your preference from the "240V Mains Consumer Unit" option above. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

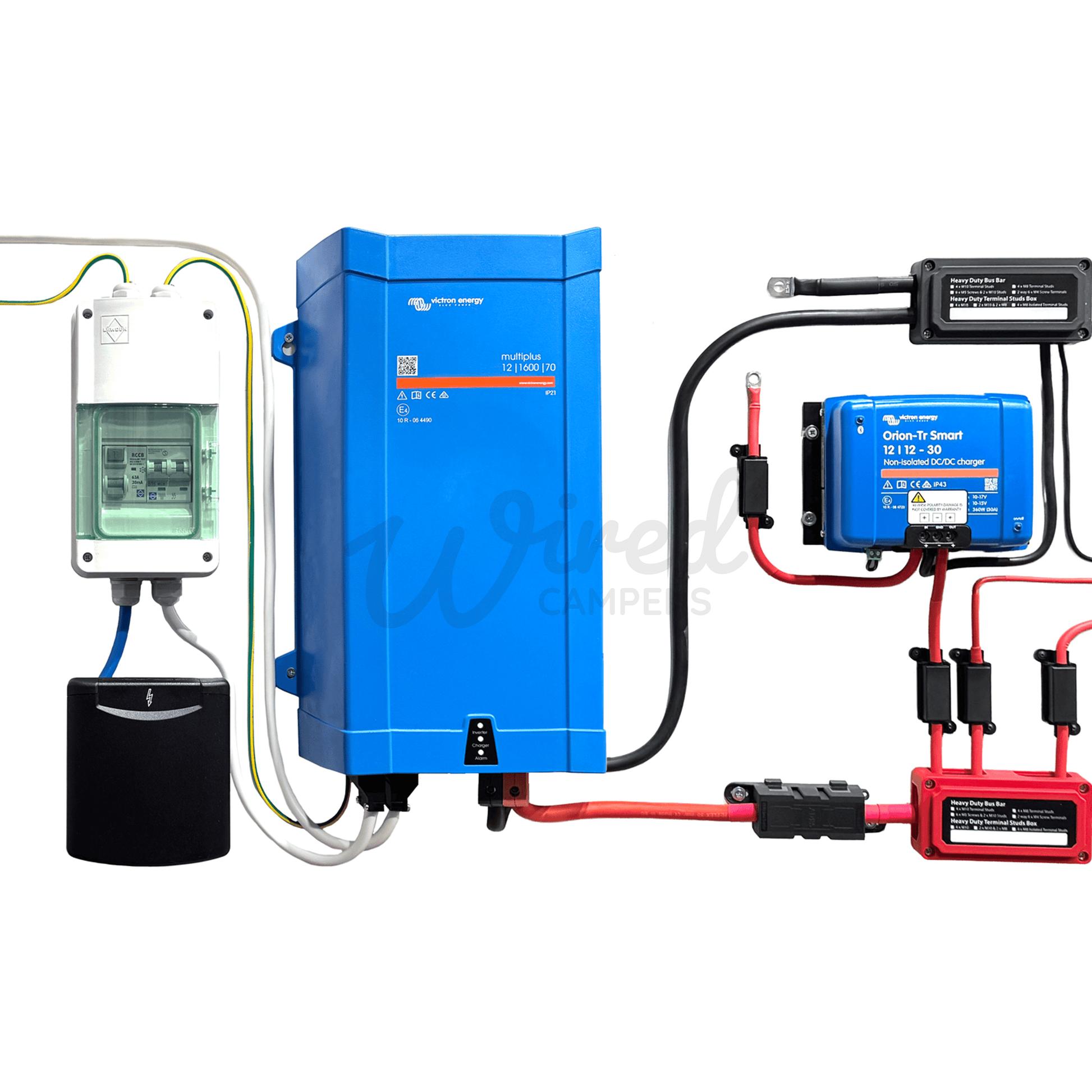

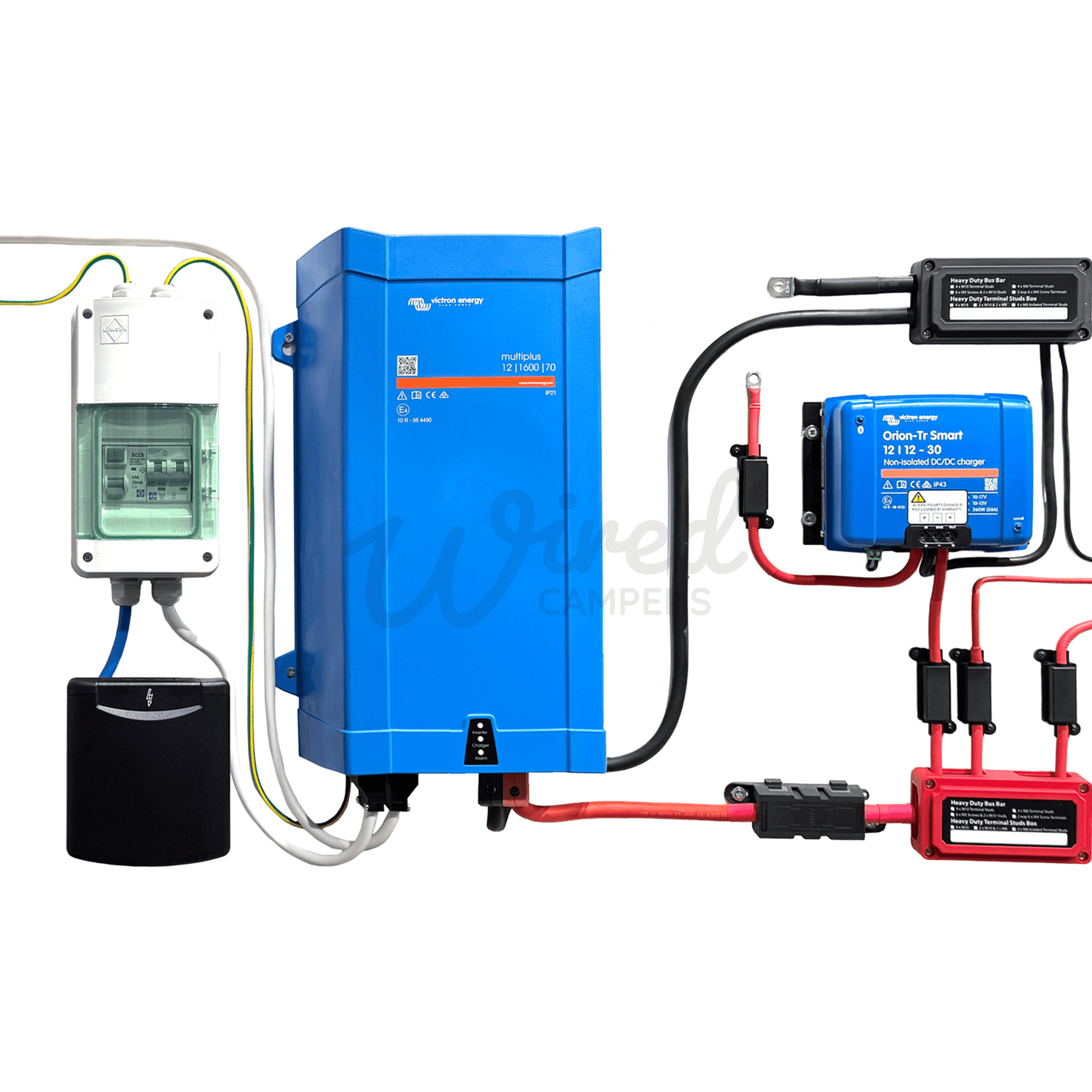

This is a small mains consumer unit that runs from the surface mount 16A hook up point on the outside of your van and feeds the input of the inverter. This protects the inverter from any power surges and overloads and is the first point of safety, providing an earth to both the inverter body and the chassis of your camper van.

• 4 Way plastic consumer unit
• 30mA 63A Double pole Type A RCD
• 16A Double pole MCB
• 100A DP Bus bar
• Surface mounted 16A magnetic hook up point (Available in black or white)
• Relevant electrical safety stickers
• Hook up input - 4.0mm² three core arctic flex - 5M
• Inverter input - 2.5mm² three core flex - 2M
• Inverter earth (Terminated with ring terminal) - 6mm² tri rated flex - 2M
• Vehicle earth (Terminated with ring terminal) 6mm² tri rated flex - 2M

OUTGOING MAINS CONSUMER UNIT

This part of the kit is available in two forms; we can either provide you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please just select your preference from the "240V Mains Consumer Unit" option above. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

This is the central mains consumer unit for the camper van. This takes the output from the inverter/hook up and feeds the power via double pole RCD's and MCB's to the mains sockets and switches.

• 8 Way plastic consumer unit
• 30mA 63A Double pole Type A RCD
• 3 X 10A Double pole MCB's
• 100A DP Bus bar
• 3 X 13A UK double sockets  or C-Line alternative
• 3 X double surface mount back boxes or C-Line alternative
• Single surface mount back box
• Inverter output - 2.5mm² three core flex - 2M
• Sockets & Switches - 1.5mm² three core flex - 3M each
• Vehicle earth (Terminated with ring terminal) 6mm² tri rated flex - 2M

CABLING

We will provide adequate lengths of cable to complete the installation as seen on the screen, the lengths provided are suitable for most camper installations, but if you need anymore, this is all available to buy on our website.

For use to wire both the input and output of the Orion DC-DC charger and the cabling to the 12V fuse box -

• 16mm² Red Positive Hi Flex - 10M
• 16mm² Black Negative Hi Flex - 10M

For use to wire the Multiplus-II Inverter Charger -

• 50mm² Red Positive Hi Flex - 3M
• 50mm² Black Negative Hi Flex - 3M

For use to wire the input of the SmartSolar MPPT controller -

• 6mm² Red Positive Double Insulated PV Cable -  3M
• 6mm² Black Positive Double Insulated PV Cable -  3M

For use to wire the output of the SmartSolar MPPT controller -

• 6mm² Red Positive Tri-Rated Cable -  3M
• 6mm² Black Positive Tri-Rated Cable -  3M

For use to wire from the low current 6 way fuse box to your 12V accessories -

• 2.0mm² Twin core automotive thin wall cable - 1 X 30M

All crimps, terminals, and heat shrink will be provided in the kit to make the necessary connections.

ADDITIONAL ITEMS

• Relevant fuses and fuse holders
• Battery terminals with PVC covers
• Assorted ring terminals and connections to complete the installation.
• 100 X Cable ties and bases

ADDITIONAL IMPORTANT INFORMATION

As with all the kits and layouts provided on our site, they serve as a guide only. All wiring and installation must be carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.

ELECTRICAL INSTALLATONS MUST BE COMPLETED BY A QUALIFIED PROFESSIONAL. WIRING SHOULD BE IN ACCORDANCE WITH THE LATEST EDITION OF THE IET REGULATONS (BS 7671).
