AVAILABLE OPTIONS WITH THIS KIT

Socket Finish – This refers to the 13A sockets and switches that you will see once fitted into your furniture. These are available in Flat Black Nickel, Flat Brushed Steel, or a Raised Matt Black finish in a standard UK 2 gang fitting, or they can be upgraded to three sets of grey C-Line 13A sockets in a gunmetal grey 2 module frame (6 individual outlets in total). Please see the image of the sockets for colour/style reference.

240V Mains Consumer Unit – This is the mains consumer unit which distributes power from the site supply to the outlets. This can either be provided to you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

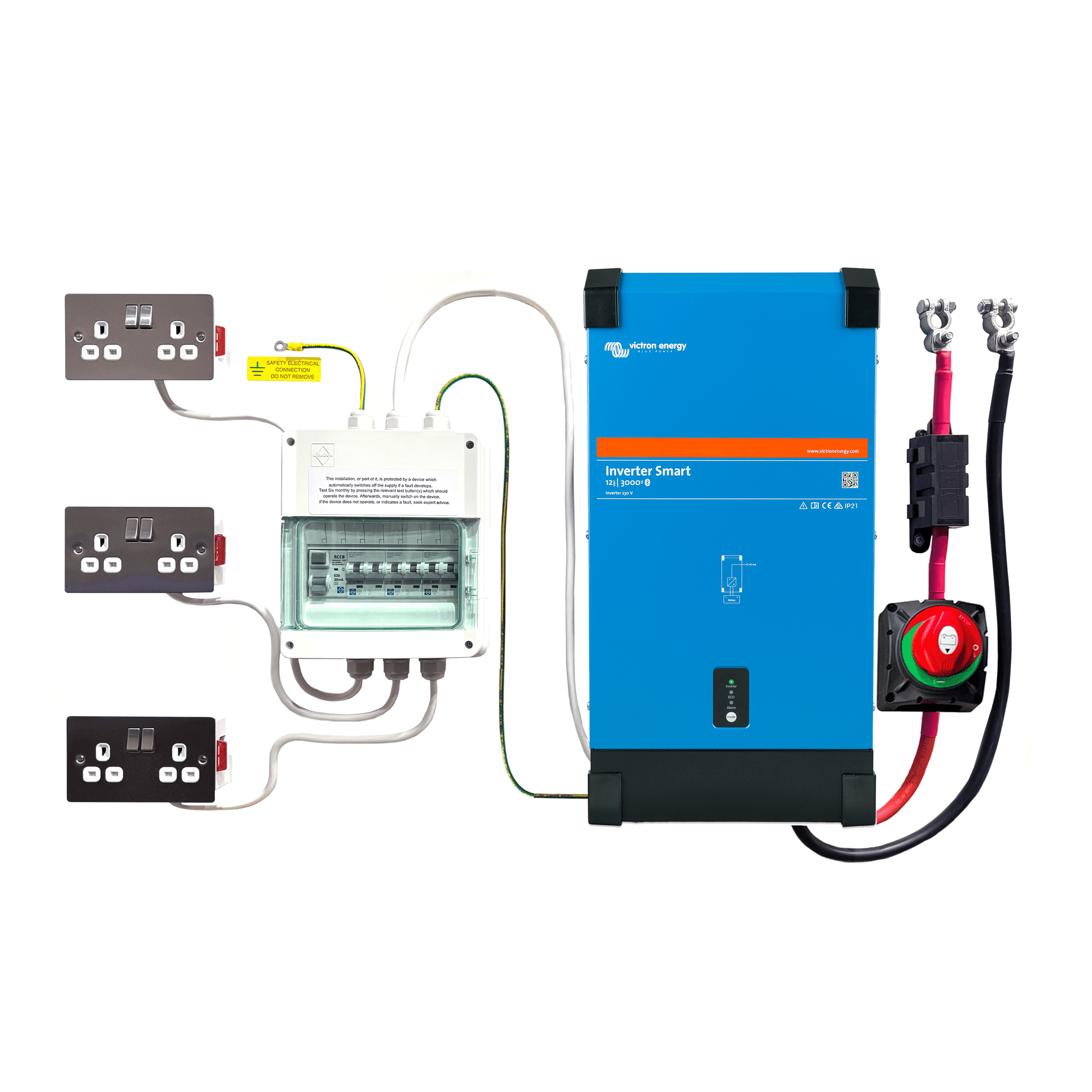

COMPONENTS

VICTRON ENERGY INVERTER SMART 12/3000 3000VA 230V INVERTER

The Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested inverter platform, it now comes with a new slimmer design and full metal casing.

It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

Bluetooth is built-in, and makes setting up your high power inverter easier than ever before. Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.

TECHNICAL SPECIFICATION

• Input voltage range - 9.3 – 17V

• Output Output voltage - 230VAC ± 2% Frequency: 50Hz ± 0,1% (1)

• Cont. output power at 25°C(1) - 3000VA

• Cont. output power at 25°C - 2400W

• Cont. output power at 40°C - 2200W

• Cont. output power at 65°C - 1700W

• Peak power - 6000W

• Maximum efficiency - 93%

• Zero-load power - 12W

• Zero-load power in ECO mode - 1.5W

• Weight - 19KG

• Dimensions (hxwxd) - 533 x 285 x 150 mm

• Part number - PIN122300000

• GTIN - 8719076047360

OUTGOING MAINS CONSUMER UNIT

This part of the kit is available in two forms; we can either provide you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please just select your preference from the "240V Mains Consumer Unit" option above. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

This is the central mains consumer unit for the camper van. This takes the output from the inverter/hook up and feeds the power via double pole RCD's and MCB's to the mains sockets and switches.

• 8 Way plastic consumer unit
• 30mA 63A Double pole Type A RCD
• 3 X 10A Double pole MCB's
• 100A DP Bus bar
• 3 X 13A UK double sockets  or C-Line alternative
• 3 X double surface mount back boxes or C-Line alternative

• Inverter output - 6.0mm² three core flex - 2M
• Sockets & Switches - 1.5mm² three core flex - 3M each
• Vehicle earth (Terminated with ring terminal) 6mm² tri rated flex - 2M
• Inverter earth (Terminated with ring terminal) 6mm² tri rated flex - 2M

ADDITIONAL ITEMS

• 600A Battery Isolator
• MEGA Fuse holder and fuse
• Battery terminals with PVC covers
• 95mm² Red Positive Hi Flex - 3M
• 95mm² Black Negative Hi Flex - 3M
• Assorted ring terminals and connections to complete the installation.
• 100 X Cable ties and bases

ADDITIONAL IMPORTANT INFORMATION

As with all the kits and layouts provided on our site, they serve as a guide only. All wiring and installation must be carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.

ELECTRICAL INSTALLATONS MUST BE COMPLETED BY A QUALIFIED PROFESSIONAL. WIRING SHOULD BE IN ACCORDANCE WITH THE LATEST EDITION OF THE IET REGULATONS (BS 7671).
