Victron Energy 30A DC/DC High Current 12V Off Grid Camper Van Kit

Regular price £569.99
Unit price  per
Tax included.

We have put this one together to provide high output 12V supplies for people that don't necessarily want to fit 240V mains in their van.

This kit will provide charging from the vehicle via the 30A Orion and Voltage/Capacity/Current monitoring of your battery via the BMV.

On the output side we provide you with a number of fused outlets and ports to meet most needs.

WHAT MAKES UP THIS KIT?

Victron Energy Orion-Tr Smart DC-DC 12/12-30A DC-DC Non-Isolated Charger (360W)

For use in dual battery systems in vehicles where the alternator and the starter battery are used to charge the leisure battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion-Tr Smart charger is suitable for both lead acid and lithium batteries.

Victron Energy BMV-712 Smart Bluetooth Battery Monitor With 500A Shunt

This Victron BMV-712 is a great and easy way to get real-time information from your leisure battery.

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

Also included are a separate front bezel for a square or round display appearance, a securing ring for rear mounting and screws for front mounting.

12V 300A AMP Heavy Duty Power Distribution Negative Bus Bar - 4 X M8 Terminals

Heavy duty negative bus bar suitable for high current applications such as inverters and main 12V power distribution in your camper van.

  • 12V 300A Rating
  • Module design for easy configuration and fitment
  • Removable windows all round
  • Blank space for easy identification
  • Approx dimension 130mm X 69mm X 45mm

12V 12 Way Blade Fuse Box Block Holder With LED Indicator & Fuses

  • Built in negative bus bar, saving the time and extra money having to install a separate one.
  • LED function on each output that will illuminate to show any blown fuses.
  • Numerous labels for easy identification of outputs.
  • Complete with 12 fuses (3 X 5A, 3 X 10A, 3 X 15A, 3 X 20A).
  • Mounting screws.

12V Camper/Caravan 5 Gang Switched USB Main Control Panel

The key control panel in your camper. You won't find many without one. This panel shows the voltage of your leisure battery and provides power via two 2.1A USB ports and 12V socket. It also allows you to independently control up to five 12V accessories in your van.

  • Pre-wired for quick fitting
  • 5 gang independent switches complete with in-line fuse holders with fuses
  • Dual 2.1A USB Charger
  • Voltmeter
  • 12V Cigarette Socket
  • Blue LEDs

12V Camper/Caravan Mini Panel - Dual Quick Charge 2.4A USB & 12V Socket

Perfect addition to any camper when you're looking for some more power points. These items can either be mounted in the supplied black surround or removed and fitted independently.

  • Quick Charge Dual 2.4A USB Chargers
  • 12V Cigarette Socket
  • Blue LED
  • Fitting Screws
  • Terminated cables with an in-line fuse

12V Battery Voltmeter & Quick Charge 3.0 18W USB C PD Port & USB A Port 18W

Monitor your leisure battery voltage and charge up your high powered equipment with this dual USB C PD Port and USB A Quick Charge 3.0 Port.

This is the same dimension as a normal 12V accessory port, so you easily replace an existing unit or it can be installed as a new standalone item with the supplied one gang plastic mounting plate.

  • Built in ON/OFF switch to conserve power
  • Mini fused power cable
  • One gang mounting plate
  • Multi-coloured LED battery voltmeter
  • Dust Cover
  • USB Type A Quick Charge 3.0 Port
  • USB Type C PD Port
  • 3.6V-6.5V - 3A / 6.6V-9V - 2A / 9.1V-12V - 1.5A

12V 200A AMP Heavy Duty Power Distribution DC 7 Way Fuse Box

Heavy duty 7 way fuse box for high current applications as a main 12V power distribution in your camper van.

  • 12V 200A Rating
  • Main feed with 7 inputs/outputs

Removable Key Medium Duty 12V 200A Battery Power Isolator Kill Switch

Medium duty isolation switch, perfect for battery banks or small inverters.

  • 200A Continuous current
  • 1000A Peak current (5 seconds)
  • 10mm Terminals
  • Four removable side panels for easy cable entry
  • Mounting bolts and locking nuts
  • Removable key for additional safety

12 Way Terminal DC Negative Common Bus Bar - 150A 48V Max

Common negative bus bar, ideal for use in camper vans or boats to bring all your negatives back to one location.

  • Max - 150A 48V
  • Number of screw terminals - 12
  • Number of studs - 2

Additional Items

  • Set of high quality battery terminals with PVC covers.
  • All fuses, crimps and heatshrink needed to complete the installation
  • 100 cable tie bases
  • 100 cable ties

CABLING

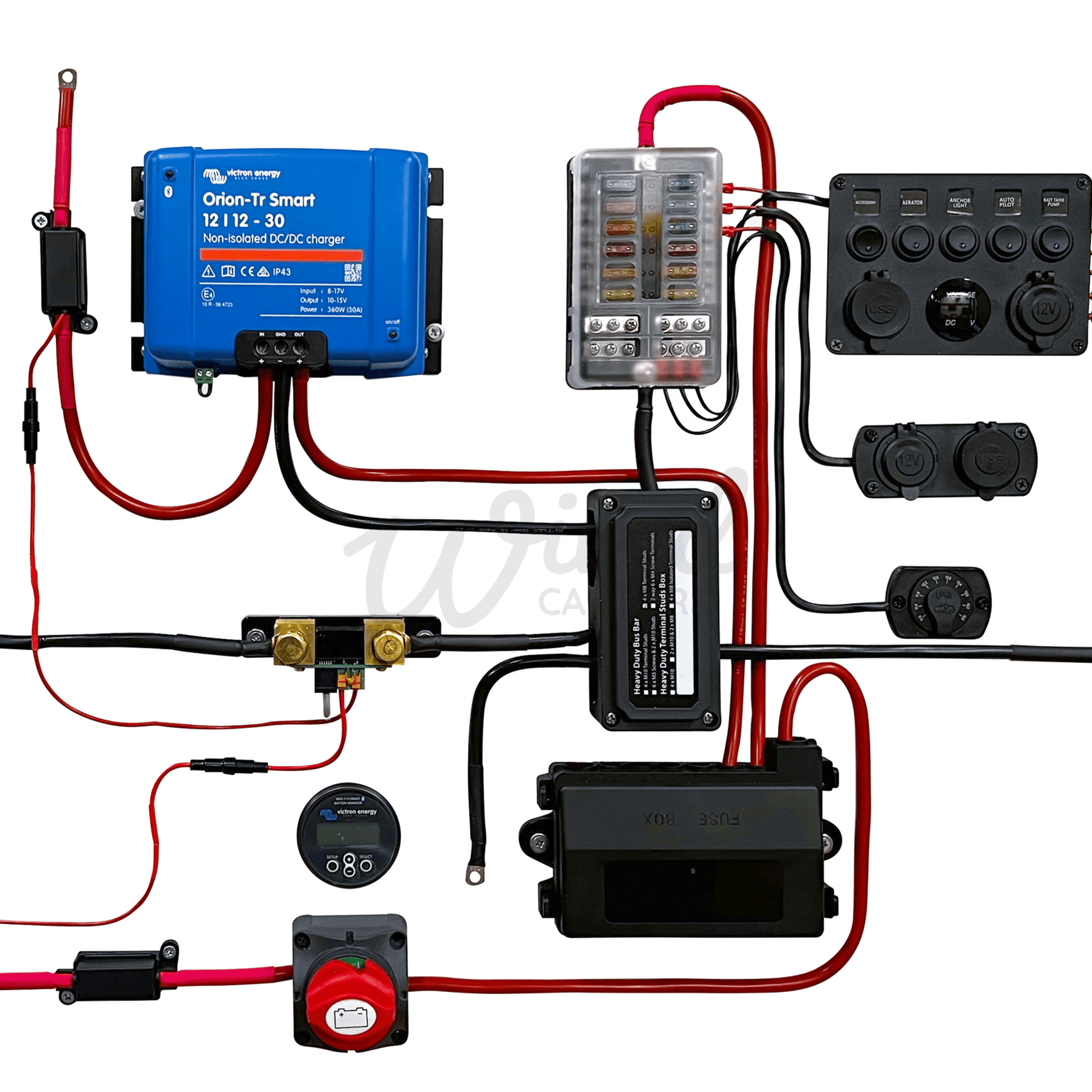

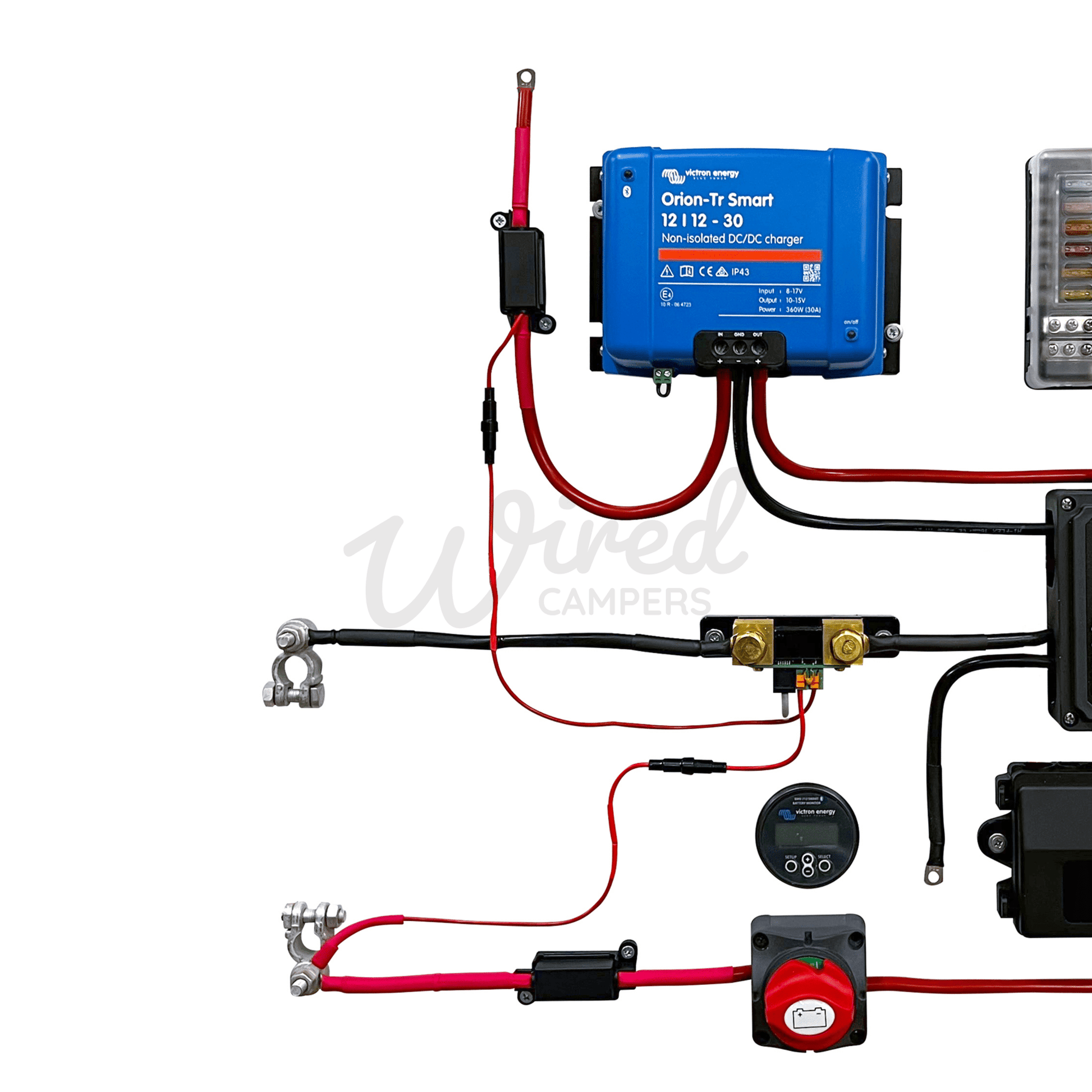

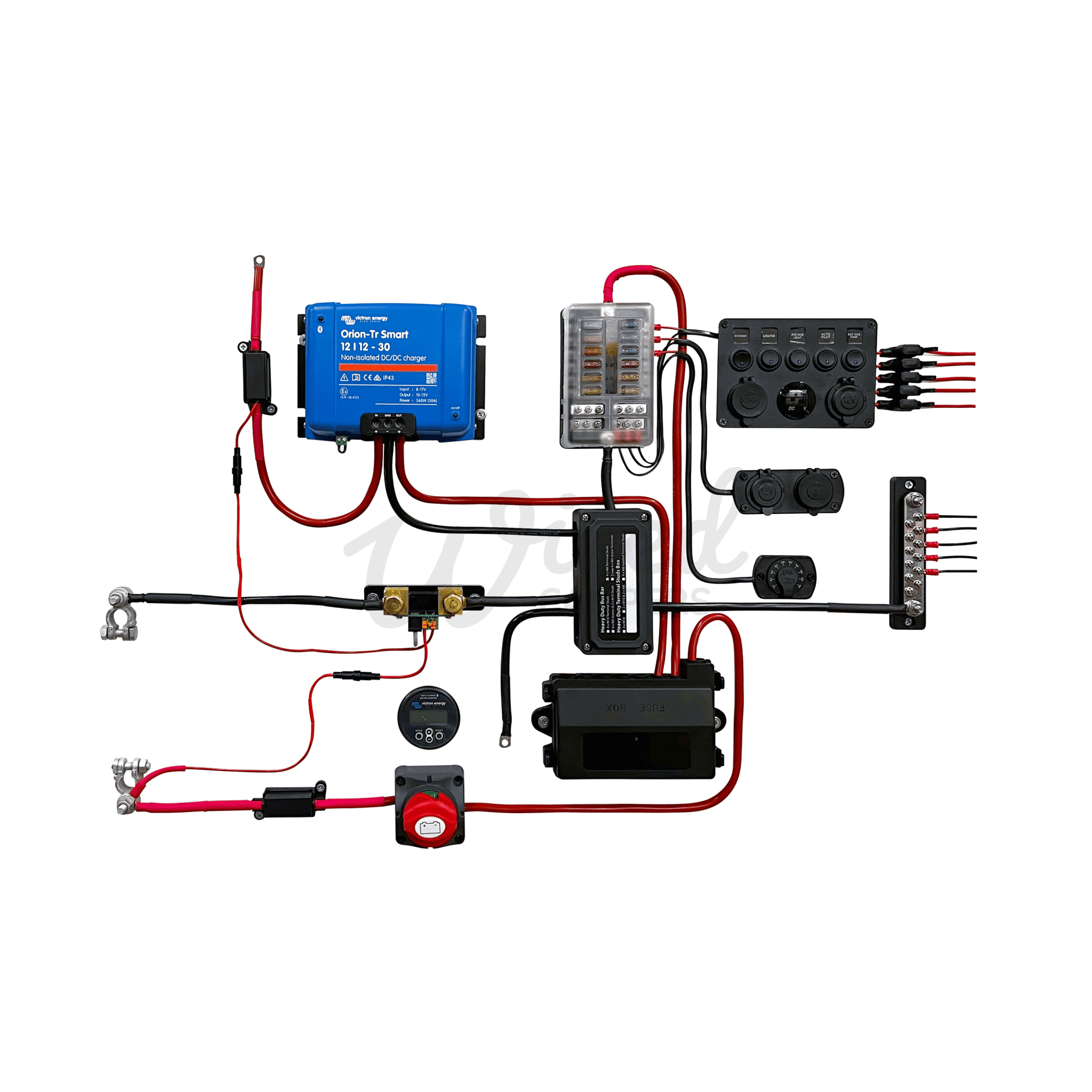

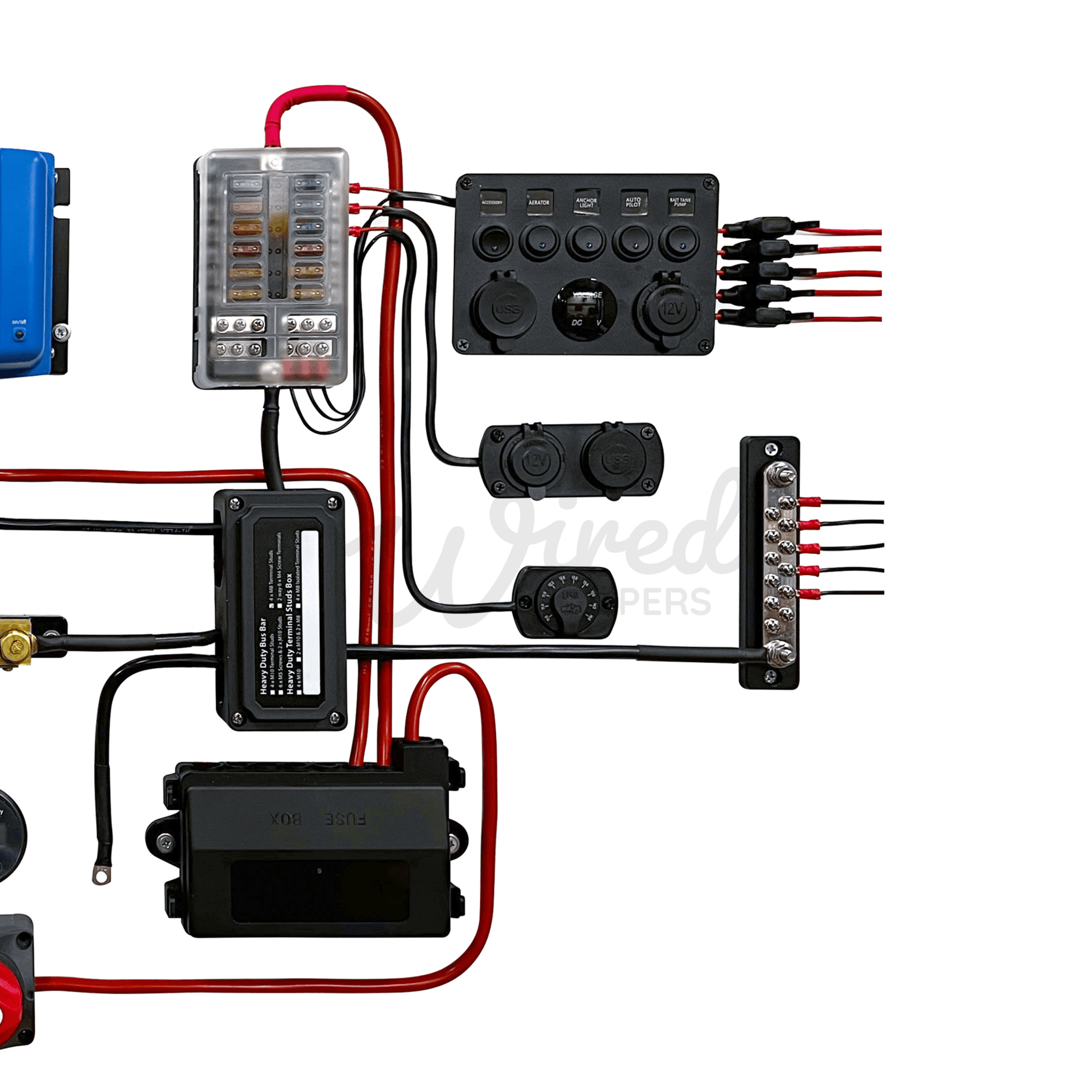

We will provide adequate lengths of cable to complete the installation as seen on the screen, the lengths provided are suitable for most camper installations, but if you need anymore, this is all available to buy on our website.

For use to wire both the input and output of the Orion DC-DC charger and the cabling to the 12V fuse boxes and bus bars -

  • 16mm² Red Positive Hi Flex - 10M
  • 16mm² Black Negative Hi Flex - 10M

For use to wire from the low current 12 way fuse box to your 12V accessories -

  • 1.5mm² Twin core automotive thin wall cable - 30M
  • 2.0mm² Twin core automotive thin wall cable - 10M

ADDITIONAL IMPORTANT INFORMATION

As with all the kits and layouts provided on our site, they serve as a guide only and we recommend all wiring and installation is carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.
