AVAILABLE OPTIONS WITH THIS KIT

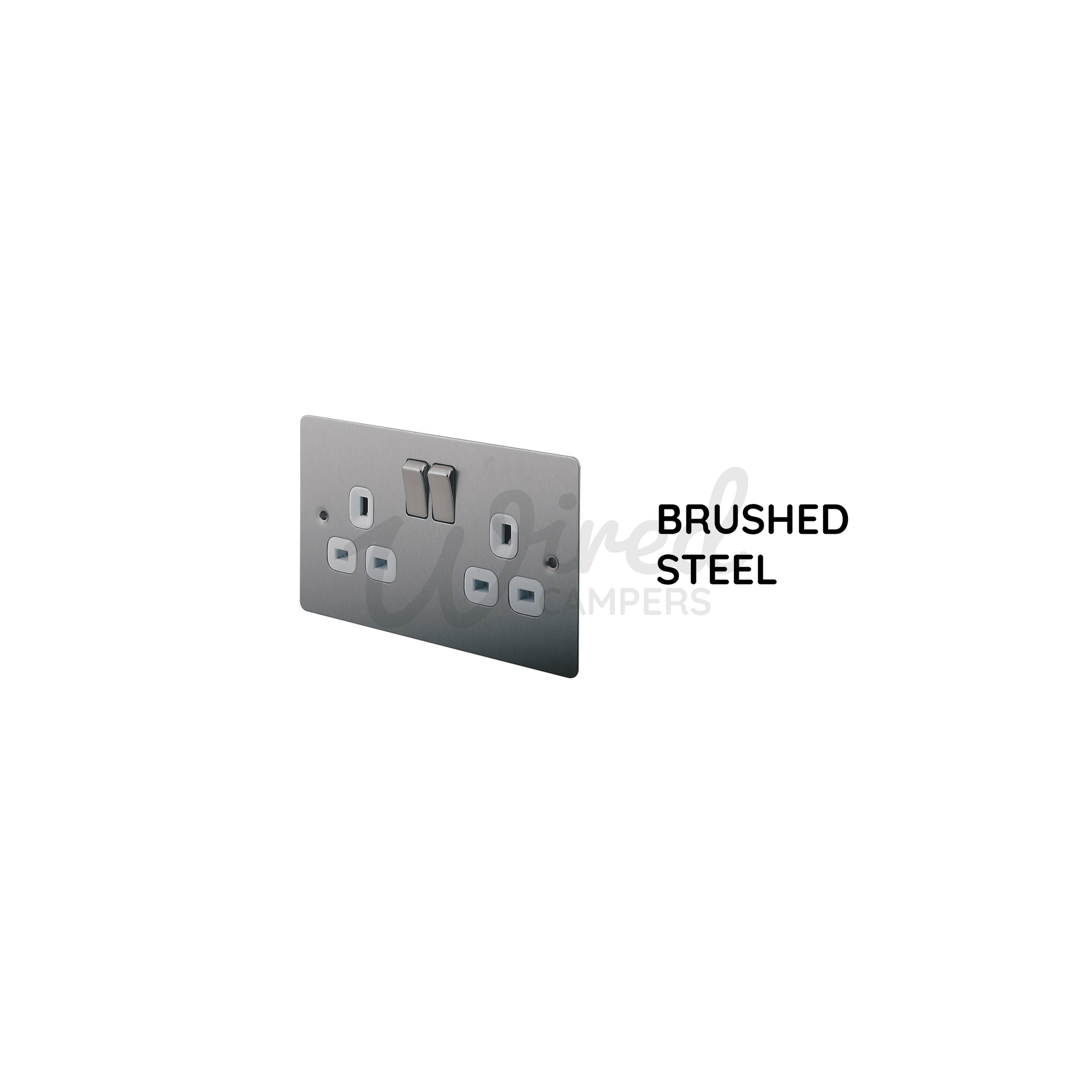

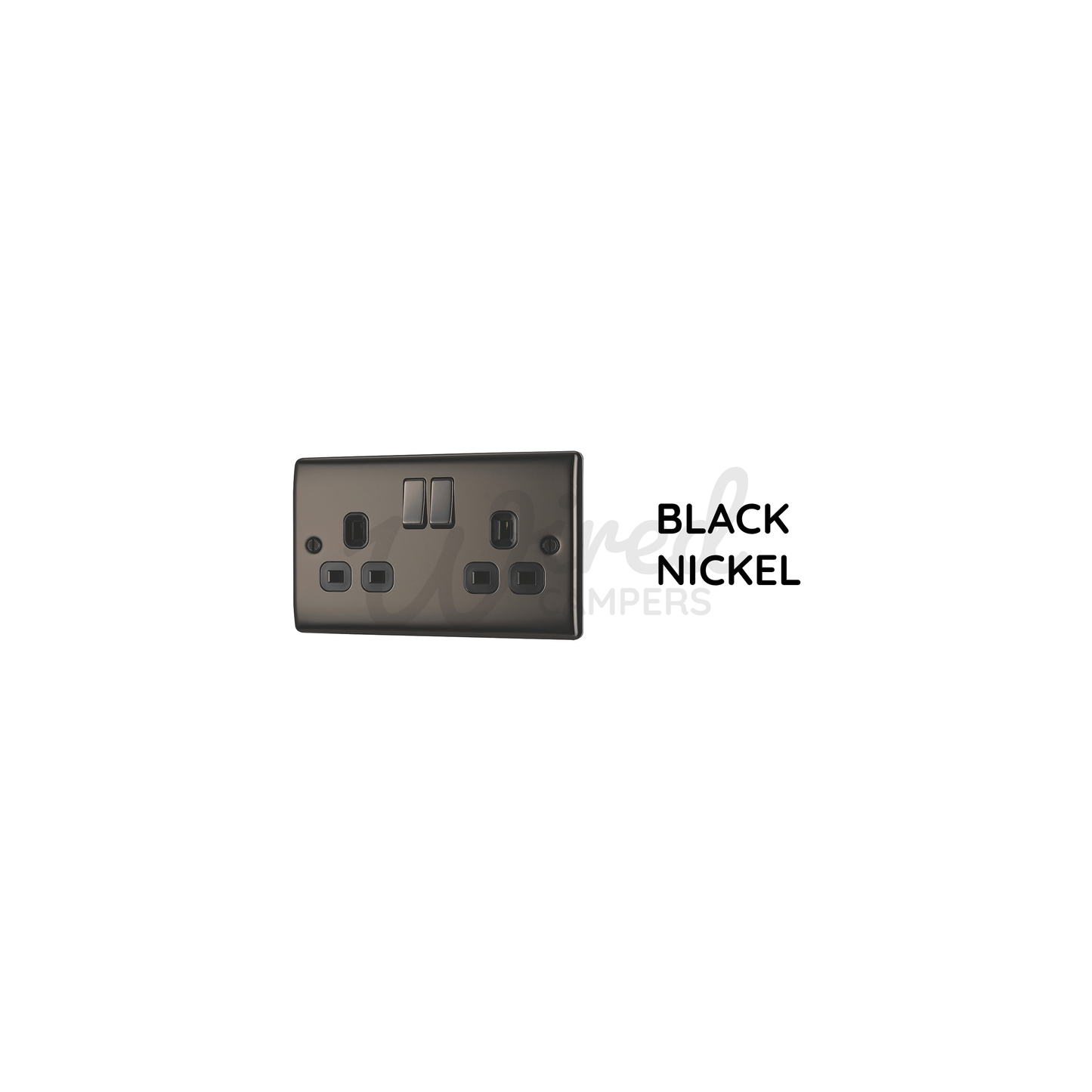

Socket Finish – This refers to the 13A sockets and switches that you will see once fitted into your furniture. These are available in Flat Brushed Steel, Raised Black Nickel or a Raised Matt Black finish in a standard UK 2 gang fitting, or they can be upgraded to two sets of grey C-Line 13A sockets in a gunmetal grey 2 module frame (4 individual outlets in total). Please see the image of the sockets for colour/style reference.

Hook Up Flap Colour – This is the hook up you will install that will accept your 16A camp site hook up lead. We offer a flush type similar to what you would find on a caravan setup. The flush option is available in either black or white to compliment your van.

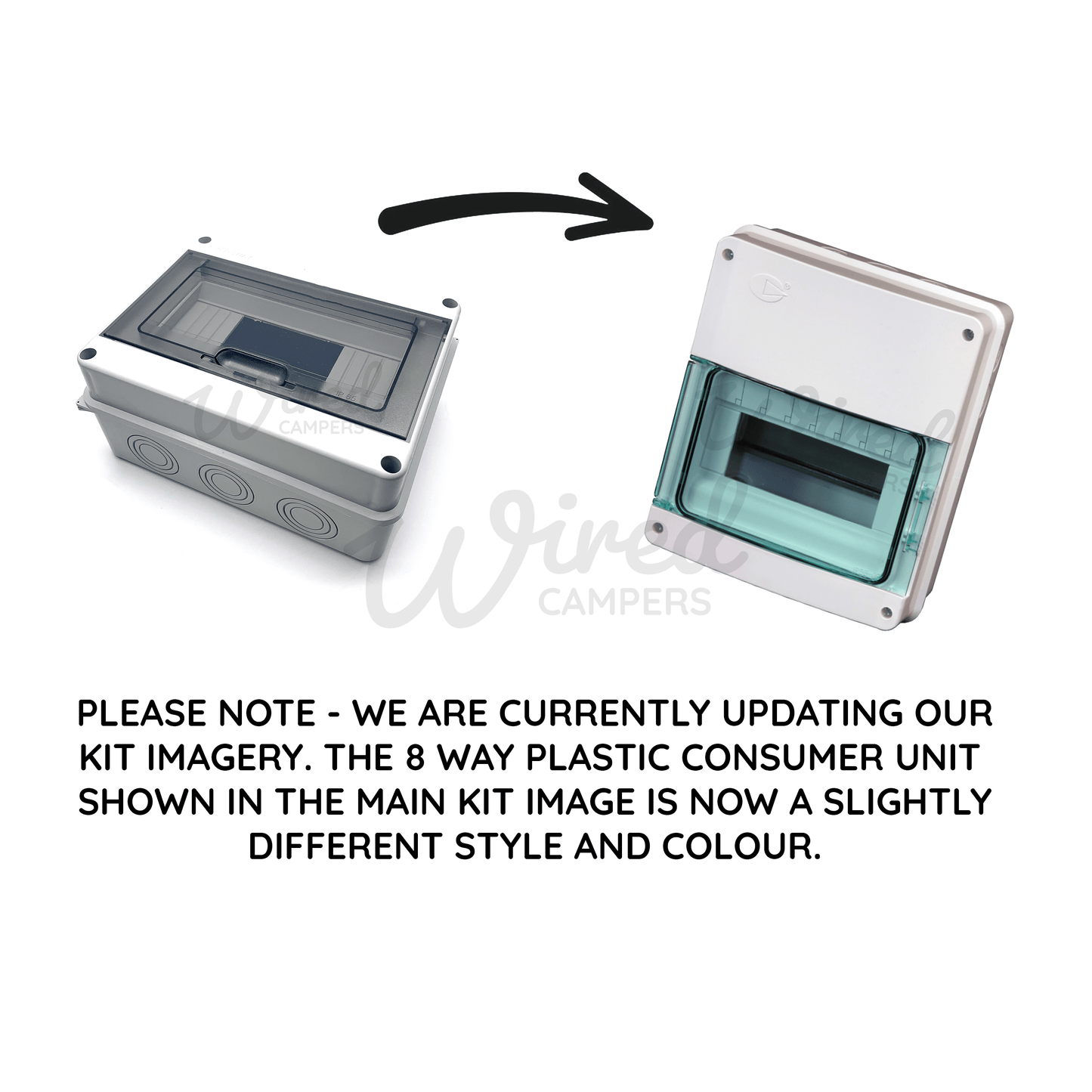

240V Mains Consumer Unit – This is the mains consumer unit which distributes power from the site supply to the outlets. This can either be provided to you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

12V LEISURE BATTERY CHARGING

Victron Energy Orion-Tr Smart DC-DC 12/12-30A DC-DC Non-Isolated Charger (360W)

For use in dual battery systems in vehicles where the alternator and the starter battery are used to charge the leisure battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion-Tr Smart charger is suitable for both lead acid and lithium batteries.

Technical Details

• Transformation - 12V > 12V
• Input battery voltage - 8V > 16VDC
• Charging current - 20A
• Lead acid charging voltage - 13.2V > 14.7V
• Lithium charging voltage - 12.6V > 14.6V
• Efficiency - 90%

12V 6 WAY FUSE BOX, FUSE & ISOLATOR

This is the central hub for the distribution of 12V power. This runs from your leisure battery via a fuse and isolator.

What makes up this part of the kit?

• 12V 6 Way blade fuse box block holder with LED indicator & fuses
• MIDI bolt in fuse holder
• Removable key medium duty 12V 200A battery power isolator

Isolator Technical Details

• 275A Continuous current
• 1000A Peak current (5 seconds)
• 10mm Terminals
• Four removable side panels for easy cable entry
• Mounting bolts and locking nuts
• Removable key for additional safety

Fuse Box Technical Details

• Built in negative bus bar
• LED function on each output that will illuminate to show any blown fuses
• Numerous labels for easy identification of outputs
• Complete with 6 fuses (2 X 5A, 2 X 10A, 2 X 15A)
• Mounting screws

12V MAIN CONTROL PANEL & BUS BAR

This is the main control panel in the van, fed from one of the outlets on the 6 way fuse box. This unit comes with a voltmeter, USB port and a 12V port. The panel has five switched fused outlets to feed the other 12v items in your van such as your lighting, water pump. fridge etc.

There is also a 5 way negative bus bar provided, so you can terminate all negatives to this point from the control panel.

What makes up this part of the kit?

• 12V Camper/Caravan 5 gang switched USB main control panel
• 5 Way terminal DC negative common bus bar

Panel Technical Details

• Pre-wired for quick fitting
• 5 gang independent switches complete with in-line fuse holders with fuses
• Dual 2.1A USB Charger
• Voltmeter
• 12V Power socket
• Blue LED

Bus Bar Technical Details

• Max - 100A 48V
• Number of screw terminals - 5
• Number of studs - 2

12V MINI PANEL

Again, powered from the 6 way fuse box, this small panel is great for installing in the bed area of your van as it doesn't take up too much space and its ideal for charging a phone or tablet.

What makes up this part of the kit?

• 12V Camper/Caravan mini panel - dual quick charge 2.4A USB & 12V socket
• Two hole mounting plate with screws


Technical Details

• Quick Charge Dual 2.4A USB Chargers
• 12V Power socket
• Fitting Screws
• Terminated cables with an in-line fuse
• Blue LED

12V QUICK CHARGE PORT

Similar to the other two units, this is also powered from the fuse box, but this one is your high powered quick charge USB C (PD) & USB A port, suitable for charging large capacity devices.

What makes up this part of the kit?

• Quick Charge 3.0 18W USB C PD port & USB A port 18W
• One hole mounting plate with screws


Technical Details

• Built in ON/OFF switch to conserve power
• USB Type A Quick Charge 3.0 Port
• USB Type C PD Port
• 5V - 3A / 9V - 2A / 12V - 1.5A
• Blue LED

240V MAINS HOOK UP

This part of the kit is available in two forms; we can either provide you with all the consumer unit parts (enclosure, breakers, cables etc.) for self-assembly by a professional electrician, or we can pre-wire the consumer unit for you in-house. With this option all that's required once installed, would be to attach the sockets and 16A hook up point. Please just select your preference from the "240V Mains Consumer Unit" option above. Please note, the pre-assembled unit is the mains consumer unit only, not the entire kit. The rest of the equipment (12V) will be in kit form and will require assembly.

This part of the kit will allow you to hook up to a standard 16A camp site site hook up and will then power the mains sockets in the van. As standard, the kit will come with two double three pin sockets (In a choice of finish), and a standard three pin socket to power the on board mains battery charger.

What makes up this part of the kit?

• IP55 Rated 8 way enclosure with earthing bar
• 30 mA Double pole RCD
• 2 X 10A Double Pole MCBs for double sockets
• 6A Double pole MCB for battery charger single socket
• 2 X 13A Metal flat double sockets or C-Line alternative
• Single white plastic socket
• 2 X Flush double socket mounting boxes or C-Line alternative
• Surface mount single socket mounting box
• Flush hook up point available in black or white
• 5M 2.5mm2 3 core flexible mains cable
• 3 X 3M 1.5mm2 3 core flexible mains cable
• 2M 6mm2 tri rated earth cable
• 4 X 20mm Glands
• Safety stickers

Technical Details

• Main input protected with double pole RCD
• Each Individual outlets protected with double pole MCBs
• Flush mounted magnetic hook up flap (Available in black or white).

SMART MAINS LEISURE BATTERY CHARGER

Victron Energy 12V 10A Blue Smart IP65 Battery Charger

The Blue Smart IP65 Charger is a professional battery charger with built-in Bluetooth.

The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.

The Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current.

Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently connected.

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.

CABLING

We will provide adequate lengths of cable to complete the installation as seen on the screen, the lengths provided are suitable for most camper installations, but if you need anymore, this is all available to buy on our website.

For use to wire both the input and output of the Orion DC-DC charger and the cabling to the 12V fuse boxes, bus bar and isolator -

• 16mm² Red Positive Hi Flex - 10M
• 16mm² Black Negative Hi Flex - 10M

For use to wire from the fuse box to your 12V accessories -

• 2.0mm² Twin core automotive thin wall cable - 1 X 30M

ADDITIONAL ITEMS

• Set of high quality battery terminals with PVC covers.
• All fuses, crimps and heatshrink needed to complete the installation
• 100 cable tie bases
• 100 cable ties

ADDITIONAL IMPORTANT INFORMATION

As with all the kits and layouts provided on our site, they serve as a guide only. All wiring and installation must be carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.

ELECTRICAL INSTALLATONS MUST BE COMPLETED BY A QUALIFIED PROFESSIONAL. WIRING SHOULD BE IN ACCORDANCE WITH THE LATEST EDITION OF THE IET REGULATONS (BS 7671).
