Victron Energy 65A Smart BatteryProtect 12/24V With Bluetooth

Skip to product information
1 of 2

Victron Energy 65A Smart BatteryProtect 12/24V With Bluetooth

Victron Energy 65A Smart BatteryProtect 12/24V With Bluetooth

Regular price £49.99
Regular price Sale price £49.99
Sale Sold out
Taxes included.

Low stock: 4 left

  • FREE DELIVERY WHEN YOU SPEND OVER £150
  • UK BASED CUSTOMER SUPPORT
  • WE'RE RATED EXCELLENT ON TRUSTPILOT
View full details
Protects the battery against excessive discharge and can be used as a system on/off switch

The 65A Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The on/off input can be used as a system on/off switch.

12/24 V auto ranging

The Smart BatteryProtect automatically detects system voltage one time only.

Bluetooth: programming made easy

When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual). If required, Bluetooth can be disabled.

Instant Readout

VictronConnect can display the most important data of the Smart BatteryProtect on the Device List page without the need to pair with the product. This includes visual notifications of warnings, alarms, and errors that enable diagnostics at a glance.

A special setting for Li-ion batteries

In this mode the BatteryProtect can be controlled by the VE.Bus BMS. Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See

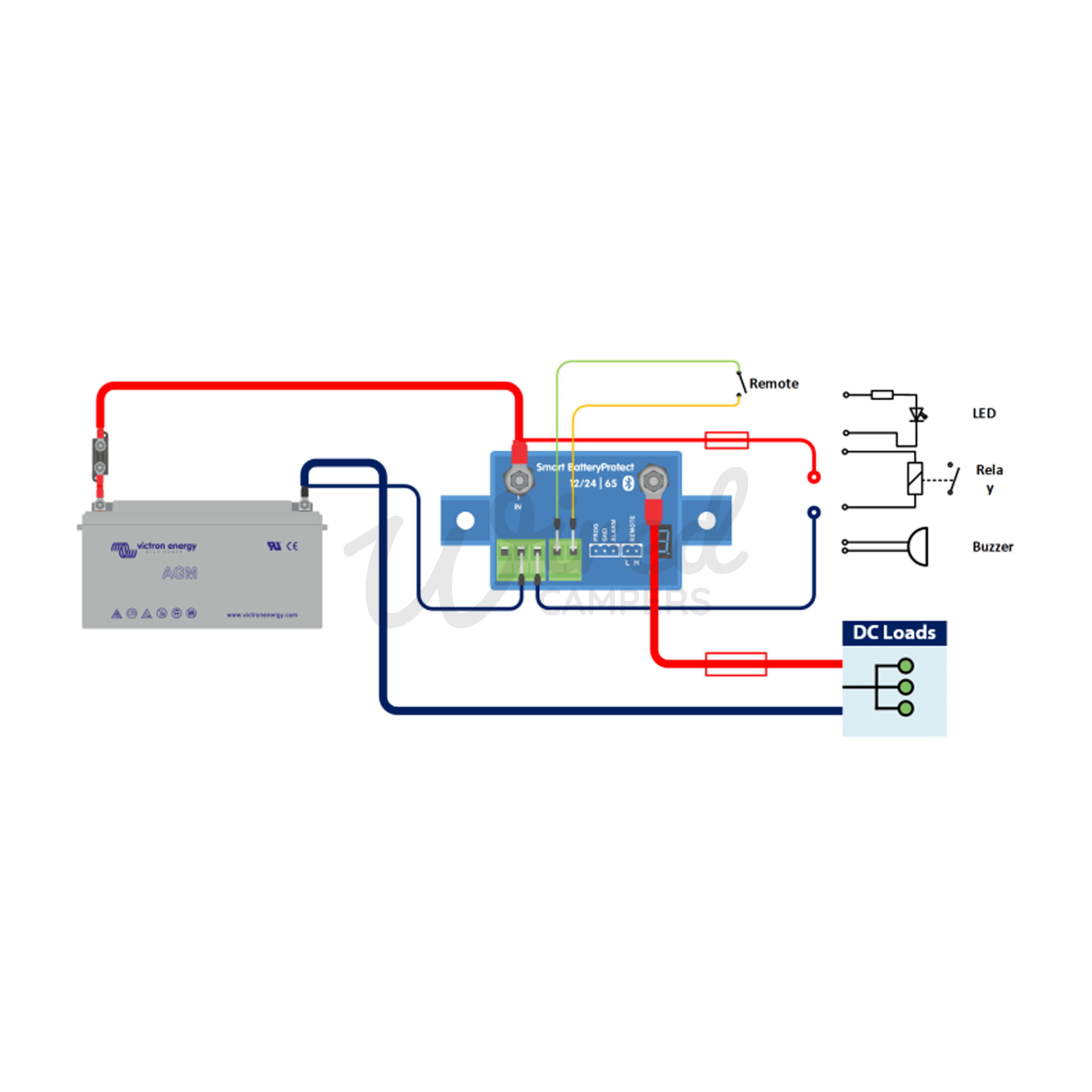

connection diagram in the manual.

Ultra-low current consumption

This is important in case of Li-ion batteries, especially after low voltage shutdown.

Over voltage protection

To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16.3V respectively 32.6V.

Ignition proof

No relays but MOSFET switches, and therefore no sparks.

Delayed alarm output

The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay.

Delayed load disconnect and delayed reconnect

The load will be disconnected 90 seconds after the battery voltage drops below the preset level. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

TECHNICAL SPECIFICATON

Maximum continuous load current* - 65A
Peak current (during 30 seconds) - 250A
Operating voltage range - 6-35V
Current consumption BLE on - 1,4 mA When off or low voltage shutdown: 0,9 mA
Current consumption BLE off - 1,2 mA When off or low voltage shutdown: 0,7 mA
Connection - M6
Dimensions (hxwxd) - 48 x 55 x 106 mm
Part Number - BPR065022000
GTIN - 8719076041238

* The BatteryProtect is not designed for reverse currents from charging sources
