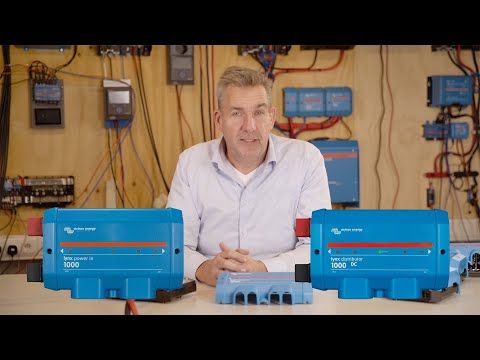

The Victron Lynx 1000A Distributor is a modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system.
The Lynx Distributor ships together with a 40cm RJ10 cable. This cable provides power to the Lynx Distributor and is also used to transmit data if connected to a Lynx Smart BMS.
The Lynx Distributor is designed to hold MEGA fuses. These need to be purchased separately.
TECHNICAL SPECIFICATION
- Voltage range - 9 - 60Vdc
- Supported system voltages - 12, 24 or 48V
- Reverse polarity protection - Yes (1)
- Current rating - 1000Adc continuous
- Power consumption (2) - Maximum 100mA (with all LEDs illuminated)
- Terminals - M8
- Enclosure dimensions - (hxlxw) 290 x 170 x 80MM
- Unit weight - 2.2 kg
(1) The RJ10 cable connection is not protected against reverse polarity
(2) Powered from Lynx Shunt VE.Can or Lynx Smart BMS
