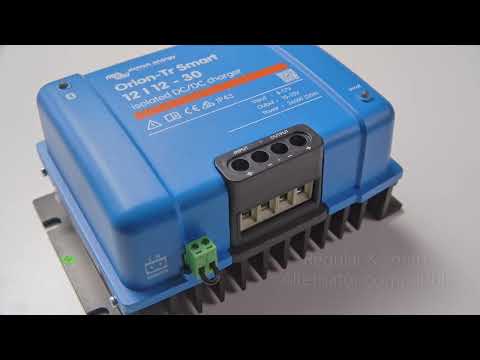

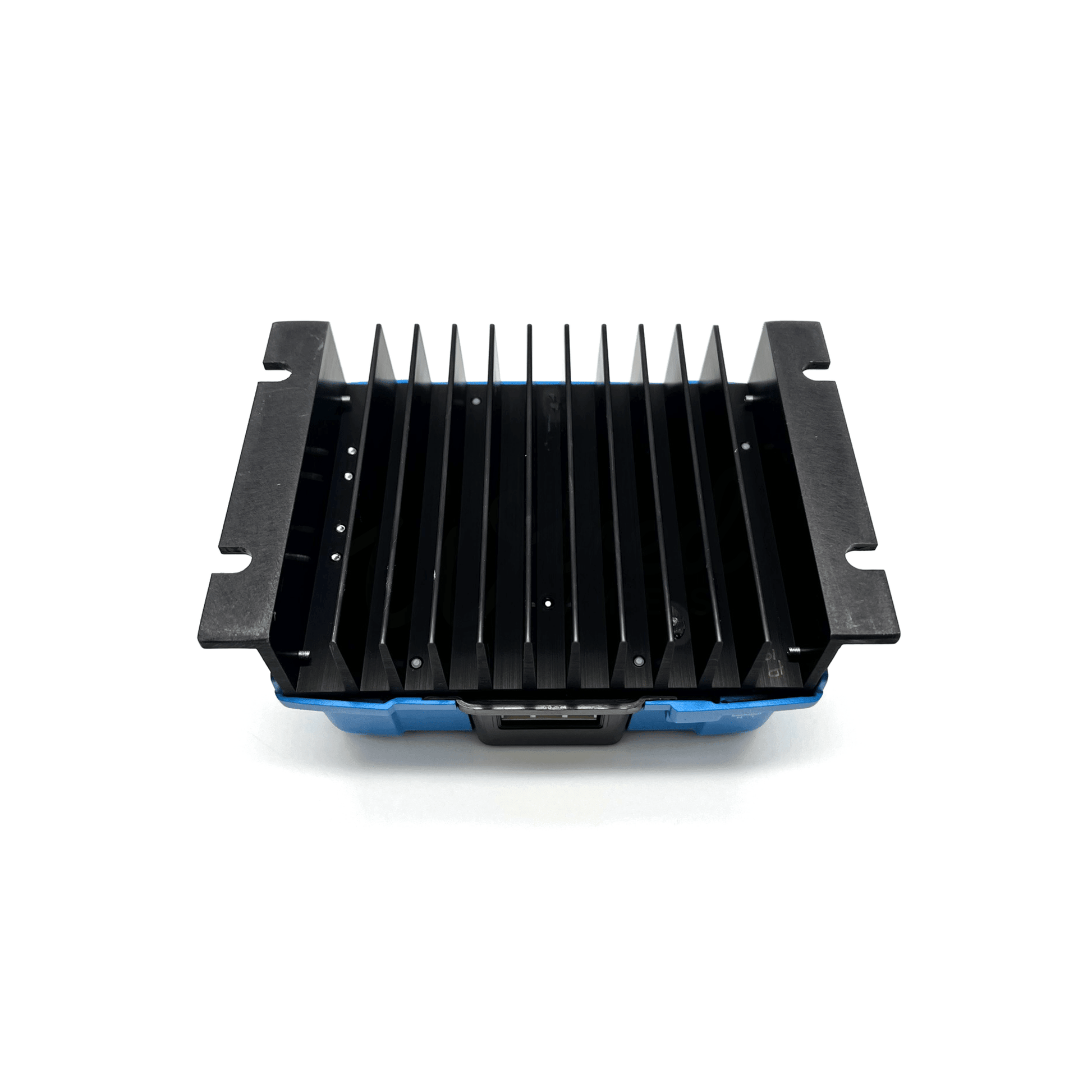

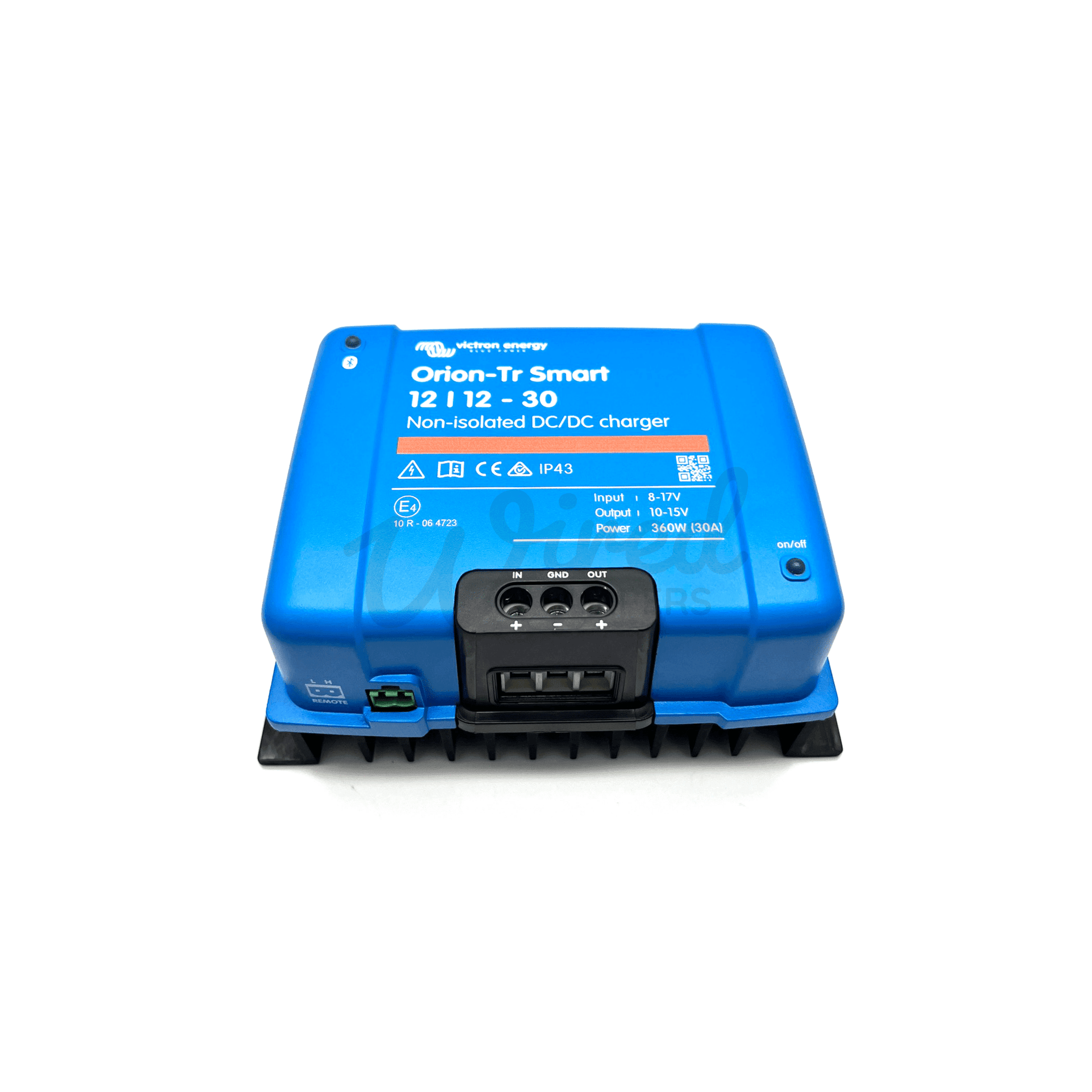

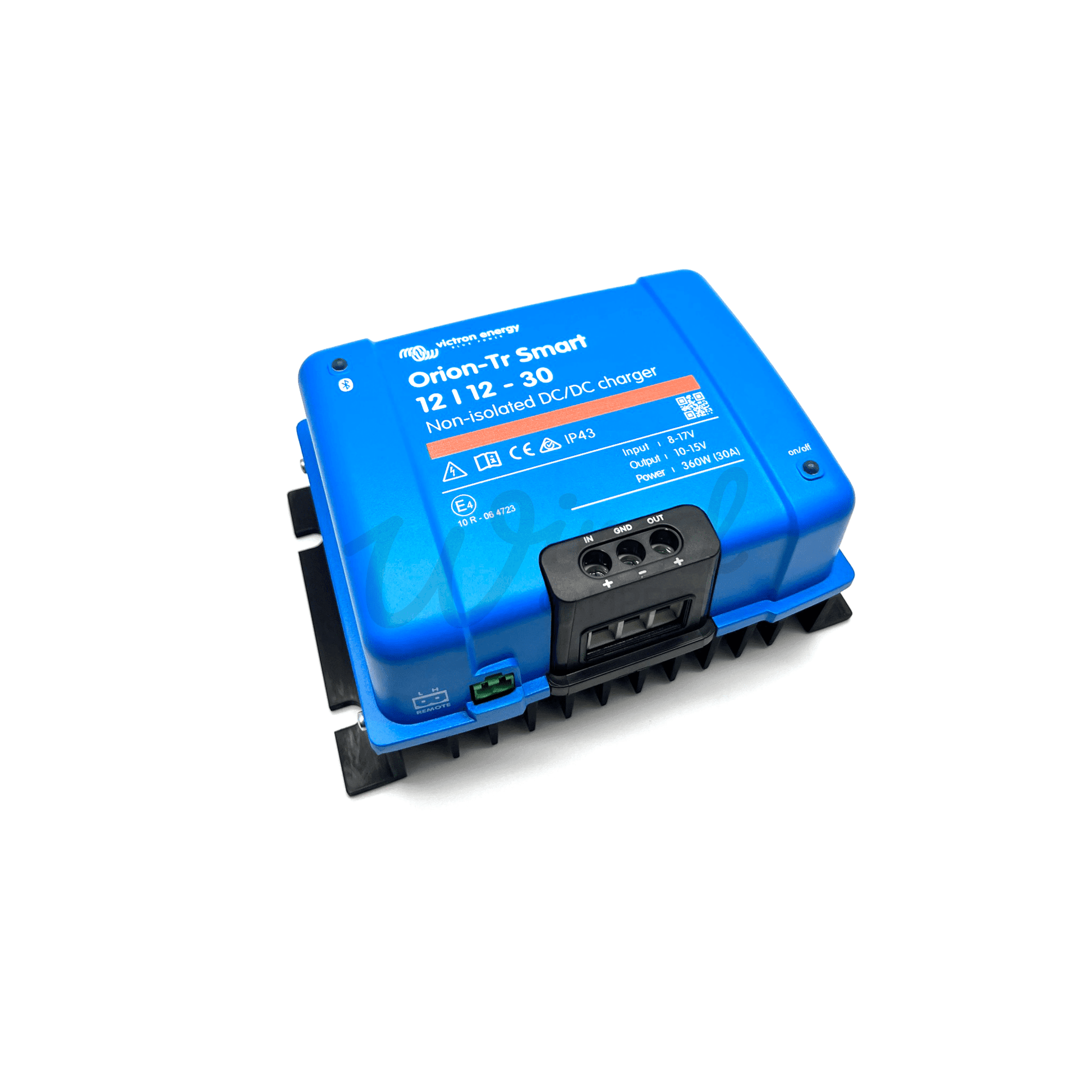

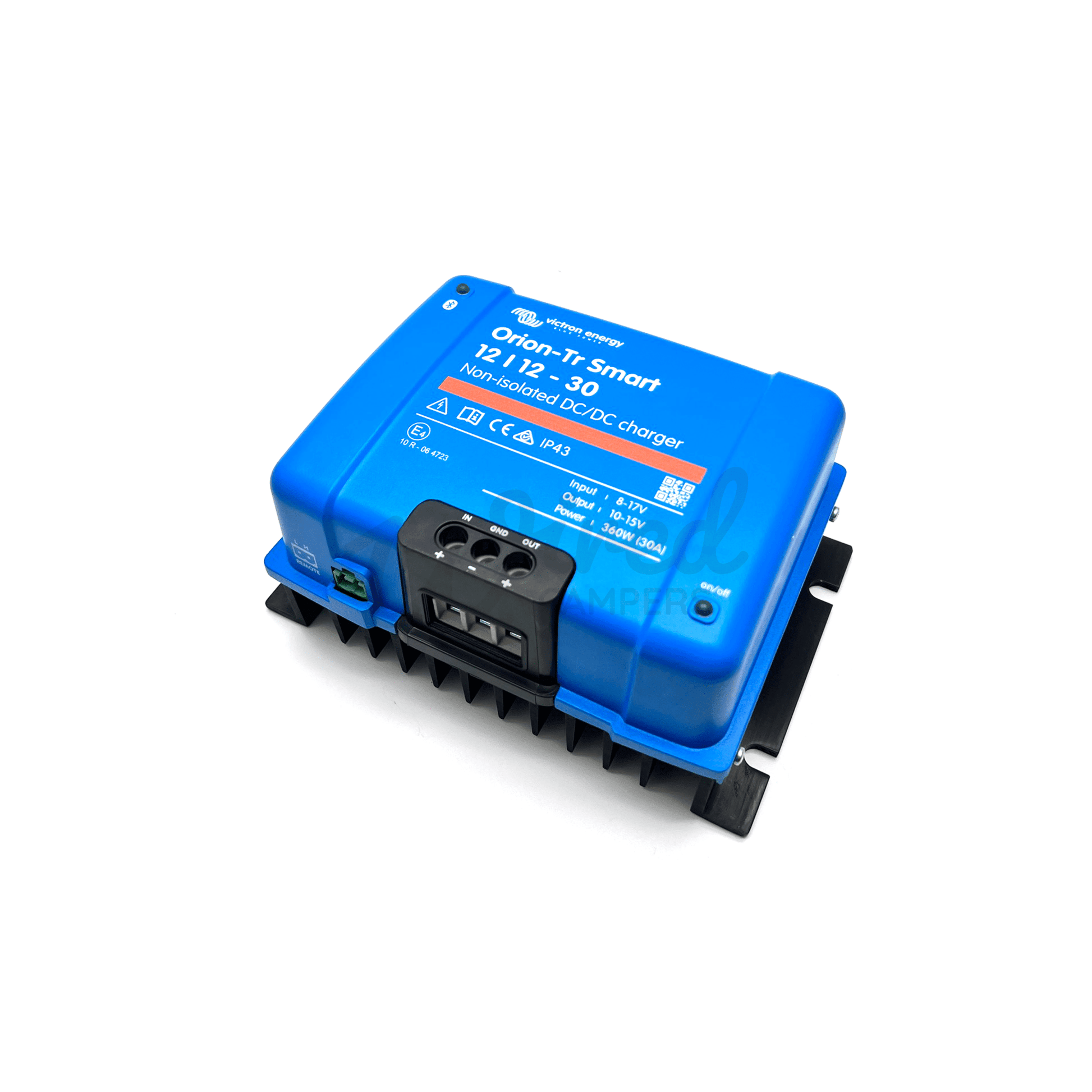

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles where the alternator and the starter battery are used to charge the leisure battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.
The Orion-Tr Smart charger is suitable for both lead acid and lithium batteries.
- Input voltage range - 10-17V
- Under voltage shut down - 7V
- Under voltage restart - 7.5V
- Nominal output voltage - 12.2V
- Output voltage adjust range - 10-15V
- Cont. output current at nominal output voltage and 40 °C - 30A
- Cont. output power at 25 °C - 430W
- Cont. output power at 40 °C - 360W
- Efficiency - 87%
- No load input current - < 80 mA
- Standby current - Less than 1mA
- DC connection - Screw terminals
- Maximum cable cross-section - 16 mm² AWG6
- Weight - 1.8 kg
- Dimensions - 130 x 186 x 80 mm
- Part Number - ORI121236140
- GTIN - 8719076048954
